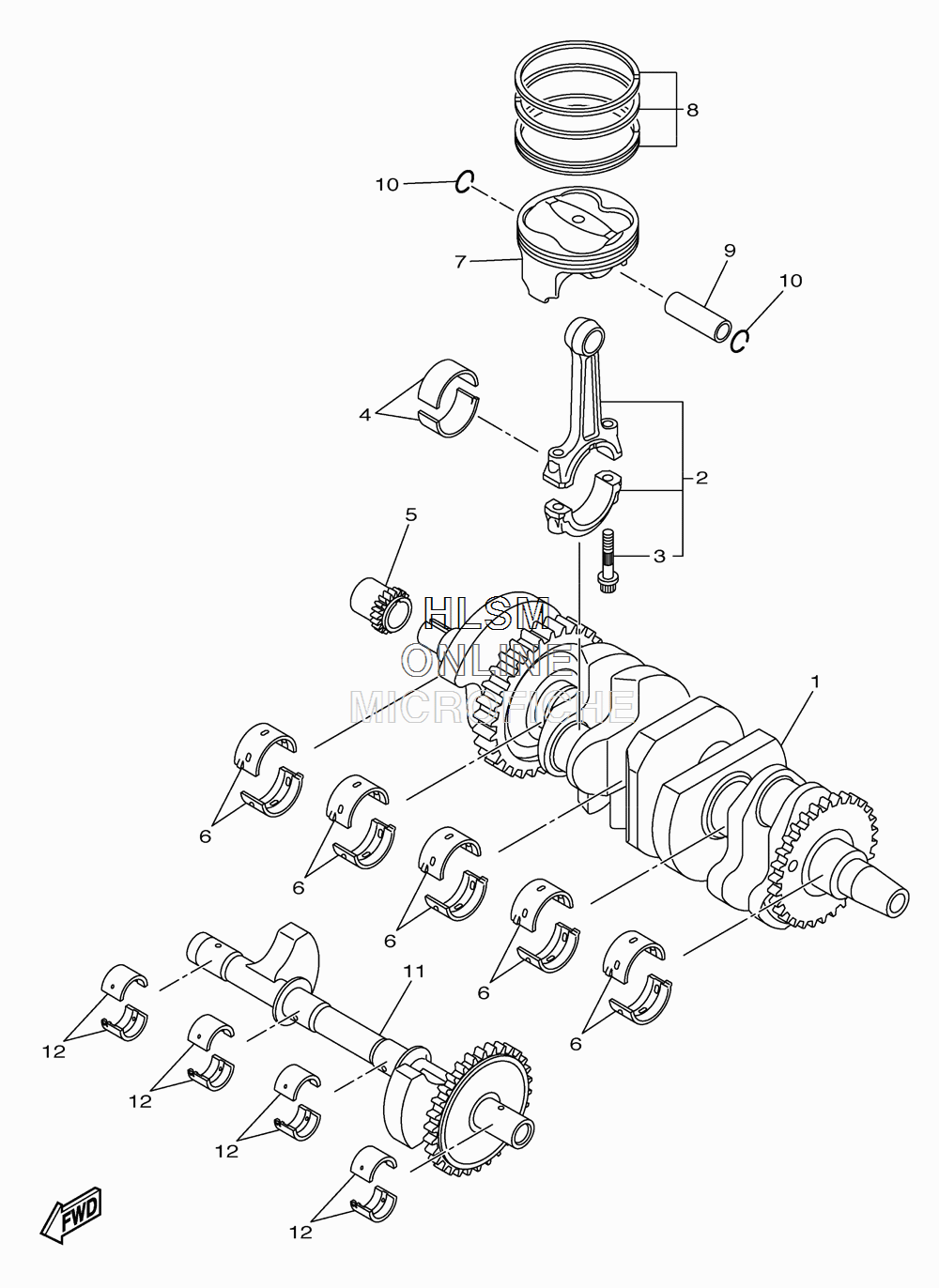

CRANKSHAFT - PISTON для Yamaha YZF-R1 - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    14B-11400-00-00 CRANKSHAFT ASSY
    CRANKSHAFT ASSY
  • 2
    14B-11650-00-00 CONNECTING ROD ASSY
    CONNECTING ROD ASSY
  • 3
    5VY-11654-01-00 ...BOLT, CONNECTING ROD
    ...BOLT, CONNECTING ROD
  • 4
    14B-11656-20-00 PLANE BEARING, CONNECTING ROD (PINK-BROWN)
    PLANE BEARING, CONNECTING ROD (PINK-BROWN)
  • 4
    14B-11656-30-00 PLANE BEARING, CONNECTING ROD (PINK-GREEN)
    PLANE BEARING, CONNECTING ROD (PINK-GREEN)
  • 4
    14B-11656-00-00 PLANE BEARING, CONNECTING ROD (PINK-BLUE)
    PLANE BEARING, CONNECTING ROD (PINK-BLUE)
  • 4
    14B-11656-10-00 PLANE BEARING, CONNECTING ROD (PINK-BLACK)
    PLANE BEARING, CONNECTING ROD (PINK-BLACK)
  • 5
    14B-11549-00-00 SPROCKET, CAM CHAIN
    SPROCKET, CAM CHAIN
  • 6
    14B-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)
    PLANE BEARING, CRANKSHAFT 1 (BLACK)
  • 6
    14B-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)
    PLANE BEARING, CRANKSHAFT 1 (BROWN)
  • 6
    14B-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)
    PLANE BEARING, CRANKSHAFT 1 (GREEN)
  • 6
    14B-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (YELLOW)
    PLANE BEARING, CRANKSHAFT 1 (YELLOW)
  • 6
    14B-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (BLUE)
    PLANE BEARING, CRANKSHAFT 1 (BLUE)
  • 7
    14B-11631-00-00 PISTON (STD)
    PISTON (STD)
  • 8
    14B-11603-00-00 PISTON RING SET (STD)
    PISTON RING SET (STD)
  • 9
    4C8-11633-00-00 PIN, PISTON
    PIN, PISTON
  • 10
    93450-18157-00 CIRCLIP
    CIRCLIP
  • 11
    14B-11500-00-00 BALANCER ASSY
    BALANCER ASSY
  • 12
    14B-11413-20-00 PLANE BEARING, BALANCE WEIGHT (BROWN)
    PLANE BEARING, BALANCE WEIGHT (BROWN)
  • 12
    14B-11413-A0-00 PLANE BEARING, BALANCE WEIGHT (WHITE)
    PLANE BEARING, BALANCE WEIGHT (WHITE)
  • 12
    14B-11413-00-00 PLANE BEARING, BALANCE WEIGHT (BLUE)
    PLANE BEARING, BALANCE WEIGHT (BLUE)
  • 12
    14B-11413-30-00 PLANE BEARING, BALANCE WEIGHT (GREEN)
    PLANE BEARING, BALANCE WEIGHT (GREEN)
  • 12
    14B-11413-40-00 PLANE BEARING, BALANCE WEIGHT (YELLOW)
    PLANE BEARING, BALANCE WEIGHT (YELLOW)
  • 12
    14B-11413-50-00 PLANE BEARING, BALANCE WEIGHT (PINK)
    PLANE BEARING, BALANCE WEIGHT (PINK)
  • 12
    14B-11413-10-00 PLANE BEARING, BALANCE WEIGHT (BLACK)
    PLANE BEARING, BALANCE WEIGHT (BLACK)
