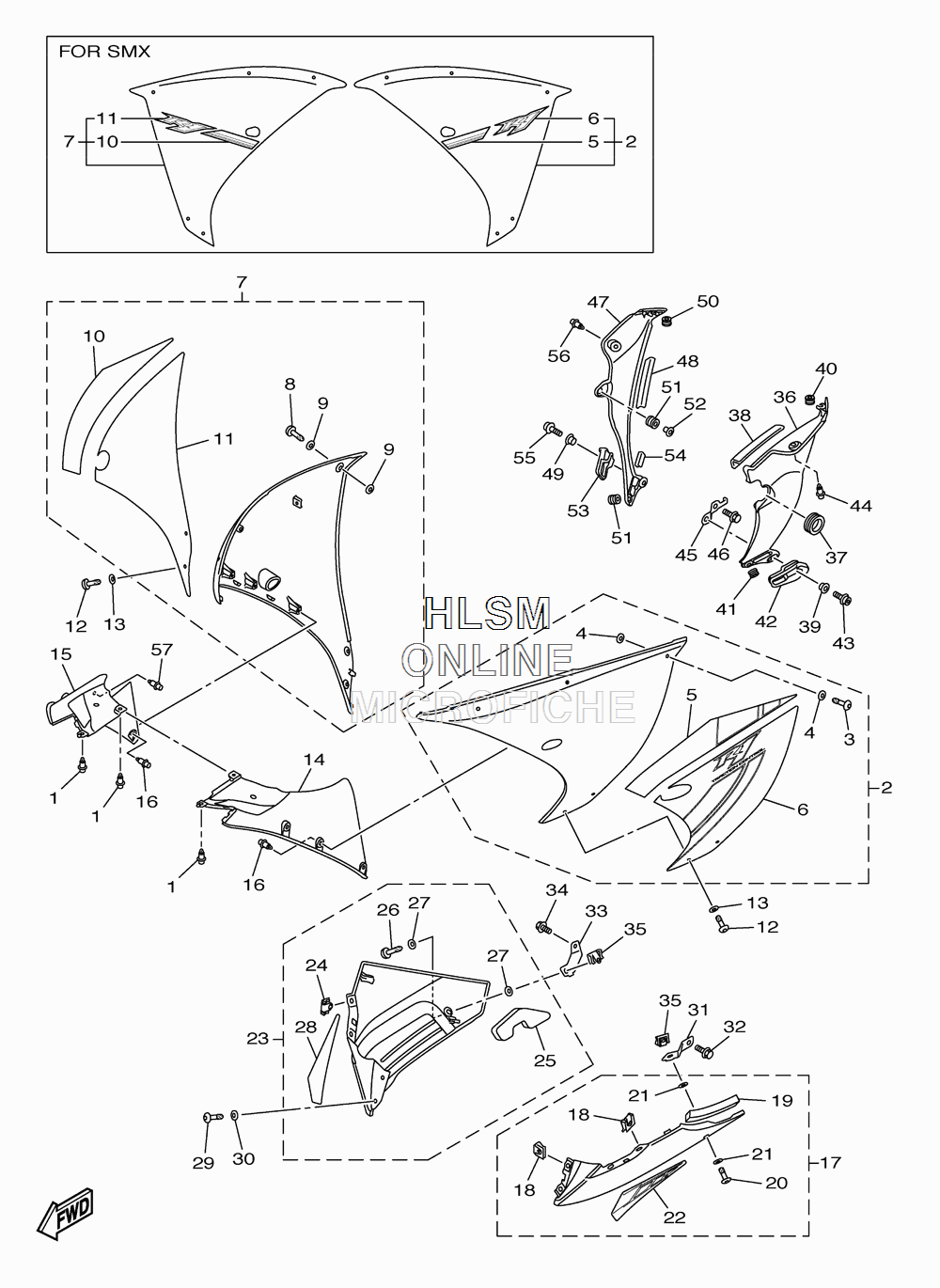

COWLING 2 для Yamaha YZF-R1 - 2012 года выпуска
-
№АртикулНазвание
-
190269-06008-00 RIVETRIVET
-
214B-W283U-V0-P3 PANEL ASSY 1 (SMX FOR DEEP PURPLISH BLUE METALLIC C)PANEL ASSY 1 (SMX FOR DEEP PURPLISH BLUE METALLIC C)
-
214B-W283U-W0-P3 PANEL ASSY 1 (BLACK METALLIC X)PANEL ASSY 1 (BLACK METALLIC X)
-
314B-28386-00-00 ...HEAD...HEAD
-
42TK-21757-00-00 ...WASHER, SPECIAL 1...WASHER, SPECIAL 1
-
51KB-28391-30-00 ...GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)...GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
-
51KB-28391-50-00 ...GRAPHIC 1 (BLACK METALLIC X)...GRAPHIC 1 (BLACK METALLIC X)
-
614B-2839B-10-00 ...EMBLEM 3D (BLACK METALLIC X)...EMBLEM 3D (BLACK METALLIC X)
-
61KB-28393-20-00 ...GRAPHIC, 3 (DEEP PURPLISH BLUE METALLIC C)...GRAPHIC, 3 (DEEP PURPLISH BLUE METALLIC C)
-
714B-W283V-V0-P3 PANEL ASSY 2 (SMX FOR DEEP PURPLISH BLUE METALLIC C)PANEL ASSY 2 (SMX FOR DEEP PURPLISH BLUE METALLIC C)
-
714B-W283V-W0-P3 PANEL ASSY 2 (BLACK METALLIC X)PANEL ASSY 2 (BLACK METALLIC X)
-
814B-28386-00-00 ...HEAD...HEAD
-
92TK-21757-00-00 ...WASHER, SPECIAL 1...WASHER, SPECIAL 1
-
101KB-28392-30-00 ...GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C)...GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C)
-
101KB-28392-50-00 ...GRAPHIC 2 (BLACK METALLIC X)...GRAPHIC 2 (BLACK METALLIC X)
-
1114B-2839B-10-00 ...EMBLEM 3D (BLACK METALLIC X)...EMBLEM 3D (BLACK METALLIC X)
-
111KB-28394-20-00 ...GRAPHIC 4 (DEEP PURPLISH BLUE METALLIC C)...GRAPHIC 4 (DEEP PURPLISH BLUE METALLIC C)
-
1214B-28386-00-00 HEADHEAD
-
1390202-06005-00 WASHER, PLATEWASHER, PLATE
-
1414B-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
1514B-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
1690269-06008-00 RIVETRIVET
-
1714B-Y2808-U0-P3 COVER ASSY, UNDER (DEEP PURPLISH BLUE METALLIC C)COVER ASSY, UNDER (DEEP PURPLISH BLUE METALLIC C)
-
1714B-Y2808-V0-P1 COVER ASSY, UNDER (BLACK MBL2 FOR METALLIC X)COVER ASSY, UNDER (BLACK MBL2 FOR METALLIC X)
-
185PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
1990520-30004-00 ...DAMPER, PLATE...DAMPER, PLATE
-
2014B-28386-00-00 ...HEAD...HEAD
-
212TK-21757-00-00 ...WASHER, SPECIAL 1...WASHER, SPECIAL 1
-
221KB-283A1-00-00 ...GRAPHIC, UNDER COVER 1 (DEEP PURPLISH BLUE METALLIC C)...GRAPHIC, UNDER COVER 1 (DEEP PURPLISH BLUE METALLIC C)
-
2314B-Y2809-U0-P3 COVER ASSY 2, UNDER (DEEP PURPLISH BLUE METALLIC C)COVER ASSY 2, UNDER (DEEP PURPLISH BLUE METALLIC C)
-
2314B-Y2809-V0-P1 COVER ASSY 2, UNDER (MBL2 FOR BLACK METALLIC X)COVER ASSY 2, UNDER (MBL2 FOR BLACK METALLIC X)
-
245PW-2177L-00-00 ...PLATE, SPRING...PLATE, SPRING
-
2514B-28371-10-00 ...DAMPER...DAMPER
-
2614B-28386-00-00 ...HEAD...HEAD
-
272TK-21757-00-00 ...WASHER, SPECIAL 1...WASHER, SPECIAL 1
-
281KB-283A2-00-00 ...GRAPHIC, UNDER COVER 2 (DEEP PURPLISH BLUE METALLIC C)...GRAPHIC, UNDER COVER 2 (DEEP PURPLISH BLUE METALLIC C)
-
2914B-28386-00-00 HEADHEAD
-
3090202-06005-00 WASHER, PLATEWASHER, PLATE
-
3114B-2836A-00-00 BRACKET 1BRACKET 1
-
3295802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3314B-2836E-00-00 BRACKET 2BRACKET 2
-
3490105-06174-00 BOLT, FLANGEBOLT, FLANGE
-
355PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
3614B-2836M-10-P2 PANEL, INNER 3 (DEEP PURPLISH BLUE METALLIC C)PANEL, INNER 3 (DEEP PURPLISH BLUE METALLIC C)
-
3614B-2836M-10-P0 PANEL, INNER 3 (MBL2 FOR BLACK METALLIC X)PANEL, INNER 3 (MBL2 FOR BLACK METALLIC X)
-
3714B-2836T-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
3890520-05011-00 DAMPER, PLATEDAMPER, PLATE
-
3990560-08251-00 SPACERSPACER
-
4090480-08006-00 GROMMETGROMMET
-
4190480-12596-00 GROMMETGROMMET
-
4214B-283C1-00-00 STOPPER, RUBBER 1STOPPER, RUBBER 1
-
4390110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4490269-07077-00 RIVETRIVET
-
4514B-28321-00-00 STAY 1STAY 1
-
4695802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4714B-2836N-10-P2 PANEL, INNER 4 (DEEP PURPLISH BLUE METALLIC C)PANEL, INNER 4 (DEEP PURPLISH BLUE METALLIC C)
-
4714B-2836N-10-P0 PANEL, INNER 4 (MBL2 FOR BLACK METALLIC X)PANEL, INNER 4 (MBL2 FOR BLACK METALLIC X)
-
483NU-21732-00-00 SEAL 1SEAL 1
-
4990560-08251-00 SPACERSPACER
-
5090480-08006-00 GROMMETGROMMET
-
5190480-12596-00 GROMMETGROMMET
-
5290387-065J6-00 COLLARCOLLAR
-
5314B-283C2-00-00 STOPPER, RUBBER 2STOPPER, RUBBER 2
-
544B5-2847F-00-00 SEAL 5SEAL 5
-
5590110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5690269-07077-00 RIVETRIVET
-
5790269-06008-00 RIVETRIVET
