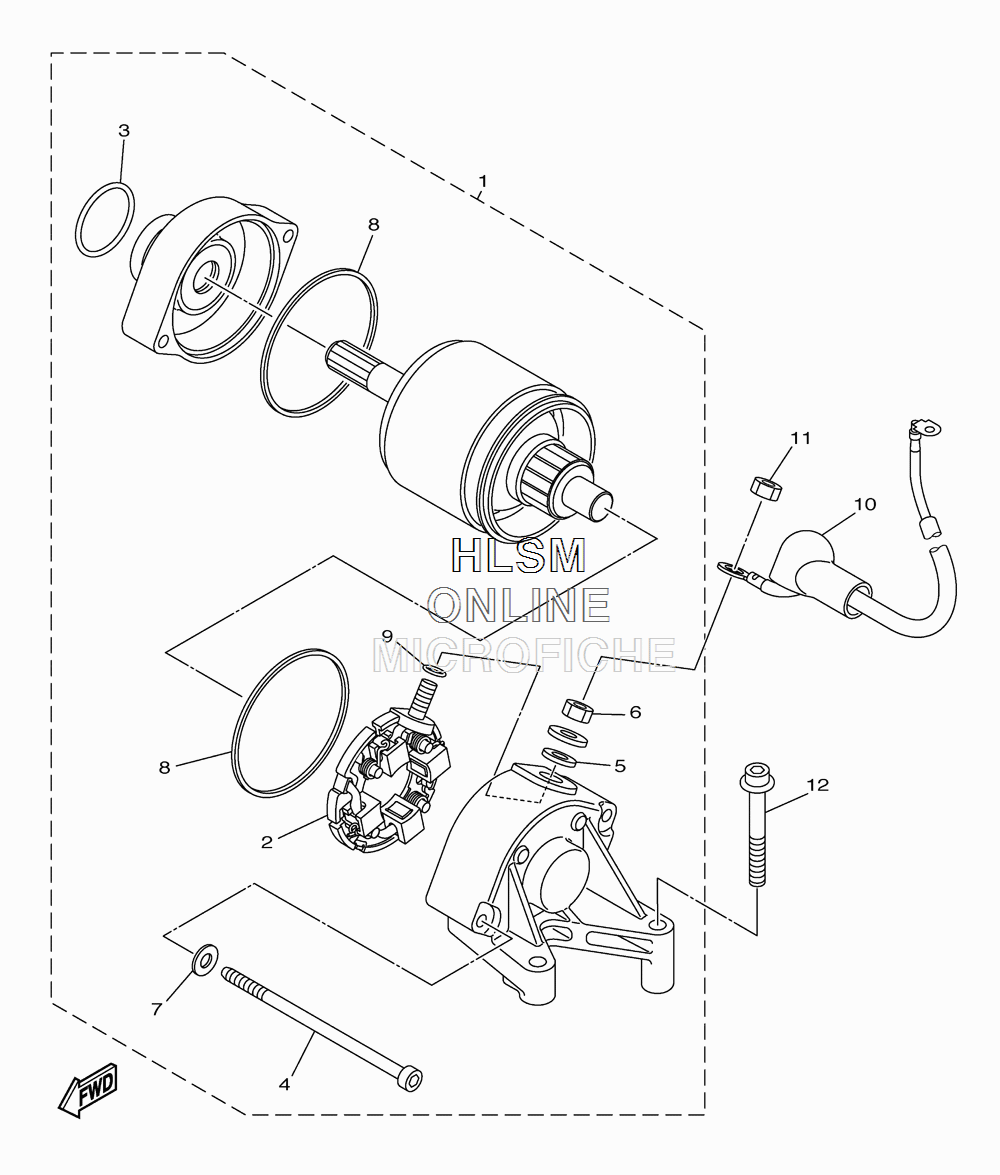

STARTING MOTOR для Yamaha YZF-R1 - 2012 года выпуска`
-
№АртикулНазвание
-
114B-81890-00-00 MOTOR ASSYMOTOR ASSY
-
24C8-81801-01-00 ...BRUSH SET...BRUSH SET
-
393210-25711-00 ...O-RING...O-RING
-
44C8-81846-00-00 ...SCREW...SCREW
-
58FA-8181L-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
695302-06700-00 ...NUT...NUT
-
790201-05021-00 ...WASHER, PLATE...WASHER, PLATE
-
84C8-81861-00-00 ...GASKET...GASKET
-
993210-06001-00 ...O-RING...O-RING
-
1014B-8183G-10-00 CORD COMP.CORD COMP.
-
1195302-06700-00 NUTNUT
-
1290109-06016-00 BOLTBOLT
