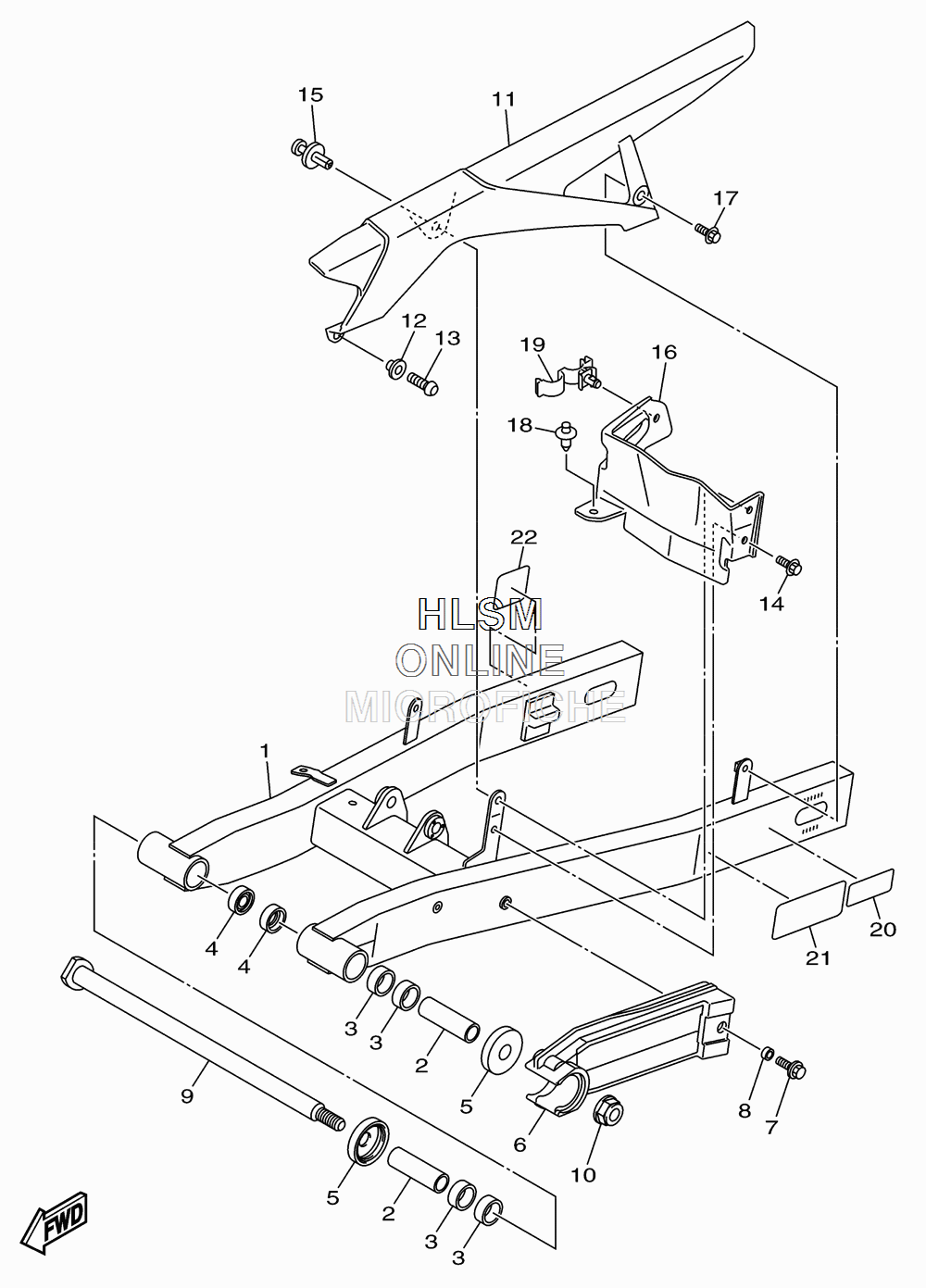

SUSPENSION - REAR ARM для Yamaha FZ6R - 2010 года выпуска`
![](/wa-data/public/shop/sheme/yamaha/streetbike/797ec571-5a6d-4b70-bddb-e58d6e7c7761.gif)
-
№АртикулНазвание
-
120S-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
25VK-22124-00-00 BUSH 2BUSH 2
-
393317-22262-00 BEARINGBEARING
-
493106-22019-00 OIL SEAL (DC 22-28-8)OIL SEAL (DC 22-28-8)
-
520S-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
620S-22151-00-00 SEAL, GUARDSEAL, GUARD
-
790119-06147-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890387-06133-00 COLLARCOLLAR
-
91AE-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
1090185-14012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1120S-22311-00-00 CASE, CHAINCASE, CHAIN
-
1290387-06130-00 COLLARCOLLAR
-
1392012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1490119-06154-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590269-07076-00 RIVETRIVET
-
1620S-22325-01-00 COVER, DUSTCOVER, DUST
-
1790119-06154-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890269-08001-00 RIVETRIVET
-
1990464-16011-00 CLAMPCLAMP
-
203XW-21668-A1-00 LABEL, TIRELABEL, TIRE
-
2136P-2176P-10-00 PLATE, EPA (CALIFORNIA)PLATE, EPA (CALIFORNIA)
-
2136P-2179W-10-00 PLATE, EPA (NON CALIFORNIA)PLATE, EPA (NON CALIFORNIA)
-
225SL-21686-00-00 PLATE, ROUTING 2 (CALIFORNIA)PLATE, ROUTING 2 (CALIFORNIA)
