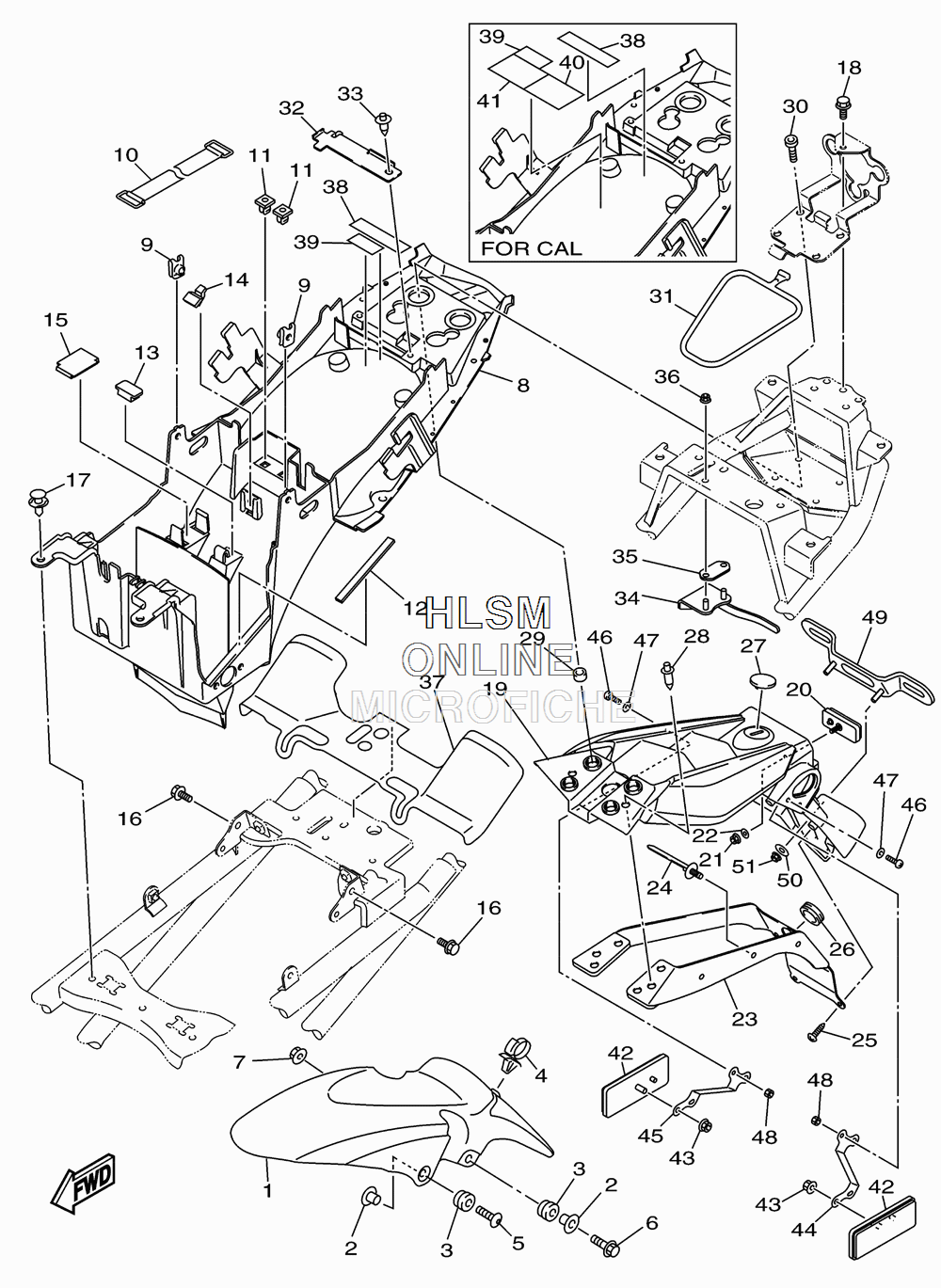

FENDER - FRONT / REAR для Yamaha FZ6R - 2010 года выпуска`
-
№АртикулНазвание
-
15VX-21511-A0-P1 FENDER, FRONTFENDER, FRONT
-
290387-065J6-00 COLLARCOLLAR
-
390480-12072-00 GROMMETGROMMET
-
490464-18002-00 CLAMPCLAMP
-
590110-06202-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
695024-06030-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
795702-06500-00 NUT, FLANGENUT, FLANGE
-
820S-21611-00-00 FENDER, REARFENDER, REAR
-
990183-06053-00 NUT, SPRING (4ES)NUT, SPRING (4ES)
-
10120-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1190480-07003-00 GROMMETGROMMET
-
125JW-2174X-00-00 DAMPERDAMPER
-
1320S-216A2-00-00 SEAL, 2SEAL, 2
-
1420S-216A3-00-00 SEAL, 3SEAL, 3
-
1520S-216A4-00-00 SEAL, 4SEAL, 4
-
1695802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1790269-07010-00 RIVETRIVET
-
1895822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1920S-21629-10-00 GUARD, MUDGUARD, MUD
-
203Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2195602-05100-00 NUT, UNUT, U
-
2290201-05043-00 WASHER, PLATEWASHER, PLATE
-
2320S-21688-01-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
2490464-31001-00 CLAMPCLAMP
-
2590160-05012-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
2690480-23345-00 GROMMETGROMMET
-
274KN-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
2890269-07001-00 RIVETRIVET
-
2990387-06232-00 COLLARCOLLAR
-
3091312-08025-00 BOLTBOLT
-
313YX-21376-00-00 BAND, TOOLBAND, TOOL
-
3220S-21677-01-00 PLATE,FITTING 3PLATE,FITTING 3
-
3390269-06008-00 RIVETRIVET
-
3436P-2115J-00-00 BRACKET, HELMET HANGERBRACKET, HELMET HANGER
-
3520S-24792-00-00 PLATEPLATE
-
3695702-06500-00 NUT, FLANGENUT, FLANGE
-
3736P-21639-00-00 DAMPER 2DAMPER 2
-
383JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
393TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
405VX-21684-00-00 PLATE, ROUTING (CALIF. ONLY)PLATE, ROUTING (CALIF. ONLY)
-
415VX-2178A-00-00 LABEL (EXCEPT CALIF.)LABEL (EXCEPT CALIF.)
-
423Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
4395602-05200-00 NUT,U FLANGENUT,U FLANGE
-
4436P-2164F-00-00 STAY 1STAY 1
-
4536P-2164G-00-00 STAY 2STAY 2
-
4698502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4792902-04600-00 WASHER, PLATEWASHER, PLATE
-
4895602-04100-00 NUT,U (6E8)NUT,U (6E8)
-
495MT-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
5090201-06088-00 WASHER, PLATEWASHER, PLATE
-
5195602-06100-00 NUT, UNUT, U
