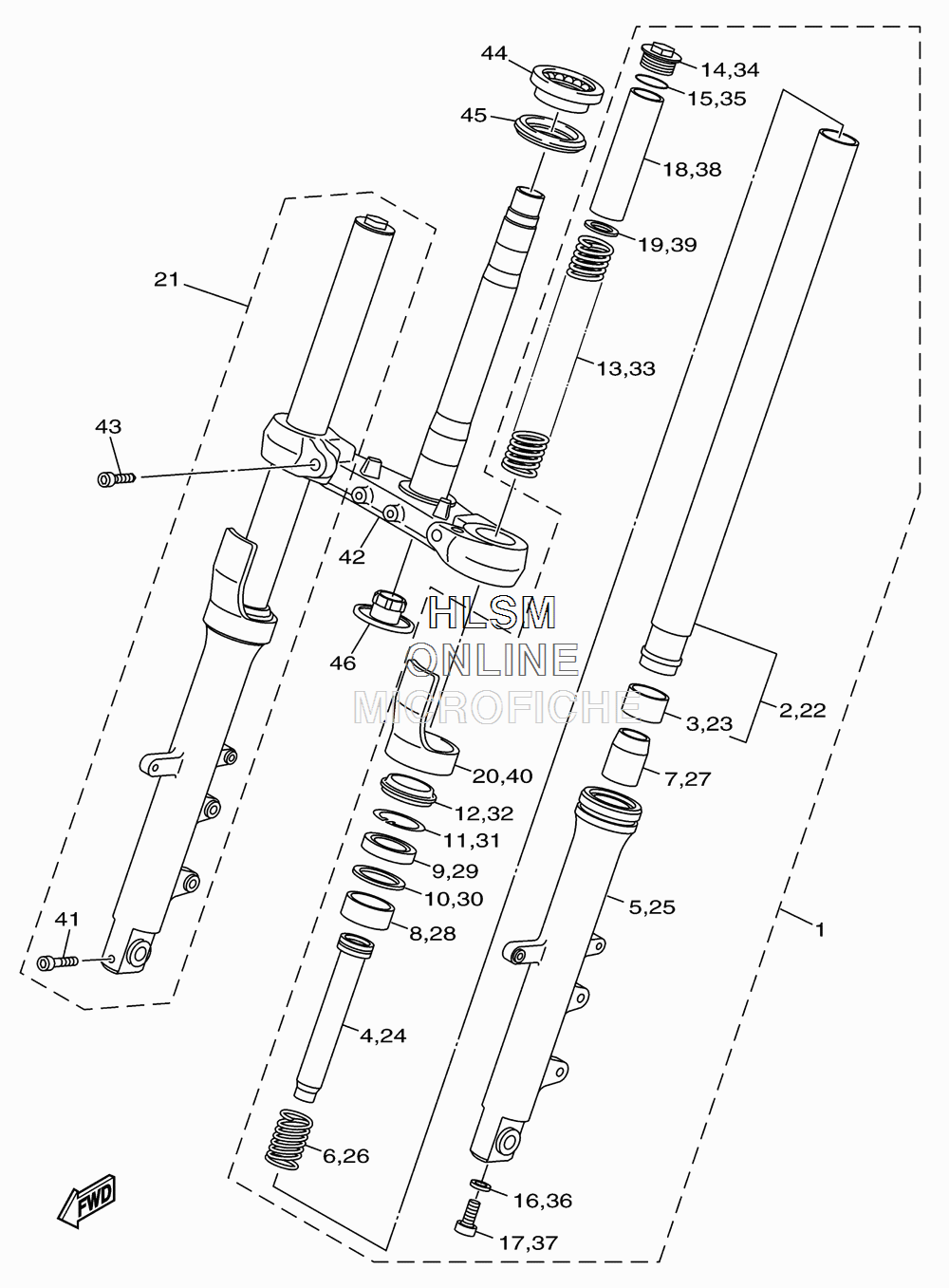

SUSPENSION - FRONT FORK для Yamaha FZ6R - 2010 года выпуска
-
№АртикулНазвание
-
120S-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
220S-23110-00-00 INNER TUBE COMP.1INNER TUBE COMP.1
-
33VD-23135-10-00 METAL, SLIDE 2METAL, SLIDE 2
-
420S-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
520S-23126-00-00 TUBE, OUTER (LEFT)TUBE, OUTER (LEFT)
-
63VD-23151-00-00 SPRING, REBOUNDSPRING, REBOUND
-
75VU-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
83VD-23125-10-00 METAL, SLIDE 1METAL, SLIDE 1
-
95VU-23145-00-00 OIL SEALOIL SEAL
-
103VD-23115-00-00 GUIDE, COVER UPPERGUIDE, COVER UPPER
-
113VD-23156-00-00 RING, SNAPRING, SNAP
-
123VD-23144-00-00 SEAL, DUSTSEAL, DUST
-
1320S-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
145VU-2311H-00-00 FORK BOLTFORK BOLT
-
1593210-35N02-00 O-RINGO-RING
-
1690430-10171-00 GASKETGASKET
-
1790110-10N52-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
185VU-23118-00-00 SPACERSPACER
-
195VU-23142-00-00 SEAT, SPRING UPPERSEAT, SPRING UPPER
-
204TX-2331G-00-00 COVERCOVER
-
2120S-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
2220S-23110-00-00 INNER TUBE COMP.1INNER TUBE COMP.1
-
233VD-23135-10-00 METAL, SLIDE 2METAL, SLIDE 2
-
2420S-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
2520S-23136-00-00 TUBE, OUTER (RIGHT)TUBE, OUTER (RIGHT)
-
263VD-23151-00-00 SPRING, REBOUNDSPRING, REBOUND
-
275VU-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
283VD-23125-10-00 METAL, SLIDE 1METAL, SLIDE 1
-
295VU-23145-00-00 OIL SEALOIL SEAL
-
303VD-23115-00-00 GUIDE, COVER UPPERGUIDE, COVER UPPER
-
313VD-23156-00-00 RING, SNAPRING, SNAP
-
323VD-23144-00-00 SEAL, DUSTSEAL, DUST
-
3320S-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
345VU-2311H-00-00 FORK BOLTFORK BOLT
-
3593210-35N02-00 O-RINGO-RING
-
3690430-10171-00 GASKETGASKET
-
3790110-10N52-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
385VU-23118-00-00 SPACERSPACER
-
395VU-23142-00-00 SEAT, SPRING UPPERSEAT, SPRING UPPER
-
404TX-2331G-00-00 COVERCOVER
-
4191314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4220S-23340-10-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4391312-10025-00 BOLTBOLT
-
4493399-99932-00 BEARINGBEARING
-
453FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
464KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
