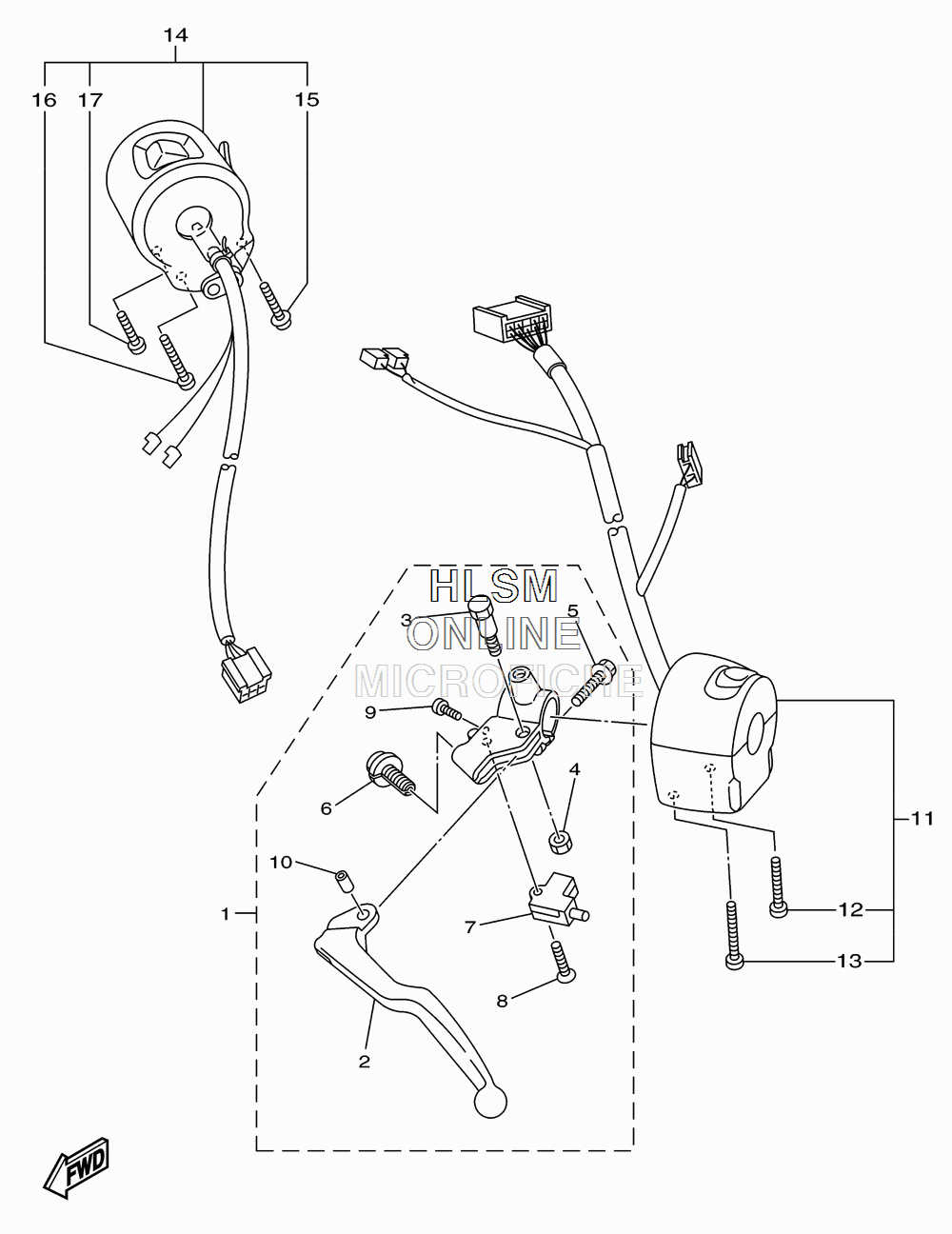

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha FZ6R - 2010 года выпуска`
-
№АртикулНазвание
-
15VX-82910-01-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
25EB-83912-03-00 LEVER 1LEVER 1
-
34XV-83945-00-00 BOLT, LEVERBOLT, LEVER
-
495607-06100-00 NUT, UNUT, U
-
595027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
65LV-83951-00-00 BOLT, CABLE ADJUSTINGBOLT, CABLE ADJUSTING
-
73YX-82917-01-00 SWITCHSWITCH
-
898704-03020-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
998507-04010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
105JJ-83913-00-00 COLLAR, LEVER 1COLLAR, LEVER 1
-
1136P-83963-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1298507-05030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1398507-05045-00 SCREW, PAN HEADSCREW, PAN HEAD
-
145VX-83975-01-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1597607-05255-00 SCREW,WITH WASHERSCREW,WITH WASHER
-
1698507-05045-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1798507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
