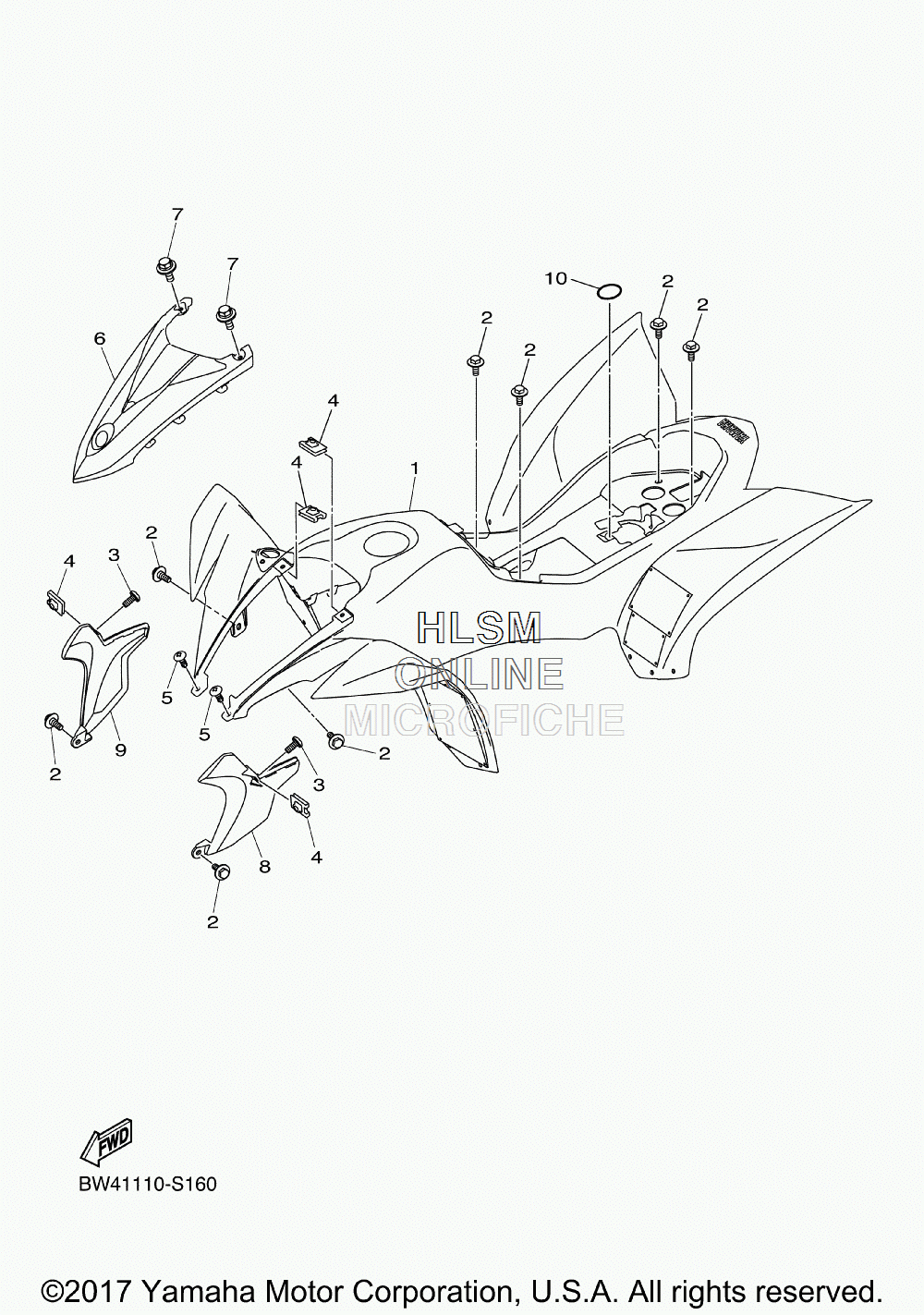

FENDERS - FRONT AND REAR для Yamaha YFZ50 - 2018 года выпуска`
-
№АртикулНазвание
-
1BW4-F1500-00-00 FRONT FENDER ASSYFRONT FENDER ASSY
-
2BD3-F1632-10-00 BOLT 2BOLT 2
-
3BW4-F1632-00-00 BOLT 2BOLT 2
-
4BD3-F4149-10-00 NUTNUT
-
5BW4-H4726-00-00 SCREWSCREW
-
6BW4-F3391-00-00 PANEL, FRONTPANEL, FRONT
-
7BD3-F3356-10-00 BOLT 2BOLT 2
-
8BW4-F1731-00-00 COVER, SIDE 3COVER, SIDE 3
-
9BW4-F1741-00-00 COVER, SIDE 4COVER, SIDE 4
-
10BD3-F4648-00-00 O-RINGO-RING
