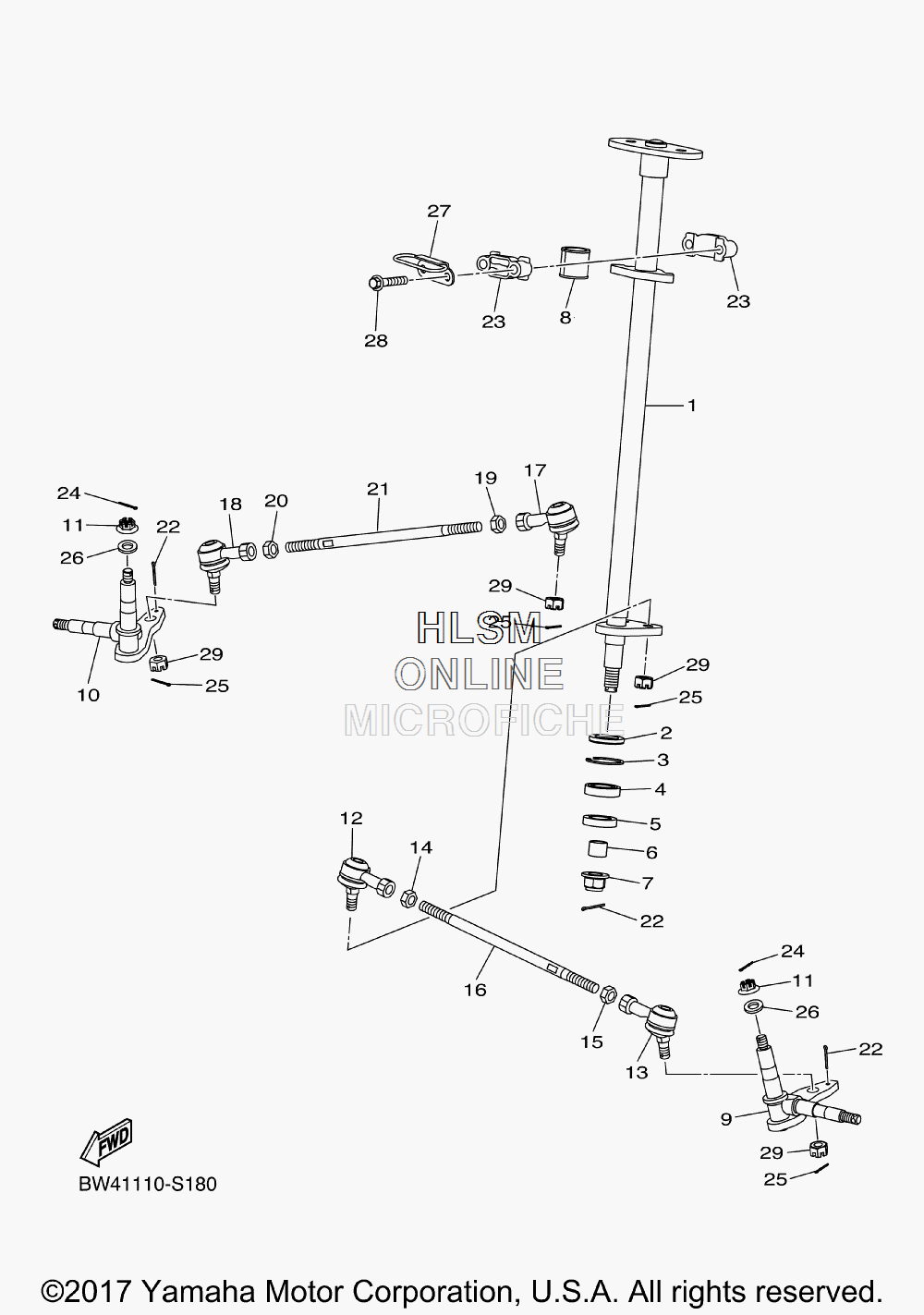

STEERING для Yamaha YFZ50 - 2018 года выпуска
-
№АртикулНазвание
-
1BW4-F3813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
2BW4-F3844-00-00 SEALSEAL
-
3BW4-F384N-00-00 CLIP, RINGCLIP, RING
-
4BW4-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
5BW4-F38B1-00-00 SEAL 2SEAL 2
-
6BD3-F5117-10-00 SPACER, BEARINGSPACER, BEARING
-
7BD3-F1535-10-00 NUT 1NUT 1
-
8BD3-F3818-00-00 COVER, STEERINGCOVER, STEERING
-
9BW4-F3511-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
10BW4-F3521-00-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
11BD3-F3877-10-00 NUTNUT
-
12BW4-F3845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
13BW4-F3841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
14BD3-F1791-10-00 NUTNUT
-
15BD3-F1829-10-00 NUTNUT
-
16BW4-F3831-00-00 ROD, TIEROD, TIE
-
17BW4-F3845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
18BW4-F3841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
19BD3-F1791-10-00 NUTNUT
-
20BD3-F1829-10-00 NUTNUT
-
21BW4-F3831-00-00 ROD, TIEROD, TIE
-
22BD3-F112N-10-00 PINPIN
-
23BD3-F3872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
24BD3-F146E-10-00 PIN 2PIN 2
-
25BD3-F4374-10-00 PINPIN
-
26BD3-F2246-00-00 WASHER 4WASHER 4
-
27BW4-F3868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
28BW4-F4177-00-00 BOLT 2BOLT 2
-
29BD3-F3856-10-00 NUTNUT
