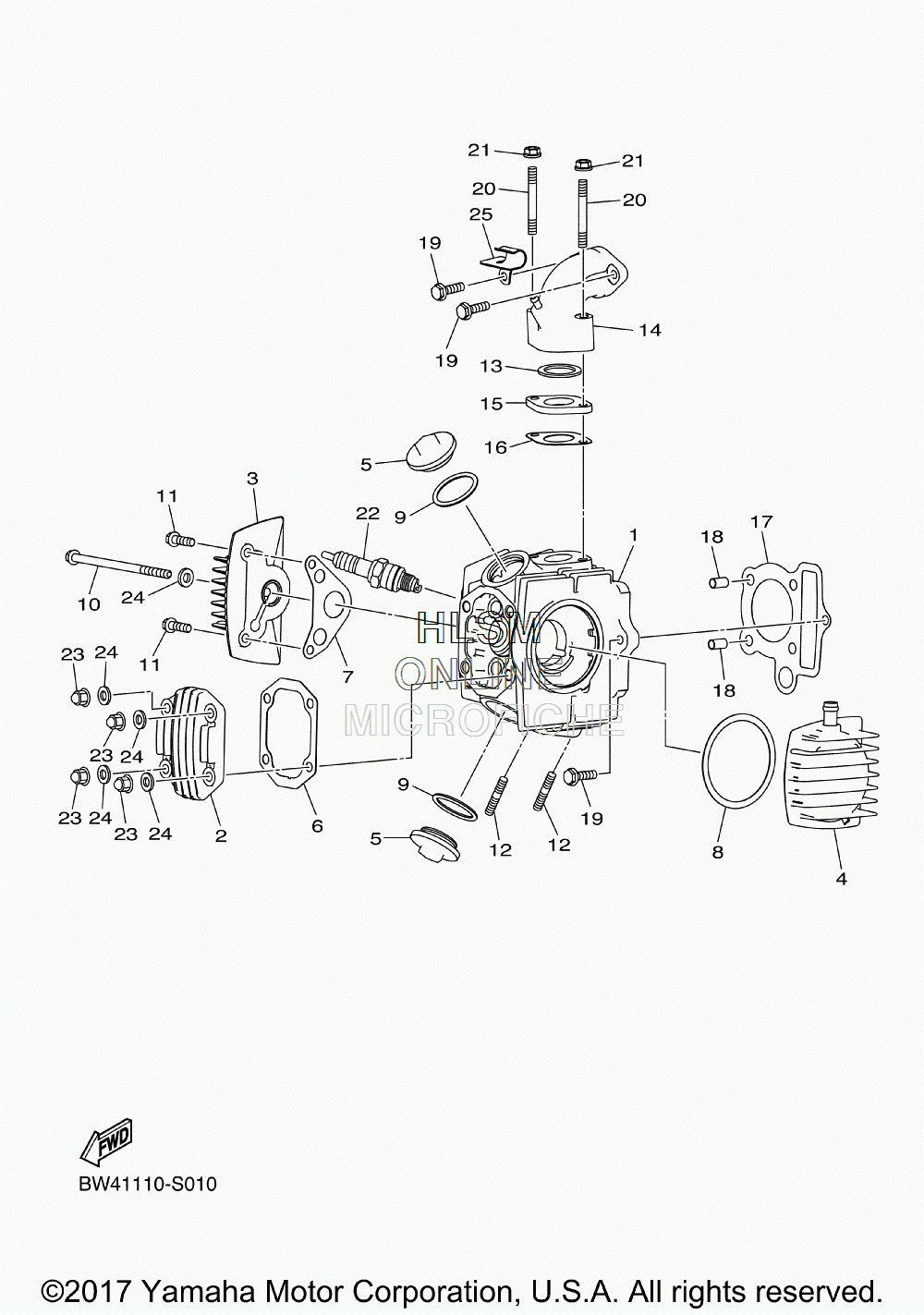

CYLINDER HEAD для Yamaha YFZ50 - 2018 года выпуска
-
№АртикулНазвание
-
1BW4-E1103-00-00 CYLINDER HEAD ASSY 2CYLINDER HEAD ASSY 2
-
2BD3-E1192-00-00 COVER, CYLINDER HEAD 2COVER, CYLINDER HEAD 2
-
3BD3-E112E-00-00 COVER, CYLINDER HEAD 3COVER, CYLINDER HEAD 3
-
4BD3-E1190-10-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
5BD3-E1186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
6BD3-E1193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
7BD3-E1194-00-00 GASKET, HEAD COVER 2GASKET, HEAD COVER 2
-
8BD3-E1169-00-00 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
9BD3-E119B-00-00 O-RINGO-RING
-
10BD3-E2615-10-00 BOLTBOLT
-
11BD3-E2623-10-00 BOLTBOLT
-
12BW4-E1179-00-00 BOLT, STUDBOLT, STUD
-
13BD3-E119A-00-00 O-RINGO-RING
-
14BW4-E3586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
15BW4-E4271-00-00 INSULATORINSULATOR
-
16BW4-E3556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
17BW4-E1181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
18BD3-E3516-00-00 PIN, DOWELPIN, DOWEL
-
19BD3-E2157-10-00 BOLTBOLT
-
20BD3-E1391-10-00 BOLT, STUD 1BOLT, STUD 1
-
21BD3-F1494-10-00 NUTNUT
-
22CR6-HSA00-00-00 PLUG SPARK (NGK CR6HSA)PLUG SPARK (NGK CR6HSA)
-
23BD3-E4439-10-00 NUTNUT
-
24BD3-E3318-00-00 WASHERWASHER
-
25BW4-E5689-00-00 RETAINERRETAINER
