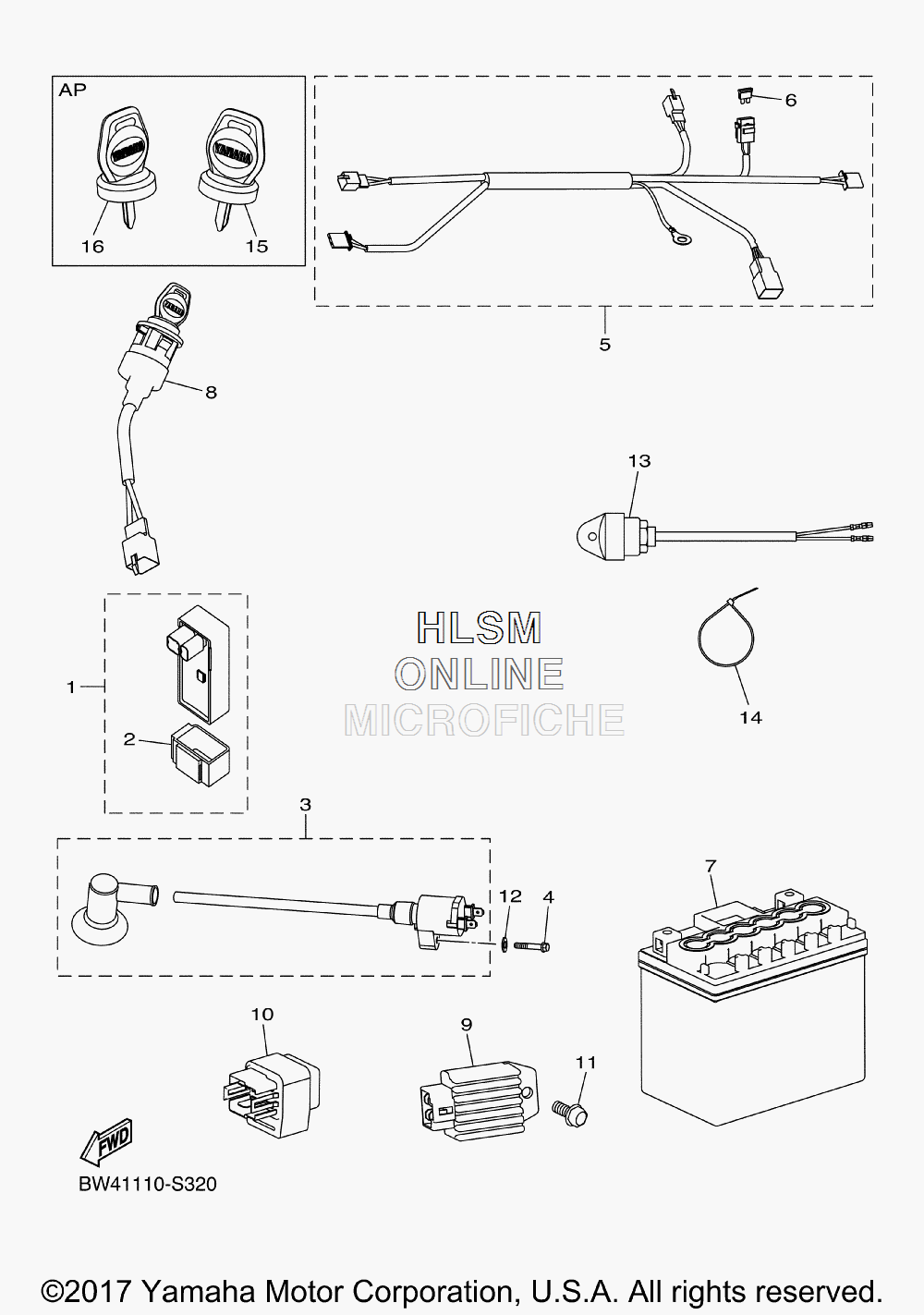

ELECTRICAL для Yamaha YFZ50 - 2018 года выпуска
-
№АртикулНазвание
-
1BW4-H5504-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
2BD3-H5546-00-00 ...BAND...BAND
-
3BW4-H2320-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
4BD3-F2241-10-00 BOLT 1BOLT 1
-
5BW4-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
6BD3-H2151-00-00 ...FUSE...FUSE
-
7BD3-H2100-00-00 BATTERY ASSY (GTX5L-BS)BATTERY ASSY (GTX5L-BS)
-
8BW4-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
9BD3-H1960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
10BD3-H1940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
11BD3-E2228-10-00 BOLTBOLT
-
12BD3-F3456-10-00 WASHERWASHER
-
13BW4-H2550-00-00 ENGINE STOP SWITCH ASSYENGINE STOP SWITCH ASSY
-
14BW4-H2544-00-00 CLAMPCLAMP
-
15BD3-HA8L1-00-00 BLANK KEY 1 (OPT)BLANK KEY 1 (OPT)
-
16BD3-HA8L2-00-00 BLANK KEY 2 (OPT)BLANK KEY 2 (OPT)
