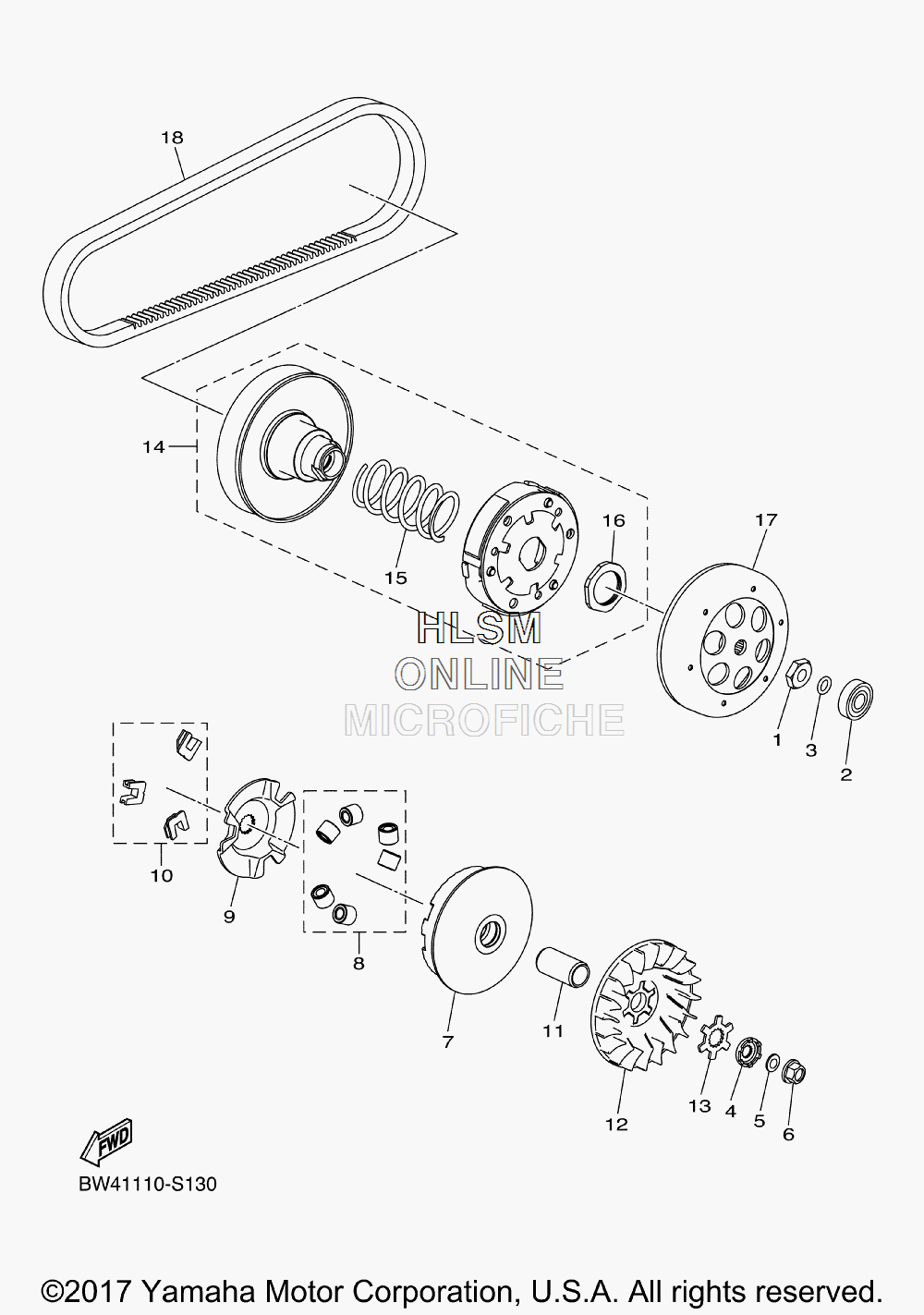

CLUTCH для Yamaha YFZ50 - 2018 года выпуска
-
№АртикулНазвание
-
1BD3-E4594-10-00 NUTNUT
-
2BD3-E7156-00-00 BEARING 1BEARING 1
-
3BD3-E3769-00-00 O-RINGO-RING
-
4BD3-E5657-00-00 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
5BD3-F3427-00-00 WASHERWASHER
-
6BD3-F3834-10-00 NUT 2NUT 2
-
7BW4-E7621-00-00 SHEAVE, PRIMARY SLIDINGSHEAVE, PRIMARY SLIDING
-
8BW4-E7632-00-00 WEIGHTWEIGHT
-
9BW4-E7623-00-00 CAMCAM
-
10BW4-E7625-00-00 BUSHBUSH
-
11BW4-E7637-00-00 BUSHBUSH
-
12BW4-E7611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
13BW4-E7646-00-00 WASHER, LOCKWASHER, LOCK
-
14BW4-E6620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
15BW4-E7683-00-00 ...SPRING, SECONDARY...SPRING, SECONDARY
-
16BW4-E4595-00-00 ...NUT...NUT
-
17BW4-E6611-00-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
18BD3-E7641-00-00 V-BELTV-BELT
