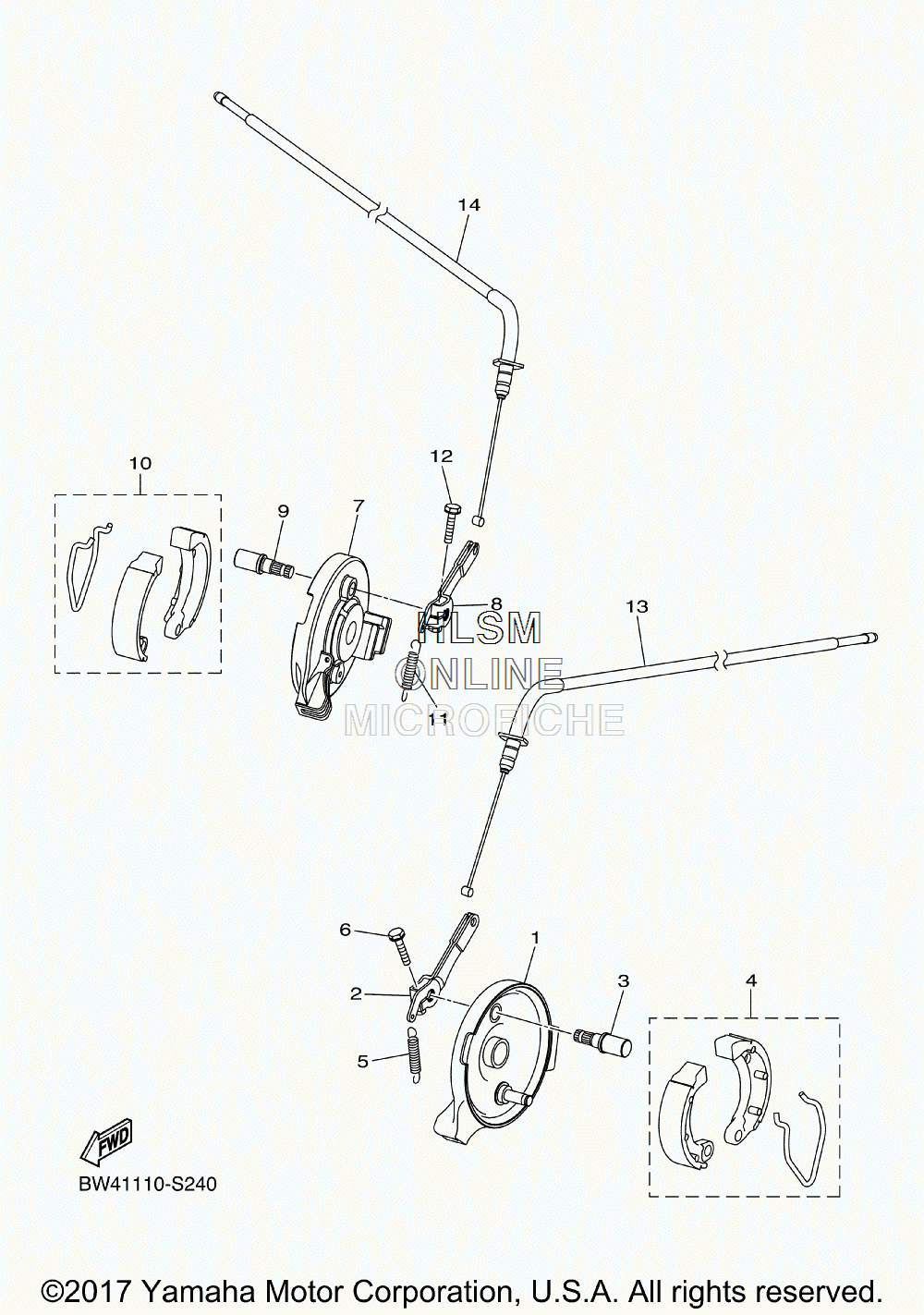

BRAKE - FRONT CALIPER для Yamaha YFZ50 - 2018 года выпуска`
-
№АртикулНазвание
-
1BD3-F5121-20-00 PLATE, BRAKE SHOEPLATE, BRAKE SHOE
-
2BD3-F5155-20-00 LEVER, CAMSHAFT 1LEVER, CAMSHAFT 1
-
3BD3-F5151-20-00 CAMSHAFTCAMSHAFT
-
4BD3-F510L-20-00 BRAKE SHOE COMP.BRAKE SHOE COMP.
-
5BD3-F5143-20-00 SPRING, RETURNSPRING, RETURN
-
6BD3-F2241-10-00 BOLT 1BOLT 1
-
7BD3-F5169-20-00 PLATE, BRAKE SHOE 2PLATE, BRAKE SHOE 2
-
8BD3-F5156-20-00 LEVER, CAMSHAFT 2LEVER, CAMSHAFT 2
-
9BD3-F5151-20-00 CAMSHAFTCAMSHAFT
-
10BD3-F510L-20-00 BRAKE SHOE COMP.BRAKE SHOE COMP.
-
11BD3-F5143-20-00 SPRING, RETURNSPRING, RETURN
-
12BD3-F2241-10-00 BOLT 1BOLT 1
-
13BW4-F6341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
14BW4-F6351-00-00 CABLE, BRAKECABLE, BRAKE
