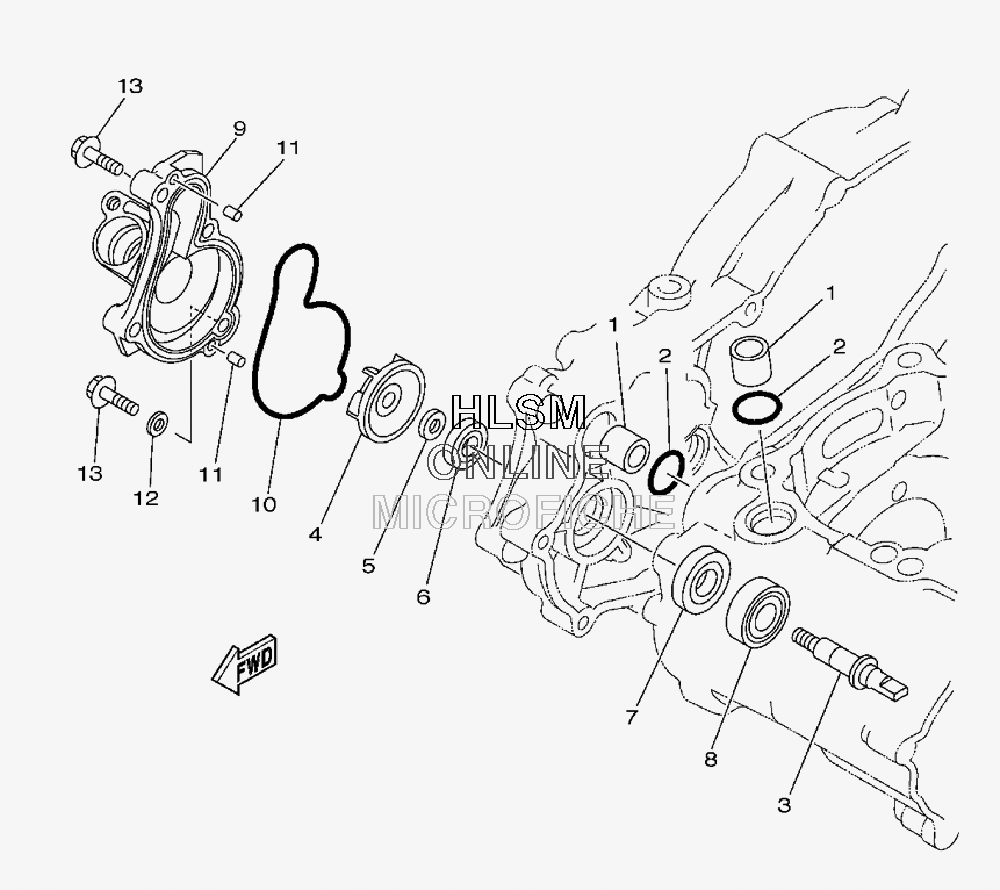

WATER PUMP ASSY для Yamaha YFZ450 - 2009 года выпуска`
-
№АртикулНазвание
-
15BE-12564-00-00 PIPE, WATERPIPE, WATER
-
293210-19758-00 O-RINGO-RING
-
35GR-12458-00-00 SHAFT, IMPELLERSHAFT, IMPELLER
-
45DJ-12451-00-00 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
590201-08512-00 WASHER, PLATEWASHER, PLATE
-
693102-11008-00 OIL SEALOIL SEAL
-
793102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
893306-00105-00 BEARINGBEARING
-
95TG-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
105TG-12439-00-00 O-RINGO-RING
-
1193604-10011-00 PIN, DOWELPIN, DOWEL
-
1290430-06014-00 GASKETGASKET
-
1395022-06030-00 BOLT, FLANGEBOLT, FLANGE
