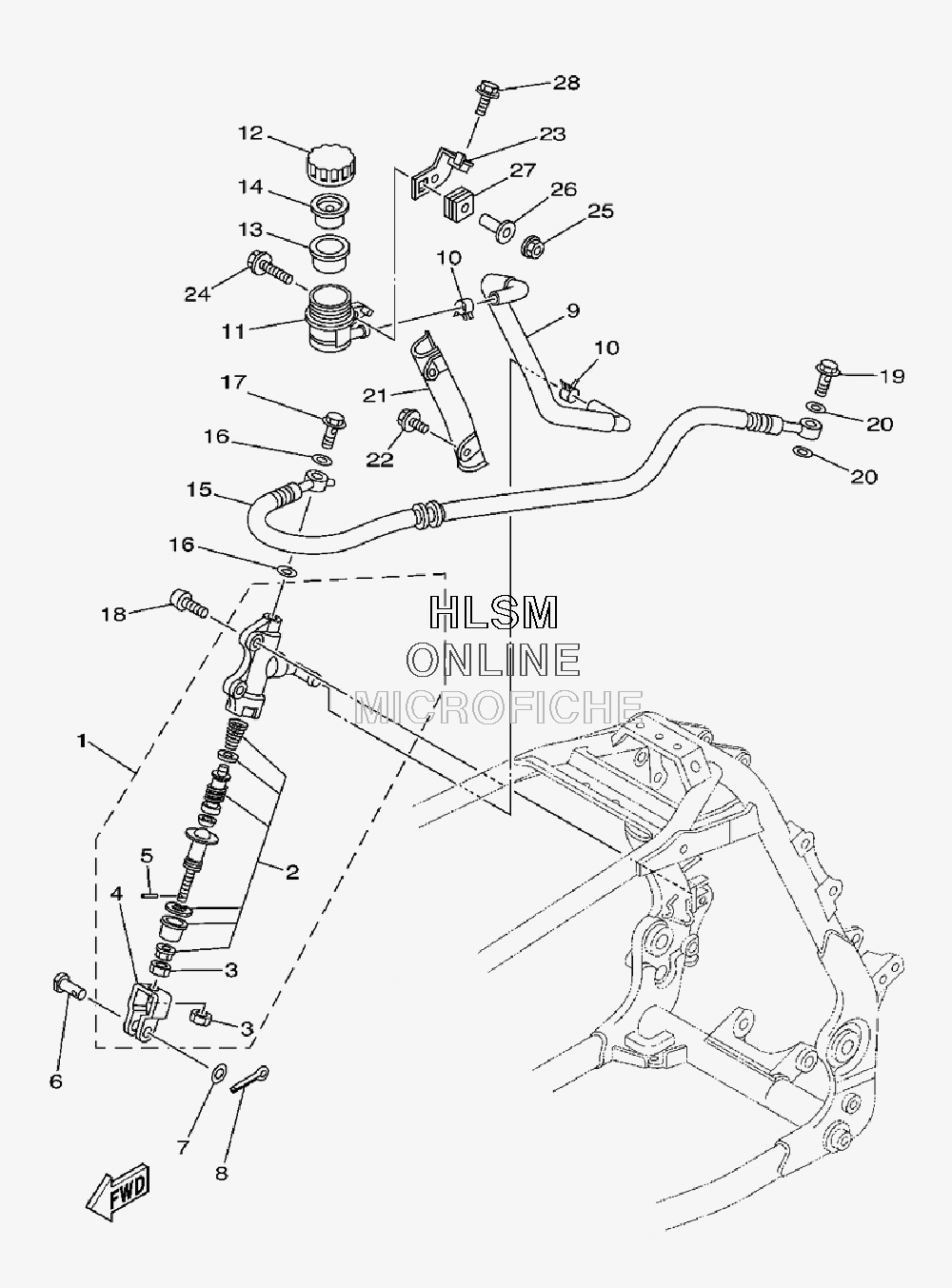

BRAKE - REAR MASTER CYLINDER для Yamaha YFZ450 - 2009 года выпуска`
-
№АртикулНазвание
-
15TG-2580E-20-00 REAR MASTER CYLINDER ASSYREAR MASTER CYLINDER ASSY
-
25TG-W0042-50-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
34SS-27218-00-00 NUTNUT
-
42YK-27222-00-00 JOINTJOINT
-
53KW-27234-00-00 PIN, BRAKE RODPIN, BRAKE ROD
-
690240-08124-00 PIN, CLEVISPIN, CLEVIS
-
790201-08083-00 WASHER, PLATEWASHER, PLATE
-
891401-16012-00 PIN, COTTERPIN, COTTER
-
95TG-25895-10-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1090467-11044-00 CLIP, SCISSORCLIP, SCISSOR
-
115TG-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
123XP-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
132VN-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
142VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
155TG-25874-30-00 HOSE, BRAKEHOSE, BRAKE
-
1690201-10118-00 WASHER, PLATEWASHER, PLATE
-
1790401-10015-00 BOLT, UNIONBOLT, UNION
-
1892012-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1990401-10015-00 BOLT, UNIONBOLT, UNION
-
2090201-10118-00 WASHER, PLATEWASHER, PLATE
-
215TG-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2295022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
235TG-21228-10-00 BRACKET, RESERVE TANKBRACKET, RESERVE TANK
-
2490105-05331-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2595602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2690387-05016-00 COLLARCOLLAR
-
2790480-10011-00 GROMMETGROMMET
-
2895802-06012-00 BOLT, FLANGEBOLT, FLANGE
