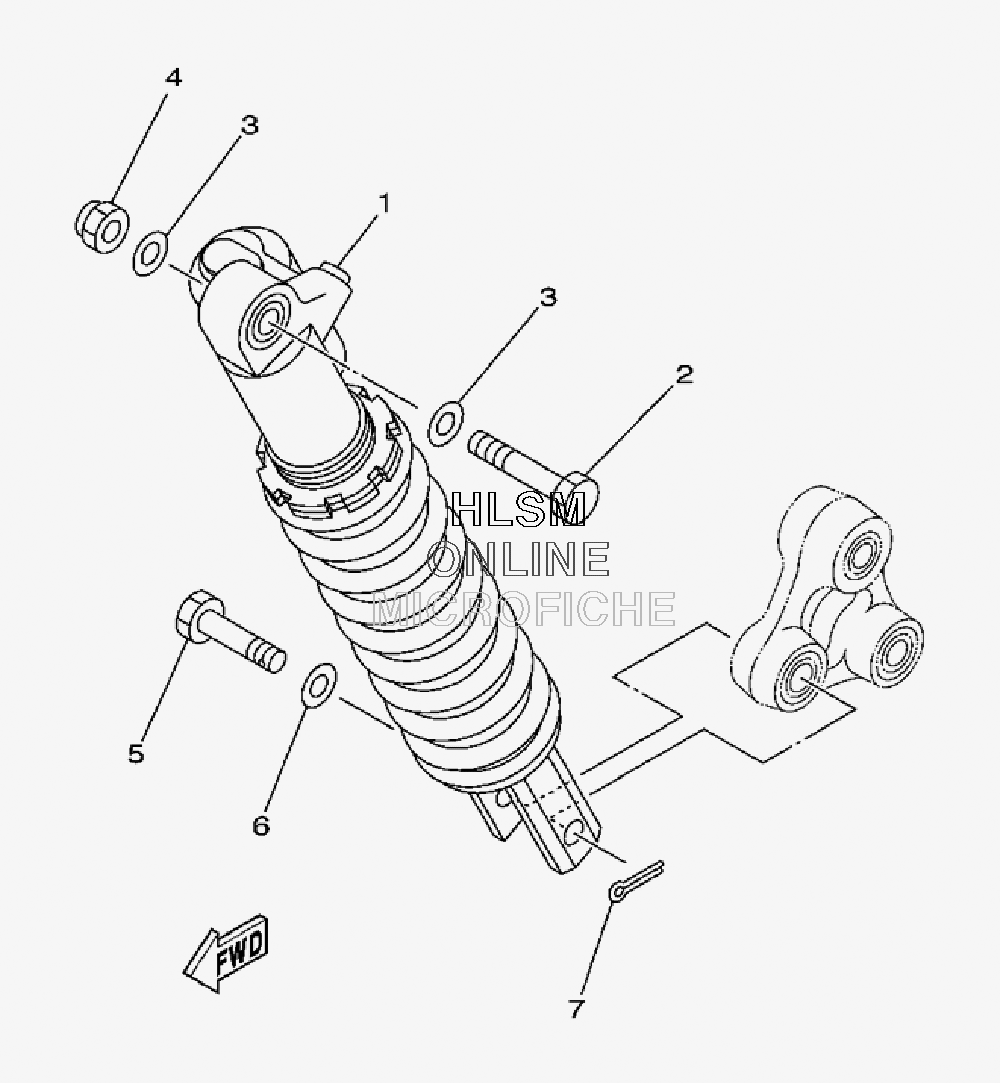

SUSPENSION - REAR SHOCK ABSORBER для Yamaha YFZ450 - 2009 года выпуска`
-
№АртикулНазвание
-
15D3-22210-E0-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290101-12024-00 BOLTBOLT
-
390201-12033-00 WASHER, PLATEWASHER, PLATE
-
490185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590102-12003-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
690201-12034-00 WASHER, PLATEWASHER, PLATE
-
791402-30025-00 PIN, COTTERPIN, COTTER
