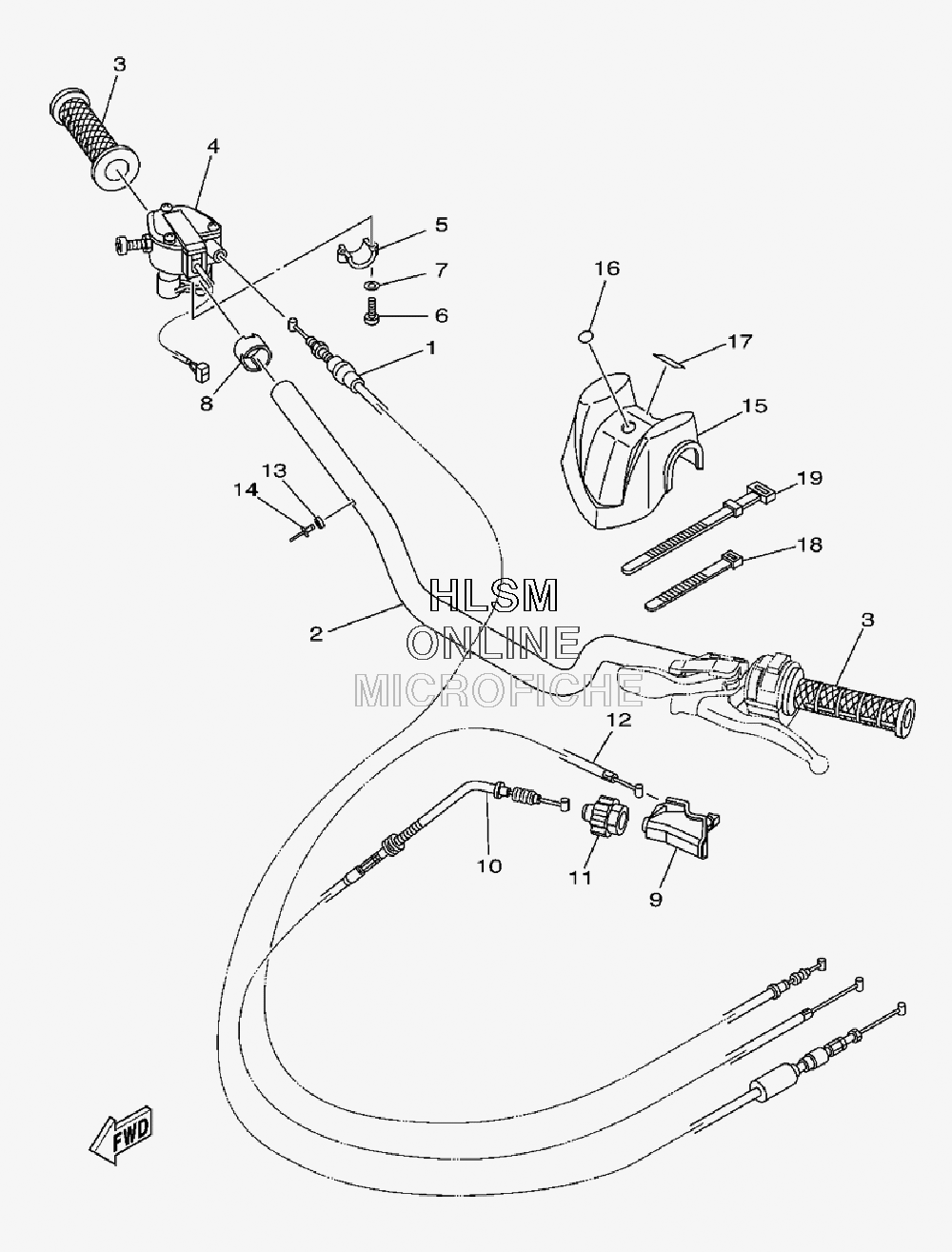

HANDLEBAR W/ CABLES для Yamaha YFZ450 - 2009 года выпуска`
-
№АртикулНазвание
-
15TG-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
25D3-26111-10-00 HANDLEBARHANDLEBAR
-
35LP-26241-00-00 GRIPGRIP
-
45TG-26250-10-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
54V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
698502-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
792902-05100-00 WASHER, SPRINGWASHER, SPRING
-
81UY-26259-00-00 COLLARCOLLAR
-
95TG-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
105TG-26335-30-00 CABLE, CLUTCHCABLE, CLUTCH
-
111C3-26342-50-00 BOOT, CABLEBOOT, CABLE
-
125TG-26341-20-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
1390387-02001-00 COLLARCOLLAR
-
1490267-24143-00 RIVET, BLINDRIVET, BLIND
-
155D3-26124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
165GT-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
175D3-26219-10-00 EMBLEMEMBLEM
-
18437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
193TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- DECALS
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- • HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- MODEL INFO - MANUALS
- OIL PUMP
- OIL TANK
- RACK AND BUMPER
- RADIATOR ASSY
- SEAT
- SHIFT CAM W/ FORK
- STARTER - RECOIL
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT WHEEL
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- VALVE ASSY
- WATER PUMP ASSY
- WHEEL - FRONT W/ AXLE ASSY
- WHEEL - REAR W/ AXLE ASSY
