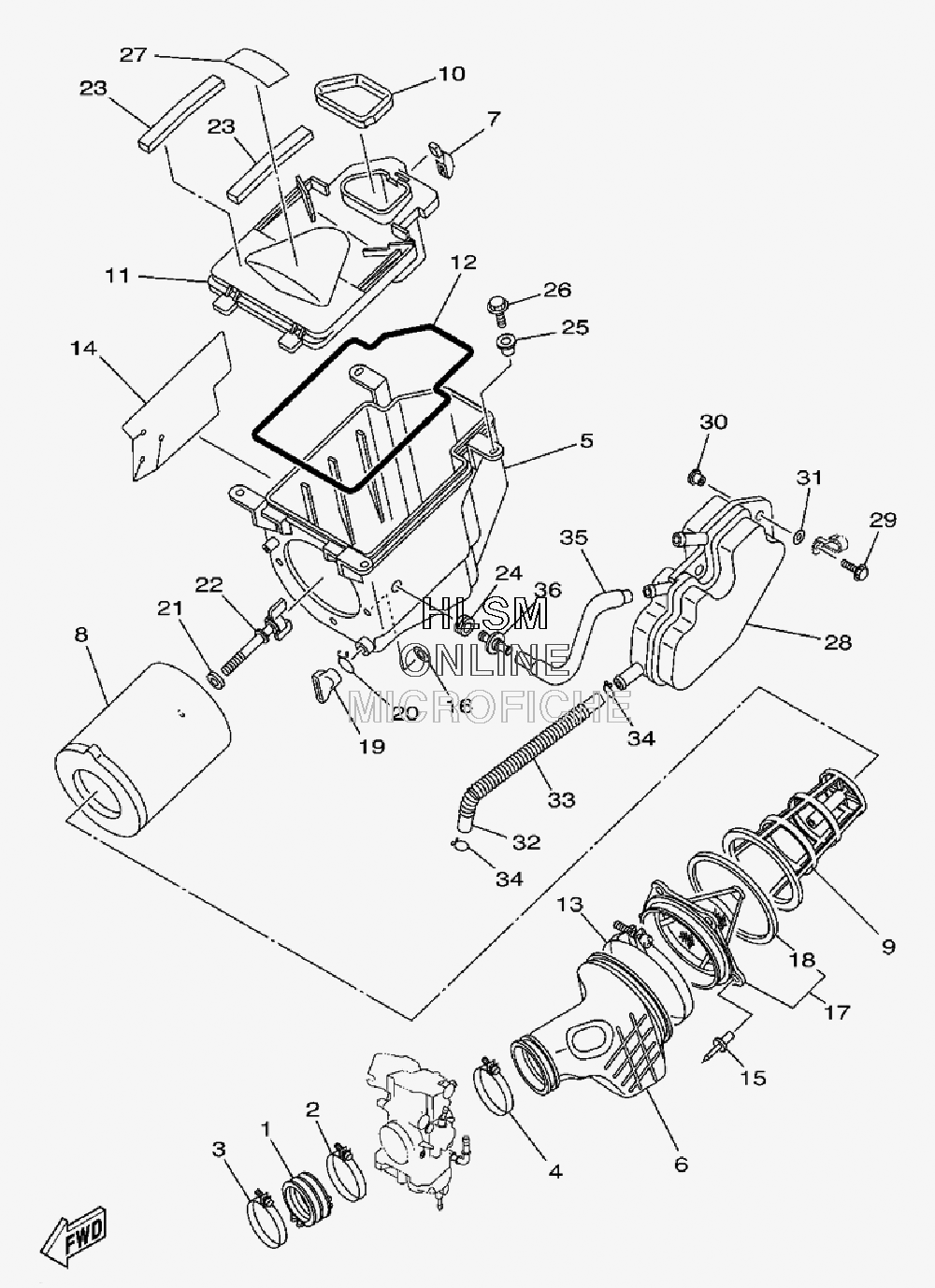

AIR CLEANER W/ INTAKE для Yamaha YFZ450 - 2009 года выпуска`
-
№АртикулНазвание
-
15XD-13597-10-00 JOINT, CARBURETOR 3JOINT, CARBURETOR 3
-
290450-57013-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
390450-59005-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
490450-61002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
55TG-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
65TG-14453-01-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
75GH-14436-00-00 HOOKHOOK
-
85TG-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
95TG-14458-00-00 GUIDEGUIDE
-
105TG-14479-00-00 FUNNELFUNNEL
-
115TG-14412-01-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
124FU-14452-00-00 SEALSEAL
-
1390450-99007-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
145TG-1442F-00-00 PROTECTORPROTECTOR
-
1590267-48138-00 RIVET, BLINDRIVET, BLIND
-
1690201-04028-00 WASHER, PLATEWASHER, PLATE
-
175D3-14459-00-00 HOLDER, GUIDEHOLDER, GUIDE
-
184ES-14462-00-00 SEALSEAL
-
1959V-14457-00-00 SEALSEAL
-
2090467-220A1-00 CLIPCLIP
-
2190209-06096-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
2290122-06010-00 BOLT, WINGBOLT, WING
-
235TG-14409-00-00 DAMPERDAMPER
-
2431A-14435-00-00 GROMMETGROMMET
-
2590387-08073-00 COLLARCOLLAR
-
2690105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
275D3-2177C-20-00 PLATE, EPA OFFROAD ATV 1PLATE, EPA OFFROAD ATV 1
-
285TG-15370-00-00 BREATHER ASSYBREATHER ASSY
-
2990105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
3090387-07018-00 COLLARCOLLAR
-
3190201-06078-00 WASHER, PLATEWASHER, PLATE
-
325TG-1531A-00-00 HOSE, BREATHER 1HOSE, BREATHER 1
-
3390501-100A2-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3490467-140A4-00 CLIPCLIP
-
355TG-1532A-00-00 HOSE, BREATHER 2HOSE, BREATHER 2
-
365TG-14419-00-00 PIPEPIPE
