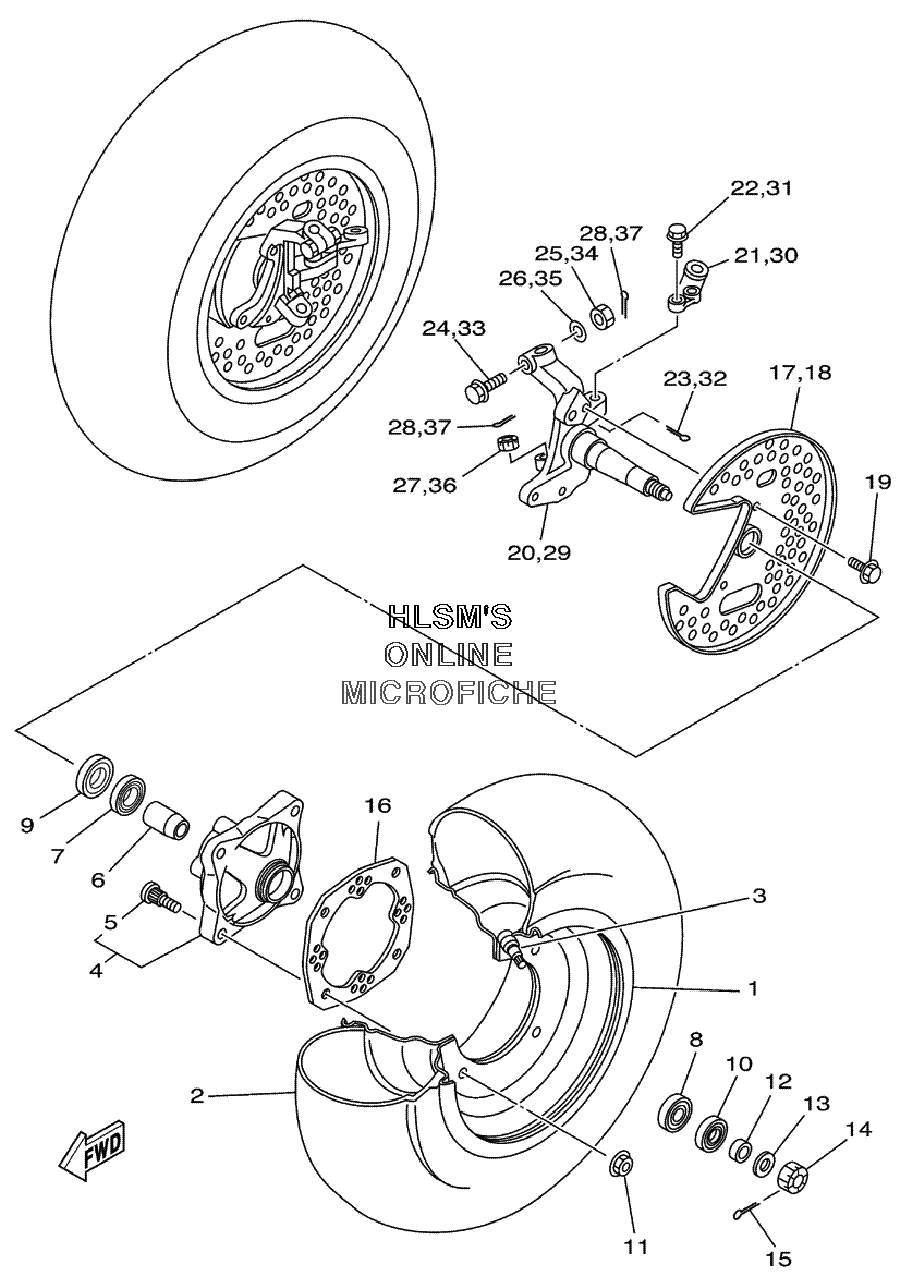

WHEEL - FRONT W/ AXLE ASSY для Yamaha BLASTER YFS200V - 2006 года выпуска`
-
№АртикулНазвание
-
12XJ-25180-00-35 WHEEL COMP. (SILVER)WHEEL COMP. (SILVER)
-
294107-100X3-00 TIRE (AT21X7-10**KT851A T/L N) (OPT) DUNLOP)TIRE (AT21X7-10**KT851A T/L N) (OPT) DUNLOP)
-
294107-105W8-00 TIRE (AT21X7-10**C-873 T/L) (OPT) CHENG SHINTIRE (AT21X7-10**C-873 T/L) (OPT) CHENG SHIN
-
393900-00022-00 VALVE, RIMVALVE, RIM
-
43GD-25111-01-00 HUB, FRONTHUB, FRONT
-
590114-10007-00 ...BOLT, SERRATION...BOLT, SERRATION
-
61UY-25117-00-00 SPACER, BEARINGSPACER, BEARING
-
793306-00406-00 BEARING (OPT) NTNBEARING (OPT) NTN
-
793306-00438-00 BEARING (OPT) NIHONSEIKOBEARING (OPT) NIHONSEIKO
-
893306-20227-00 BEARINGBEARING
-
993105-26026-00 OIL SEAL, SDD-TYPEOIL SEAL, SDD-TYPE
-
1093102-22216-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
1195707-10500-00 NUT, FLANGENUT, FLANGE
-
1290387-150R1-00 COLLARCOLLAR
-
1390201-14586-00 WASHER, PLATEWASHER, PLATE
-
1490171-14020-00 NUT, CASTLENUT, CASTLE
-
1591401-30025-00 PIN, SPLITPIN, SPLIT
-
163GD-25127-10-00 COVER, PLATECOVER, PLATE
-
173GD-2514A-10-00 RING, WHEEL 1 (LEFT)RING, WHEEL 1 (LEFT)
-
183GD-2515A-10-00 RING, WHEEL 2 (RIGHT)RING, WHEEL 2 (RIGHT)
-
1995807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
205VM-23511-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
212XJ-23512-01-00 ARM, KNUCKLE 1ARM, KNUCKLE 1
-
2290105-10507-00 BOLT,WASHER BASEDBOLT,WASHER BASED
-
2391401-20020-00 PIN, COTTERPIN, COTTER
-
2490105-10549-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2595337-10600-00 NUTNUT
-
2690201-10430-00 WASHER, PLATEWASHER, PLATE
-
2790171-10046-00 NUT, CASTLENUT, CASTLE
-
2891401-20020-00 PIN, COTTERPIN, COTTER
-
295VM-23521-00-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
302XJ-23522-01-00 ARM, KNUCKLE 2ARM, KNUCKLE 2
-
3190105-10507-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3291401-20020-00 PIN, COTTERPIN, COTTER
-
3390105-10549-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3495337-10600-00 NUTNUT
-
3590201-10430-00 WASHER, PLATEWASHER, PLATE
-
3690171-10046-00 NUT, CASTLENUT, CASTLE
-
3791401-20020-00 PIN, COTTERPIN, COTTER
