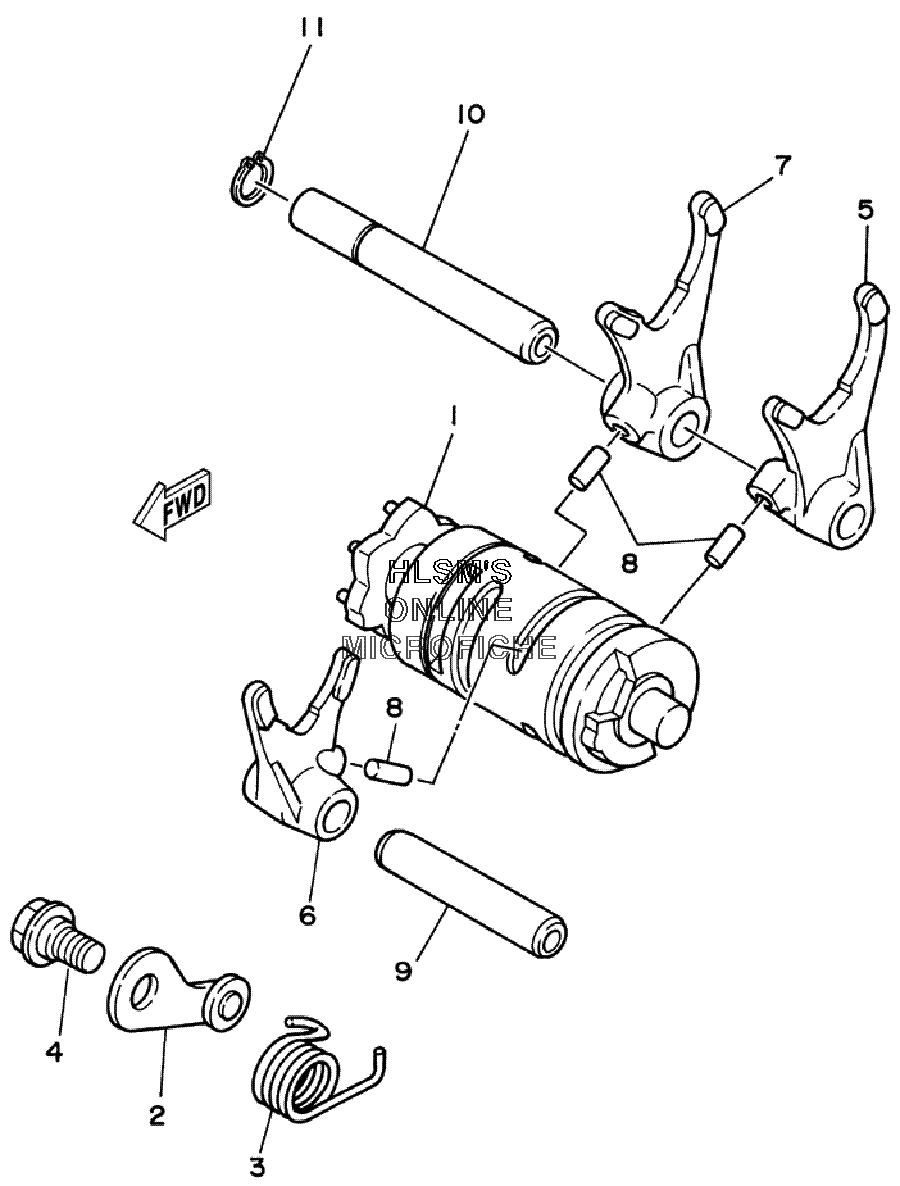

SHIFT CAM W/ FORK для Yamaha BLASTER YFS200V - 2006 года выпуска
-
№АртикулНазвание
-
15KJ-18540-00-00 SHIFT CAM ASSY.SHIFT CAM ASSY.
-
210V-18140-00-00 STOPPER LEVER ASSY.STOPPER LEVER ASSY.
-
390508-29749-00 SPRING, TORSIONSPRING, TORSION
-
490109-063F7-00 BOLTBOLT
-
537F-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
637F-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
737F-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
890250-06013-00 PIN, STRAIGHTPIN, STRAIGHT
-
95X5-18531-01-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
1034X-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
1199009-10400-00 CIRCLIPCIRCLIP
