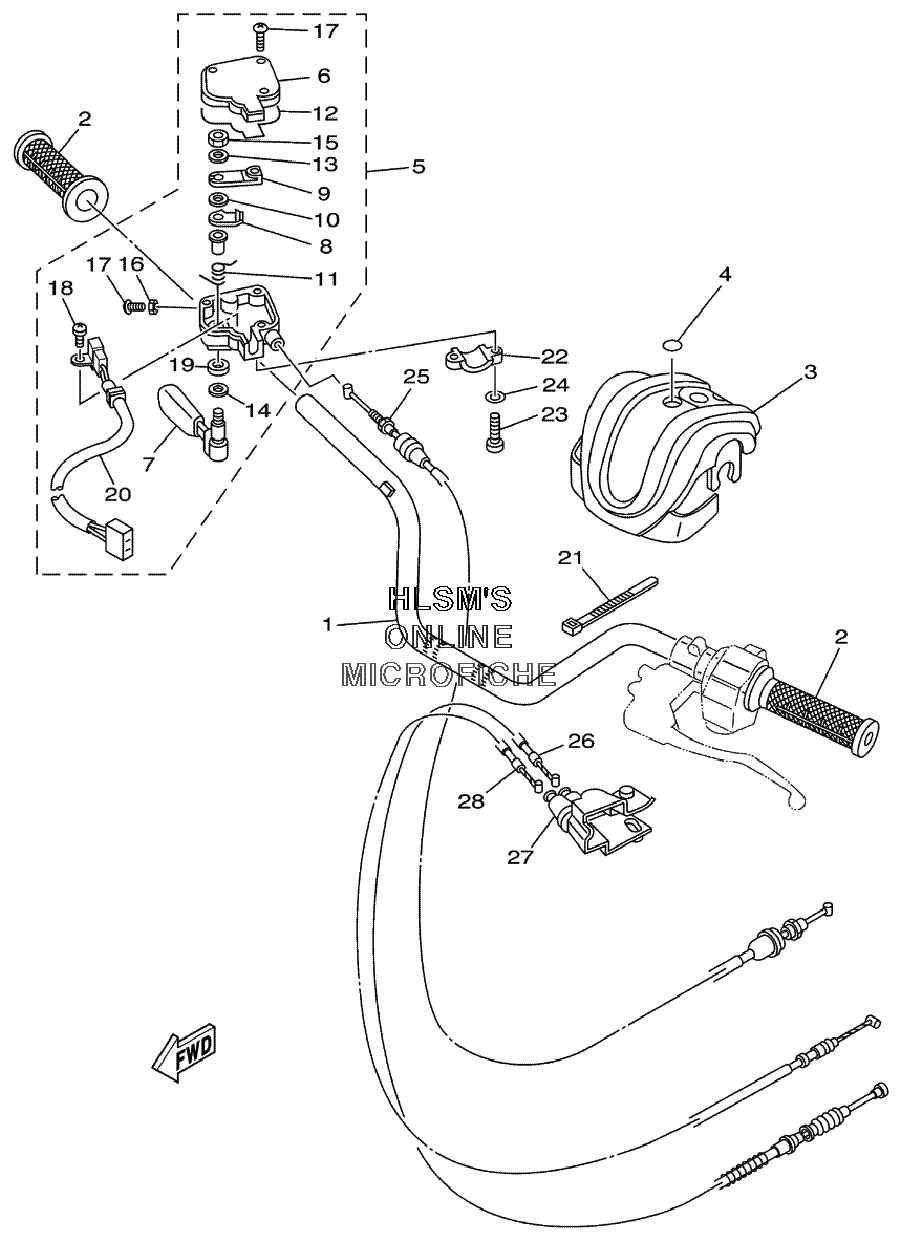

HANDLEBAR W/ CABLES для Yamaha BLASTER YFS200V - 2006 года выпуска
-
№АртикулНазвание
-
15LP-26111-20-00 HANDLEBARHANDLEBAR
-
25LP-26241-00-00 GRIPGRIP
-
35TH-26124-00-00 PROTECTOR, HANDLEBAR (OPT) FOR DPBSEPROTECTOR, HANDLEBAR (OPT) FOR DPBSE
-
35TH-26124-20-00 PROTECTOR, HANDLEBAR (OPT) FOR BWS1PROTECTOR, HANDLEBAR (OPT) FOR BWS1
-
45GT-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
53GG-26250-30-00 THROTTLE LEVER ASSY.THROTTLE LEVER ASSY.
-
62GU-2628F-20-00 ...CAP, GEAR...CAP, GEAR
-
72GU-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
82GU-2625H-00-00 ...ARM, THROTTLE...ARM, THROTTLE
-
92GU-2625J-00-00 ...ARM, THROTTLE 2...ARM, THROTTLE 2
-
102GU-26259-00-00 ...COLLAR...COLLAR
-
112GU-26314-00-00 ...SPRING...SPRING
-
122GU-2628G-00-00 ...GASKET...GASKET
-
132GU-26398-00-00 ...WASHER...WASHER
-
141NV-26129-00-00 ...WASHER...WASHER
-
1595607-05100-00 ...NUT, U...NUT, U
-
1695307-05700-00 ...NUT...NUT
-
1798507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1898907-03006-00 ...SCREW, BIND...SCREW, BIND
-
1993104-09025-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
205TG-82567-00-00 ...SWITCH, THROTTLE...SWITCH, THROTTLE
-
21437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
224V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2398507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2492907-05100-00 WASHER, SPRINGWASHER, SPRING
-
255VM-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
265VM-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
271UY-2637A-01-00 COVER, HANDLE LEVER 2COVER, HANDLE LEVER 2
-
285VM-26341-00-00 CABLE, BRAKECABLE, BRAKE
