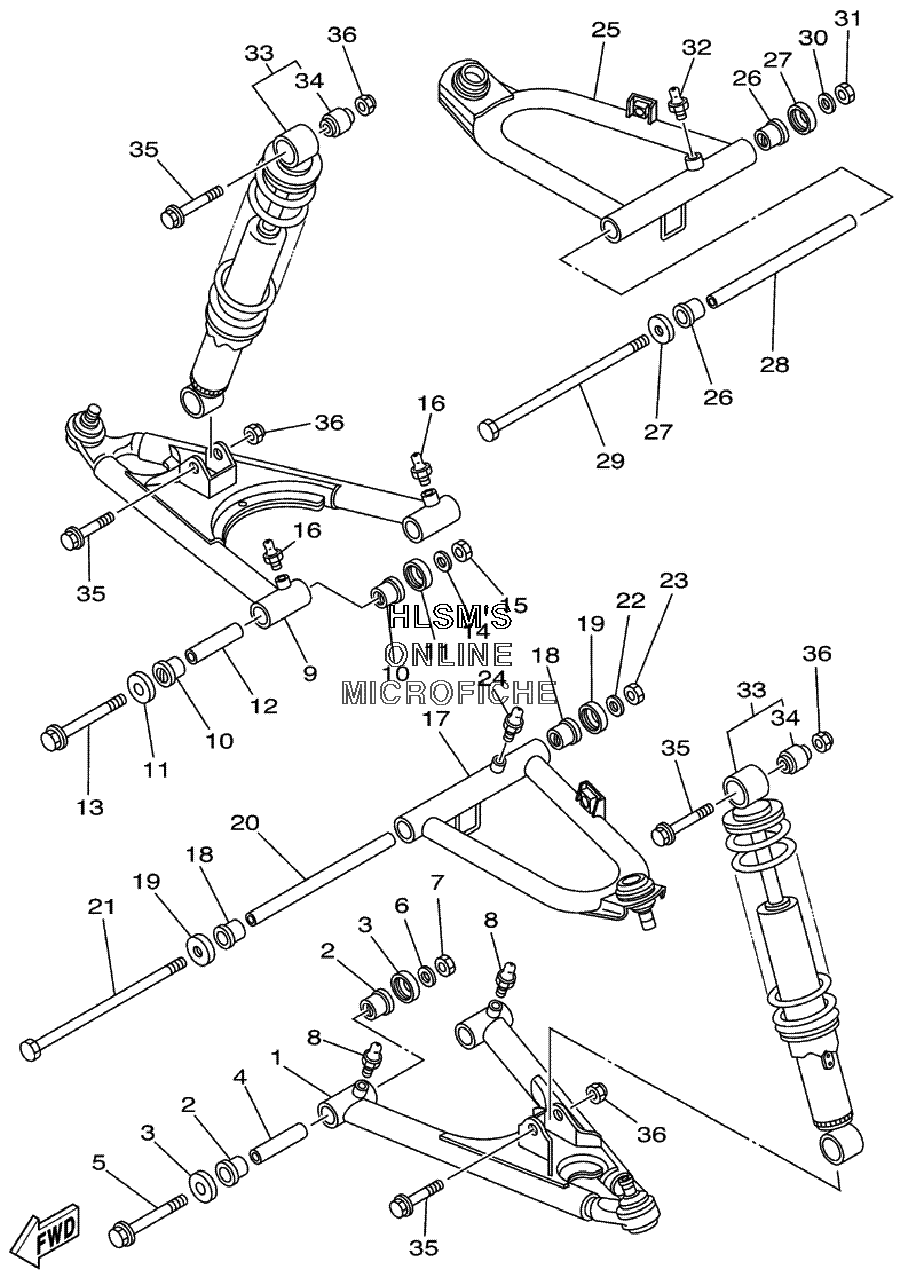

SUSPENSION - FRONT WHEEL для Yamaha BLASTER YFS200V - 2006 года выпуска`
-
№АртикулНазвание
-
13JM-23570-00-P0 FRONT LOWER ARM COMP. (LEFT) (S8 FOR BWS1)FRONT LOWER ARM COMP. (LEFT) (S8 FOR BWS1)
-
13JM-23570-00-P1 FRONT LOWER ARM COMP. (LEFT) (DPBMC FOR DPBSE)FRONT LOWER ARM COMP. (LEFT) (DPBMC FOR DPBSE)
-
290381-15088-00 BUSH, SOLIDBUSH, SOLID
-
31UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
490387-101R3-00 COLLARCOLLAR
-
590105-10034-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
690201-10430-00 WASHER, PLATEWASHER, PLATE
-
790185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
893700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
93JM-23580-00-P0 FRONT LOWER ARM COMP. (RIGHT) (S8 FOR BWS1)FRONT LOWER ARM COMP. (RIGHT) (S8 FOR BWS1)
-
93JM-23580-00-P1 FRONT LOWER ARM COMP. (RIGHT) (DPBMC FOR DPBSE)FRONT LOWER ARM COMP. (RIGHT) (DPBMC FOR DPBSE)
-
1090381-15088-00 BUSH, SOLIDBUSH, SOLID
-
111UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
1290387-101R3-00 COLLARCOLLAR
-
1390105-10034-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1490201-10430-00 WASHER, PLATEWASHER, PLATE
-
1590185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1693700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
175VM-23540-10-00 FRONT UPPER ARM COMP. (LEFT) (S8 FOR BWS1)FRONT UPPER ARM COMP. (LEFT) (S8 FOR BWS1)
-
175VM-23540-30-00 FRONT UPPER ARM COMP. (LEFT) (DPBMC FOR DPBSE)FRONT UPPER ARM COMP. (LEFT) (DPBMC FOR DPBSE)
-
1890381-15088-00 BUSH, SOLIDBUSH, SOLID
-
191UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
2090387-101U6-00 COLLARCOLLAR
-
21336-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
2290201-10430-00 WASHER, PLATEWASHER, PLATE
-
2390185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2493700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
255VM-23550-10-00 FRONT UPPER ARM COMP. (RIGHT) (S8 FOR BWS1)FRONT UPPER ARM COMP. (RIGHT) (S8 FOR BWS1)
-
255VM-23550-30-00 FRONT UPPER ARM COMP. (RIGHT) (DPBMC FOR DPBSE)FRONT UPPER ARM COMP. (RIGHT) (DPBMC FOR DPBSE)
-
2690381-15088-00 BUSH, SOLIDBUSH, SOLID
-
271UY-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
2890387-101U6-00 COLLARCOLLAR
-
29336-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
3090201-10430-00 WASHER, PLATEWASHER, PLATE
-
3190185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
332XJ-23350-20-36 SHOCK ABSORBER ASSY. (WHITE)SHOCK ABSORBER ASSY. (WHITE)
-
342XJ-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
3590105-10388-00 BOLT, FLANGEBOLT, FLANGE
-
3690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
