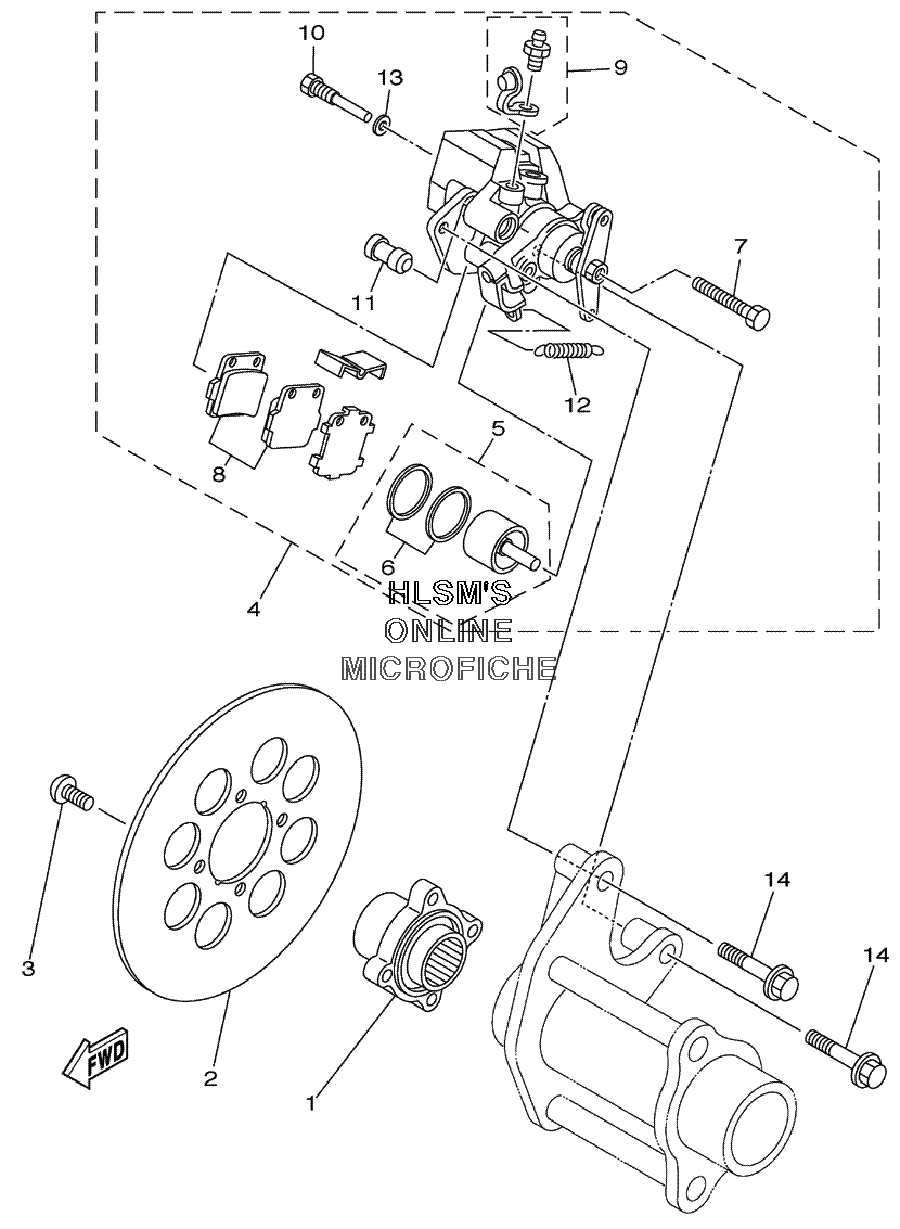

BRAKE - REAR CALIPER для Yamaha BLASTER YFS200V - 2006 года выпуска`
-
№АртикулНазвание
-
12GU-25712-00-00 BRACKET, DISCBRACKET, DISC
-
25FK-2582W-00-00 DISK, REAR BRAKE 2DISK, REAR BRAKE 2
-
390109-081F0-00 BOLTBOLT
-
45LP-2580W-10-00 CALIPER ASSY., REAR 2CALIPER ASSY., REAR 2
-
55LP-W0057-50-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
65LP-W0047-50-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
71UY-25972-51-00 ...ADJUST BOLT...ADJUST BOLT
-
85LP-W0046-50-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
91UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
101UY-25924-51-00 ...PIN, PAD...PIN, PAD
-
111UY-25917-51-00 ...BOOT, CALIPER...BOOT, CALIPER
-
121UY-25977-51-00 ...SPRING, RETURN...SPRING, RETURN
-
131UY-25933-51-00 ...LOCK WASHER - BRAKE...LOCK WASHER - BRAKE
-
1490105-08211-00 BOLT, FLANGEBOLT, FLANGE
