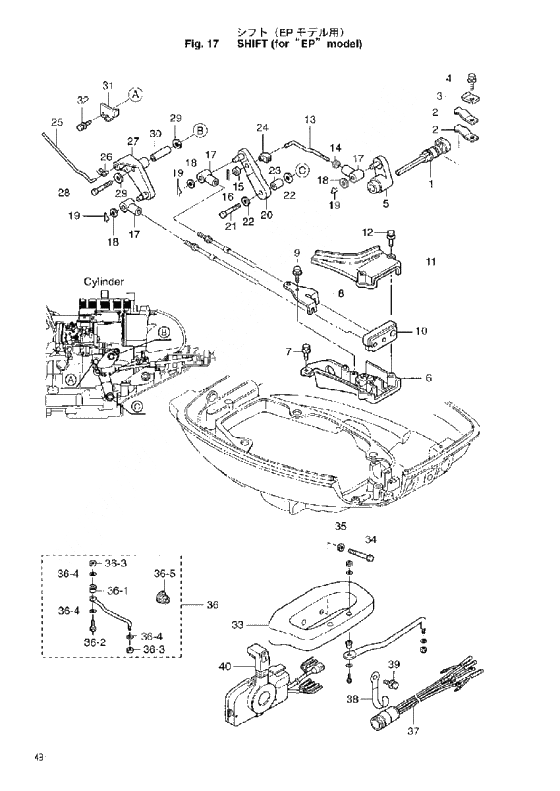

Shift (for 'ep' model) для Tohatsu MFS9.9C - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3BJ-66130-0 Shaft shift lever
    Shaft shift lever
  • 2
    3Y1-66113-0 Stopper shift lever
    Stopper shift lever
  • 3
    3BA-66117-0 Plate shift lever stopper
    Plate shift lever stopper
  • 5
    3R3-66128-0 Shift Arm, Remote Control
    for EP
    Shift Arm, Remote Control
    for EP
  • 6
    3R3Q67482-0 Rc control bracket (aqua marine blue)
    for EP
    Rc control bracket (aqua marine blue)
    for EP
  • 7
    9101E3-5620 Bolt & washer
    for EP, or 910113-5620
    Bolt & washer
    for EP, or 910113-5620
  • 8
    3R3-83820-0 Bracket, Cable
    for EP
    Bracket, Cable
    for EP
  • 9
    9101E3-5616 Bolt & washer
    for EP, or 910113-5616
    Bolt & washer
    for EP, or 910113-5616
  • 10
    3R3-83732-0 Втулка кабеля
    for EP
    Втулка кабеля
    for EP
  • 11
    3R3-67483-1 Cover, Remote Control Bracket
    for EP
    Cover, Remote Control Bracket
    for EP
  • 12
    3BJ-67485-0 Bolt 5-35 (with washer)
    for EP
    Bolt 5-35 (with washer)
    for EP
  • 13
    3BJ-66134-0 Rod Shift Lever
    for EP
    Rod Shift Lever
    for EP
  • 14
    930103-0500 Nut
    for EP
    Nut
    for EP
  • 15
    3BJ-66138-0 Spacer 5-9.5-5
    for EP
    Spacer 5-9.5-5
    for EP
  • 16
    951503-0212 Split Pin
    for EP
    Split Pin
    for EP
  • 17
    3B7-83715-1 Cable Joint
    for EP
    Cable Joint
    for EP
  • 3B7-83715-2 Cable Joint
    Cable Joint
  • 18
    3AA-83719-0 Washer
    for EP, or 353-83719-0
    Washer
    for EP, or 353-83719-0
  • 19
    951603-0800 R-Pin
    for EP
    R-Pin
    for EP
  • 20
    3R3-66129-0 Shift Lever, Remote Control
    for EP
    Shift Lever, Remote Control
    for EP
  • 22
    3C8-66308-0 New part
    for EP
    New part
    for EP
  • 23
    353-76079-0 Collar 6.2-9-9.3
    for EP
    Collar 6.2-9-9.3
    for EP
  • 24
    3C8-63733-0 Rod Snap 5-3
    for EP
    Rod Snap 5-3
    for EP
  • 25
    3R3-63709-0 Throttle Rod, Remote Control
    for EP
    Throttle Rod, Remote Control
    for EP
  • 26
    346-67196-1 Rod Snap 3-b
    for EP
    Rod Snap 3-b
    for EP
  • 27
    3R3-83910-0 Throttle Lever, Remote Control
    for EP
    Throttle Lever, Remote Control
    for EP
  • 30
    3R3-83913-0 Втулка тяги КПП
    for EP
    Втулка тяги КПП
    for EP
  • 31
    3BJ-83914-0 Stopper throttle lever
    for EP
    Stopper throttle lever
    for EP
  • 33
    3V5Q62001-0 Steering bracket (amb)
    for EP
    Steering bracket (amb)
    for EP
  • 34
    9161E3-1045 Bolt
    for EP, or 916113-1045
    Bolt
    for EP, or 916113-1045
  • 916113-1045 Bolt
    Bolt
  • 35
    9401E3-1000 Washer
    for EP, or 940113-1000
    Washer
    for EP, or 940113-1000
  • 36
    3E0-84905-0 Drag link assy
    for EP
    Drag link assy
    for EP
  • 36-1
    3E0-84914-0 Spacer Drag Link H
    Spacer Drag Link H
  • 36-2
    3E0-84917-0 Bolt 3/8-50
    Bolt 3/8-50
  • 36-3
    353-84918-0 Nylon Nut 3/8
    Nylon Nut 3/8
  • 36-4
    353-84916-0 Washer
    Washer
  • 36-5
    3F3-84908-0 Seal Ring Drag Link
    Seal Ring Drag Link
  • 37
    3BJ-76110-0 Cord assy
    Cord assy
  • 38
    3Z5-06972-0 Clamp
    for EP, Fig.9-28
    Clamp
    for EP, Fig.9-28
  • 39
    9101E3-5612 Bolt & washer
    for EP, Fig.9-29, or 910113-5612
    Bolt & washer
    for EP, Fig.9-29, or 910113-5612
  • 40
    3B7Q84340-2 Rc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt amb
    for EP, Unique
    Rc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt amb
    for EP, Unique
  • 3B7Q84340-3 Rc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt amb
    Rc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt amb
