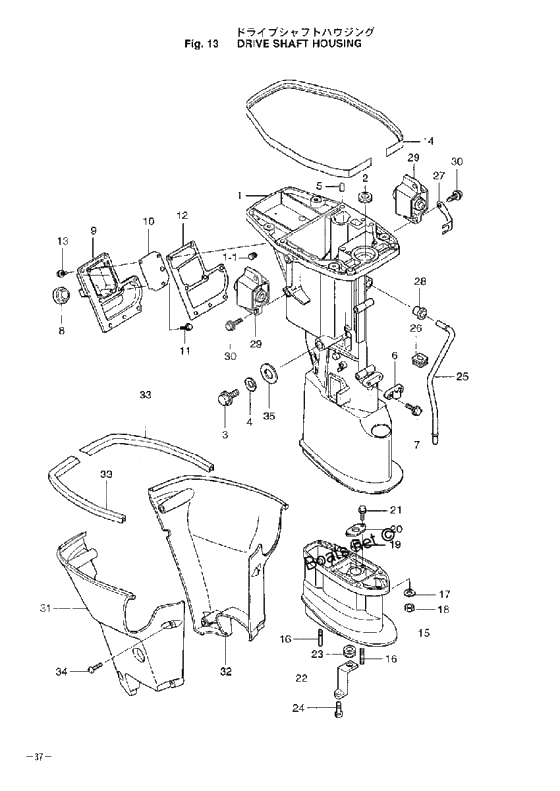

Drive shaft housing для Tohatsu MFS9.9C - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    3BKQ61020-0 Drive shaft housing s
    Drive shaft housing s
  • 3BKQ61020-2 Drive shaft housing s
    Drive shaft housing s
  • 1
    3BKQ61030-0 Drive shaft housing l
    Drive shaft housing l
  • 3BKQ61030-1 Drive shaft housing l
    Drive shaft housing l
  • 1-1
    3H6-07257-0 Exhaust Plug
    Exhaust Plug
  • 2
    350-01215-1 Oil Seal
    Oil Seal
  • 3
    3R3-07405-1 Bolt, Drain
    Bolt, Drain
  • 4
    3R3-07406-0 Washer
    Washer
  • 5
    345-01111-0 Dowel Pin 6-12
    Dowel Pin 6-12
  • 6
    3V6-66037-0 Cam rod holder
    for Transom L" & "UL"
    Cam rod holder
    for Transom L" & "UL"
  • 7
    9101E3-5620 Bolt & washer
    for Transom L" & "UL", or 910113-5620
    Bolt & washer
    for Transom L" & "UL", or 910113-5620
  • 8
    3BJ-61207-0 Grommet idle exhaust port
    Grommet idle exhaust port
  • 9
    3BJQ61208-0 Cover idle exhaust port
    Cover idle exhaust port
  • 10
    3BJ-62114-0 Plate idle exhaust port
    Plate idle exhaust port
  • 11
    9101E3-0512 Bolt
    or 910113-0512
    Bolt
    or 910113-0512
  • 12
    3BJ-61220-0 Gasket idle exhaust port
    Gasket idle exhaust port
  • 14
    3R3-67116-0 Резина
    Резина
  • 15
    3BJQ61110-0 Extension housing ul
    for Transom UL""
    Extension housing ul
    for Transom UL""
  • 16
    3BJ-61111-0 Stud Bolt
    for Transom UL""
    Stud Bolt
    for Transom UL""
  • 17
    3P0-66233-0 New part
    for Transom UL""
    New part
    for Transom UL""
  • 19
    3BJ-60003-0 Drive shaft bushing
    for Transom UL""
    Drive shaft bushing
    for Transom UL""
  • 20
    3V1-64332-0 Stopoer,Bushing
    for Transom UL""
    Stopoer,Bushing
    for Transom UL""
  • 21
    9101E3-5612 Bolt & washer
    for Transom UL", or 910113-5612"
    Bolt & washer
    for Transom UL", or 910113-5612"
  • 22
    3Z0-65203-0 Lock Plate
    for Transom UL""
    Lock Plate
    for Transom UL""
  • 23
    3V1-65204-0 Rubber Mount,13-2.5
    for Transom UL""
    Rubber Mount,13-2.5
    for Transom UL""
  • 25
    3BJ-65120-0 Water Pipe UL
    for Transom UL""
    Water Pipe UL
    for Transom UL""
  • 25
    3H8-65100-0 Water pipe s
    for Transom S""
    Water pipe s
    for Transom S""
  • 25
    3H8-65110-0 Water Pipe L
    for Transom L""
    Water Pipe L
    for Transom L""
  • 26
    3R3-65204-0 Guide Rubber, Water Pipe
    Guide Rubber, Water Pipe
  • 27
    3R3-65205-0 Rook Plate, Water Pipe
    Rook Plate, Water Pipe
  • 28
    3R3-65206-1 Seal Rubber, 9.9B/15B
    Seal Rubber, 9.9B/15B
  • 29
    3BJ-61301-0 Rubber mount (upper)
    for Transoms S" and "L""
    Rubber mount (upper)
    for Transoms S" and "L""
  • 29
    3BA-61301-0 Rubber mount (upper)
    Old Part No. 3R3-61301-0, for Transom UL""
    Rubber mount (upper)
    Old Part No. 3R3-61301-0, for Transom UL""
  • 31
    3R3Q67003-1 Cover drive shaft housing r (amb)
    Starboard
    Cover drive shaft housing r (amb)
    Starboard
  • 32
    3R3Q67004-1 Cover drive shaft housing l (amb)
    Port
    Cover drive shaft housing l (amb)
    Port
  • 33
    3R3-61213-0 Seal Rubber, Apron
    Seal Rubber, Apron
  • 34
    3R0-61217-0 Tapping Screw,6-60
    Tapping Screw,6-60
  • 35
    3R3-67017-0 Grommet, Oil Drain
    Grommet, Oil Drain
