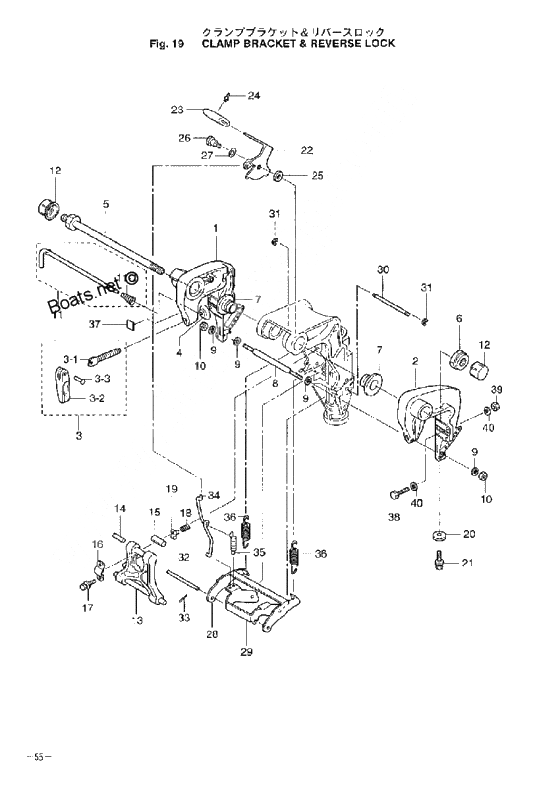

Bracket & reverse lock для Tohatsu MFS9.9C - 2011 года выпуска

№

Артикул

Название
1

3BJQ62112-0 Clamp bracket right (starboard)
Starboard

Clamp bracket right (starboard)
Starboard

7 530 ₽
2

3BJQ62113-0 Clamp bracket left (port)
Port

Clamp bracket left (port)
Port

7 530 ₽
3

3AAQ62100-0 Clamp screw assy (amb)

Clamp screw assy (amb)

3 010 ₽
3AAQ62105-0 Clamp screw assy (amb)

Clamp screw assy (amb)

4 420 ₽
3-1

3AA-62103-0 Винт струбцины
M14 P2.0

Винт струбцины
M14 P2.0

3 100 ₽
3-2

332Q62102-1 Handle clamp screw

Handle clamp screw

990 ₽
3-3

3C8-62104-1 Rivet3-22

Rivet3-22

120 ₽
4

332-62101-0 Pad clamp screw

Pad clamp screw

1 230 ₽
5

3AC-62191-0 Swivel bracket bolt
Bracket Bolt, or 346-62191-0

Swivel bracket bolt
Bracket Bolt, or 346-62191-0

4 420 ₽
6

346-62124-1 Bracket nut

Bracket nut

1 630 ₽
7

349-62126-0 Bushing, Bracket Bolt

Bushing, Bracket Bolt

1 110 ₽
8

3V6-62117-0 Distance Piece

Distance Piece

1 260 ₽
11

3BJ-62123-0 Thrust rod assy (w-spring)

Thrust rod assy (w-spring)

3 720 ₽
11-1

369-62122-2 Spring Thrust Rod

Spring Thrust Rod

410 ₽
12

346-62127-0 Cap,Bracket Bolt
for MF & EF

Cap,Bracket Bolt
for MF & EF

200 ₽
13

3G2Q62993-1 Tilt stopper (amb)
Old Part No. 3G2Q62431-0

Tilt stopper (amb)
Old Part No. 3G2Q62431-0

3 490 ₽
15

350-62437-0 Bushing Tilt Stopper

Bushing Tilt Stopper

360 ₽
16

350-62439-1 Set Plate Tilt Stopper

Set Plate Tilt Stopper

520 ₽
18

3C8-62421-1 Spring Friction Plate

Spring Friction Plate

570 ₽
19

346-62438-0 Set Piece

Set Piece

320 ₽
20

338-60218-2 New part

New part

1 140 ₽
22

3G2-66311-0 Lever reverse lock

Lever reverse lock

1 670 ₽
23

3AL-66333-0 Lock lever grip
or 346-66333-0

Lock lever grip
or 346-66333-0

450 ₽
24

346-66334-0 Stopper

Stopper

150 ₽
25

3C8-66308-0 New part

New part

140 ₽
26

3V9-05254-0 Shoulder bolt 6-8

Shoulder bolt 6-8

980 ₽
27

941403-0800 Washer

Washer

120 ₽
28

3G2-66351-0 Reverse Lock

Reverse Lock

1 900 ₽
29

3G2-66313-1 Arm reverse lock

Arm reverse lock

1 740 ₽
30

3G2-66319-1 Shaft reverse lock a

Shaft reverse lock a

780 ₽
31

945303-0600 E-Ring

E-Ring

120 ₽
32

3G2-66321-0 Rod reverse lock a

Rod reverse lock a

460 ₽
33

951503-0212 Split Pin

Split Pin

120 ₽
34

3G2-66312-0 Link reverse lock a

Link reverse lock a

1 400 ₽
35

350-66315-0 Spring reverse lock

Spring reverse lock

750 ₽
36

3G2-66331-0 Spring, reverse lock

Spring, reverse lock

1 700 ₽
37

3H8-72049-0 Labe

Labe

290 ₽
38

9161E3-0885 Bolt
or 916113-0885 Option

Bolt
or 916113-0885 Option

440 ₽
