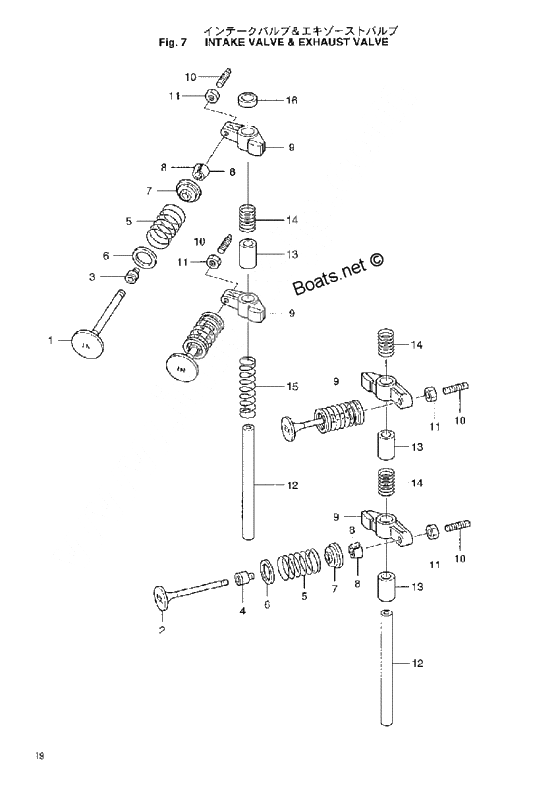

Intake valve & exhaust valve для Tohatsu MFS9.9C - 2011 года выпуска
-
№АртикулНазвание
-
13AE-07901-0 Intake ValveIntake Valve
-
23AE-07902-0 Exhaust ValveExhaust Valve
-
33R3-07204-0 Seal, In Valve Stem
BlackSeal, In Valve Stem
Black -
43R3-07206-0 Seal, EX Valve Stem
GreenSeal, EX Valve Stem
Green -
53AE-07203-0 Valve spring
L=35Valve spring
L=35 -
63H6-07205-0 Seat, Valve SpringSeat, Valve Spring
-
73AE-07921-0 RetainerRetainer
-
83AE-07923-0 CotterCotter
-
93AE-07235-0 Rocker armRocker arm
-
103R0-07238-0 Stud BoltStud Bolt
-
113H8-07237-0 NutNut
-
123Y2-07920-0 Shaft rocker armShaft rocker arm
-
133H8-07239-0 Collar, Rocker Arm ShaftCollar, Rocker Arm Shaft
-
143H8-07225-0 Spring Washer
L=30Spring Washer
L=30 -
153H8-07229-0 Spring Washer
L=51Spring Washer
L=51 -
163R3-07227-0 WasherWasher
