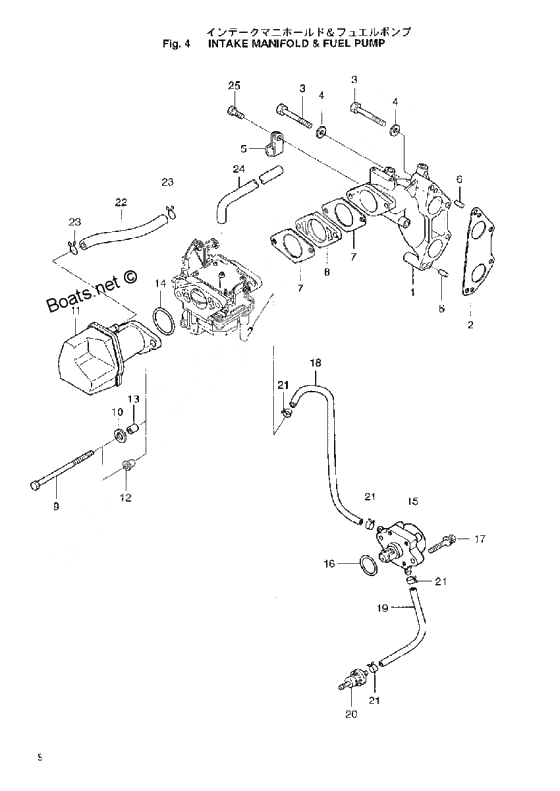

Intake manifold & fuel pump для Tohatsu MFS9.9C - 2011 года выпуска`
-
№АртикулНазвание
-
13BJ-02091-0 Intake manifoldIntake manifold
-
23BJ-02104-0 Gasket intake manifoldGasket intake manifold
-
3916114-0645 BoltBolt
-
5345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
6345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
73BJ-02011-0 Gasket carburetorGasket carburetor
-
83FS-03952-0 InsulatorInsulator
-
93R0-03215-0 Bolt,6-100Bolt,6-100
-
113BJ-02409-0 Intake silencerIntake silencer
-
123BJ-06283-0 Collar 6.1-14-8.9
for MF & EFCollar 6.1-14-8.9
for MF & EF -
133A0-76079-0 Collar, 6.2-9-7.5
for EPCollar, 6.2-9-7.5
for EP -
143BJ-02419-0 Seal ring 2.4-35Seal ring 2.4-35
-
153H8-04000-1 Fuel Pump Ass'yFuel Pump Ass'y
-
16345-62415-0 O-RingO-Ring
-
179101E3-5625 Bolt & washer
or 910113-5625Bolt & washer
or 910113-5625 -
20369-02230-0 Фильтр топливныйФильтр топливный
-
213AB-35143-0 Clip @ 9.5Clip @ 9.5
-
233C7-02215-0 ClipClip
-
243BJ-07735-0 Breather hose (l=290mm)
for CarburatorBreather hose (l=290mm)
for Carburator
