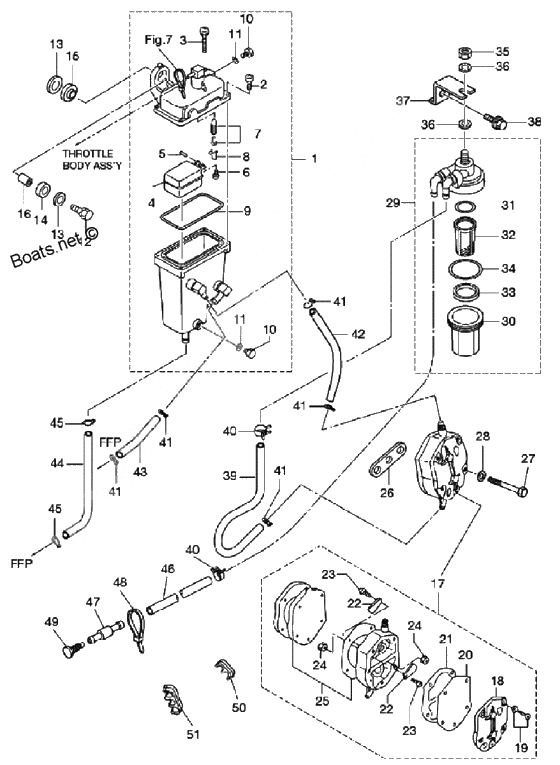

Vapor separarator & fuel line для Tohatsu MD90C2 - 2011 года выпуска
-
№АртикулНазвание
-
13T5-10150-1 Vapor separator assyVapor separator assy
-
2922531-6414 Stud BoltStud Bolt
-
43T5-03230-0 Float, Vapor SeparaterFloat, Vapor Separater
-
53F3-03232-0 Arm Pin FloatArm Pin Float
-
6921503-0408 Stud BoltStud Bolt
-
73R3-03239-0 Floato Valve AssyFloato Valve Assy
-
8344-03244-0 ClipClip
-
93T5-03235-0 O-RingO-Ring
-
10345-03292-0 Drain ScrewDrain Screw
-
11336-03293-0 O-RingO-Ring
-
12910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
13346-67115-0 WasherWasher
-
14346-67113-0 Mount RubberMount Rubber
-
153B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
16346-67114-1 SpacerSpacer
-
346-67114-0 SpacerSpacer
-
17356-04000-1 New partNew part
-
18334-04004-0 Fuel CoverFuel Cover
-
20334-04005-0 New partNew part
-
21334-04007-0 Gasket B DiaphragmGasket B Diaphragm
-
22356-04044-0 Check ValveCheck Valve
-
23921722-0306 Stud BoltStud Bolt
-
24930222-0300 NutNut
-
25356-04030-0 New partNew part
-
26346-04901-1 GasketGasket
-
346-04901-2 GasketGasket
-
27910103-0640 BoltBolt
-
28940203-0600 WasherWasher
-
293T1-02230-0 Fuel filter assy.Fuel filter assy.
-
303B7-02237-0 CupCup
-
313B7-02235-0 O-Ring AO-Ring A
-
323B7-02234-0 FilterFilter
-
333T5-02229-0 Float, Fuel FilterFloat, Fuel Filter
-
343B7-02236-0 O???? bO???? b
-
35930103-0800 NutNut
-
36940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
373T5-02239-0 Plate, FilterPlate, Filter
-
393FW-02211-0 Hose low permeationHose low permeation
-
40345-70114-1 ClipClip
-
345-70114-0 ClipClip
-
41338-02215-0 ClipClip
-
4298AB-5-0210 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4398AB-5-0075 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
453C7-02215-0 ClipClip
-
473T1-60018-0 Fuel hose nippleFuel hose nipple
-
483T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
493T1-03813-0 Cap fuel hose nippleCap fuel hose nipple
-
503T1-06915-0 ClampClamp
-
513U1-06915-0 ClampClamp
