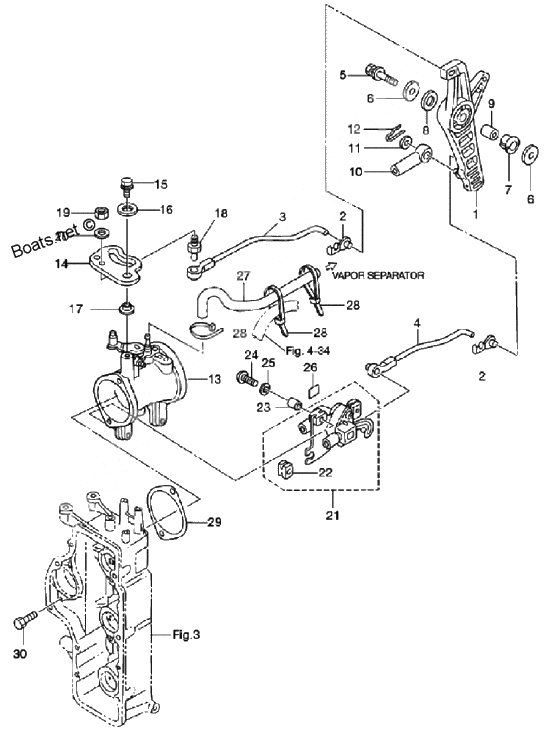

Throttle для Tohatsu MD90C2 - 2011 года выпуска`
-
№АртикулНазвание
-
13B7B63711-3 Advancer ArmAdvancer Arm
-
23B7-63733-0 Rod Snap, 5-3Rod Snap, 5-3
-
33T9-63702-2 Throttle link rodThrottle link rod
-
43T9-10109-1 Tps linkTps link
-
3T9-10109-0 Tps linkTps link
-
5910103-0835 BoltBolt
-
63B7-63730-0 WasherWasher
-
73B7-63713-0 BushingBushing
-
83B7-63731-0 WasherWasher
-
93B7-63732-1 CollarCollar
-
3B7-63732-0 CollarCollar
-
103B7-83715-1 Cable JointCable Joint
-
3B7-83715-2 Cable JointCable Joint
-
113AA-83719-0 WasherWasher
-
12951603-0800 R-PinR-Pin
-
133FY-10100-0 Throttle body assy d75/90c2
75ps Mark 3FYThrottle body assy d75/90c2
75ps Mark 3FY -
133T9-10100-1 Throttle body assy
90ps Mark 3T9Throttle body assy
90ps Mark 3T9 -
3T9-10100-0 Throttle body assyThrottle body assy
-
143T9-63718-0 Throttle CamThrottle Cam
-
15910103-0616 BoltBolt
-
16346-67115-0 WasherWasher
-
173T5-63721-0 BushingBushing
-
18346-05228-1 Ball JointBall Joint
-
19930203-0600 NutNut
-
20940103-0600 WasherWasher
-
213T5-10110-0 TPS Ass'yTPS Ass'y
-
223T5-10107-0 Mount RubberMount Rubber
-
233T5-10128-0 Collar, 4.2-6-10.5Collar, 4.2-6-10.5
-
253T5-10129-0 WasherWasher
-
263T5-72195-0 Lavel, TPSLavel, TPS
-
283T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
293T5-10104-0 Gasket, Throttle BodyGasket, Throttle Body
-
303T5-02241-0 Bolt, 6-25 PrecoatedBolt, 6-25 Precoated
