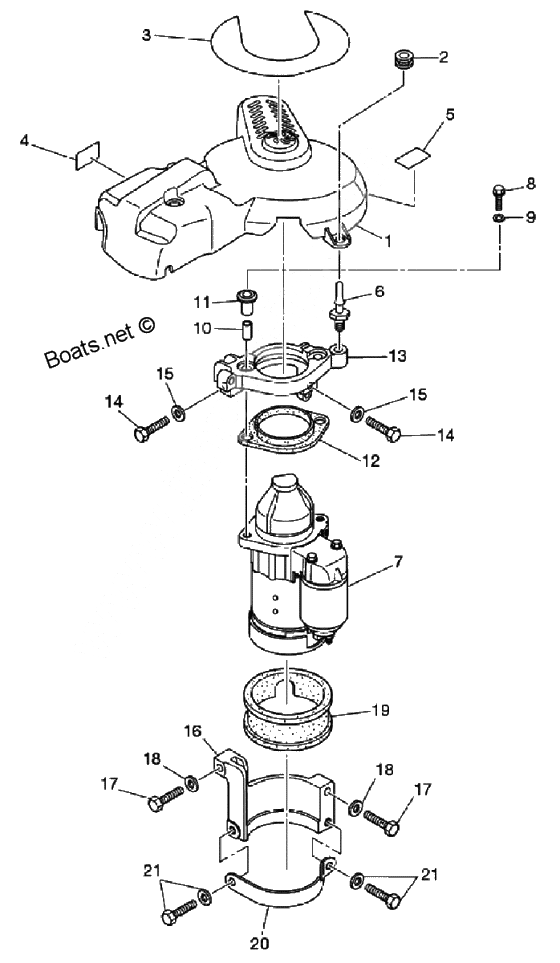

Electric parts, starter motor 1 для Tohatsu MD90C2 - 2011 года выпуска
-
№АртикулНазвание
-
13FW-06301-0 Ring gear coverRing gear cover
-
23T1-67005-0 Grommet 16-2.5Grommet 16-2.5
-
33T1-72181-0 Caution decalCaution decal
-
43Y9-72194-0 Label FuseLabel Fuse
-
53FW-72026-0 Spark Plug DecalSpark Plug Decal
-
61E0-36056-0 Ring gear cover hookRing gear cover hook
-
73FW-76010-0 Starter motor d75/90c2Starter motor d75/90c2
-
93B7-63730-0 WasherWasher
-
103C7-76003-1 Spacer 8.4-12-21.5Spacer 8.4-12-21.5
-
3C7-76003-0 Spacer 8.4-12-21.5Spacer 8.4-12-21.5
-
113C7-76004-0 Mount Rubber AMount Rubber A
-
123FW-76005-0 Starter motor mountStarter motor mount
-
133FWB76011-0 Starter motor bracket (upper)Starter motor bracket (upper)
-
15940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
163FWB76006-0 Starter motor bracket (lower)Starter motor bracket (lower)
-
18940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
193FW-76007-0 DamperDamper
-
203FW-76009-0 Starter motor bandStarter motor band
-
21910103-5820 BoltBolt
