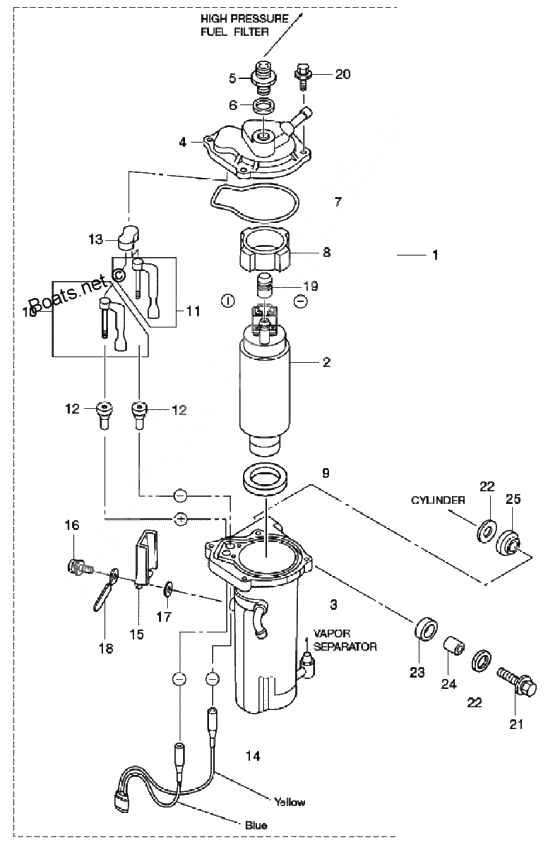

Ffp assembly для Tohatsu MD90C2 - 2011 года выпуска
-
№АртикулНазвание
-
13T1-04302-0 Fuel feed pump (ffp)Fuel feed pump (ffp)
-
23T1-04302-0 Fuel feed pump (ffp)
GSC295Fuel feed pump (ffp)
GSC295 -
33T5-04312-0 Upper Case,FFPUpper Case,FFP
-
43T5-04312-0 Upper Case,FFPUpper Case,FFP
-
53T5-04308-0 Adapter, Hose JointAdapter, Hose Joint
-
63T5-04309-0 Metal Washer, 10.2-17-2Metal Washer, 10.2-17-2
-
73T5-04116-0 Seal, FFPSeal, FFP
-
83T5-04313-0 Grommet Upper, FFPGrommet Upper, FFP
-
93T5-04314-0 Grommet, Lower FFPGrommet, Lower FFP
-
103T5-04236-0 Cable Terminal Ass'yCable Terminal Ass'y
-
113T5-04237-0 Cable Terminal Ass'y (-)Cable Terminal Ass'y (-)
-
123T5-04317-0 Grommet, Cable TerminalGrommet, Cable Terminal
-
133T5-04318-0 Grommet Upper,Cable TerminalGrommet Upper,Cable Terminal
-
143T5-04238-0 Cord, FFPCord, FFP
-
153T5-04239-0 Cover, Cord FFPCover, Cord FFP
-
17940103-0500 WasherWasher
-
18309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
193T5-04319-0 Grommet, PipeGrommet, Pipe
-
21910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
223C8-66308-0 New partNew part
-
233F3-06920-0 Mount Rubber 9-12-2Mount Rubber 9-12-2
-
24346-67114-1 SpacerSpacer
-
346-67114-0 SpacerSpacer
-
253T5-06920-0 Mount RubberMount Rubber
