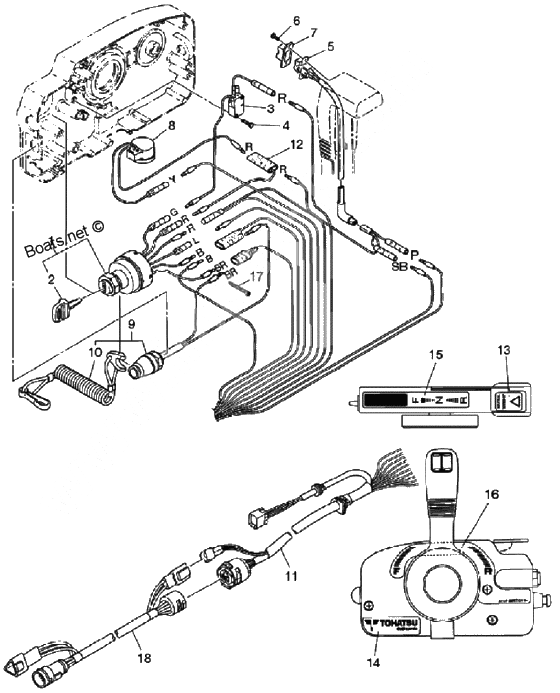

Component parts of remote control box, electrical parts для Tohatsu MD90C2 - 2011 года выпуска`
-
№АртикулНазвание
-
1353-76020-3 Main Switch Ass'yMain Switch Ass'y
-
33T5-76086-0 Neutral Switch, Remote ControlNeutral Switch, Remote Control
-
4921503-0315 Stud BoltStud Bolt
-
53A3-72560-0 Switch Ass'y (p) P-T/TSwitch Ass'y (p) P-T/T
-
6921503-0206 Stud BoltStud Bolt
-
73A3-72591-0 Switch Cover P-T/TSwitch Cover P-T/T
-
83C8-76171-0 Over-heat BuzzerOver-heat Buzzer
-
93A3-06830-0 Emergency Stop Switch B Ass'yEmergency Stop Switch B Ass'y
-
10353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
113T5-76115-1 Cord assy b (l=6200mm)Cord assy b (l=6200mm)
-
12353-72546-0 Assist Cord(Red)Assist Cord(Red)
-
133N5-84331-0 Decal (lever)Decal (lever)
-
143N5-84333-0 Decal (tohatsu)Decal (tohatsu)
-
153N5-84336-0 Decal (shift position)Decal (shift position)
-
163N5-84465-0 Decal shift position sideDecal shift position side
-
173A3-84398-0 Band Lead WireBand Lead Wire
-
183T5-76114-0 Extension Cord(11P)2mExtension Cord(11P)2m
