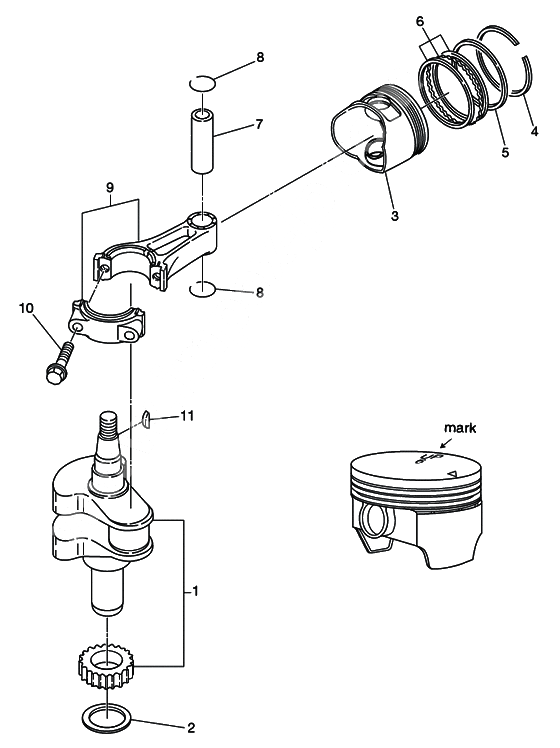

Piston & crank shaft для Tohatsu MFS4B - 2010 года выпуска`
-
№АртикулНазвание
-
13H6-00030-0 Crankshaft Cop.Crankshaft Cop.
-
23H6-00115-0 WasherWasher
-
33R4-00001-3 Piston std 4/5/6a2/b mark 6
STD / MARK 6Piston std 4/5/6a2/b mark 6
STD / MARK 6 -
33R4-00004-3 Piston 5 mm o/z 4/5/6b
OPTPiston 5 mm o/z 4/5/6b
OPT -
43H6-00011-0 Ring piston top
STDRing piston top
STD -
43H6-00014-0 Piston Ring Top 0.5 O/S
OPTPiston Ring Top 0.5 O/S
OPT -
53H6-00012-0 Ring piston 2nd
STDRing piston 2nd
STD -
53H6-00015-0 Piston Ring 2nd 0.5 O/S
OPTPiston Ring 2nd 0.5 O/S
OPT -
63H6-00013-0 Ring piston oil
STDRing piston oil
STD -
63H6-00016-0 Piston Ring Oil 0.5 O/S
OPTPiston Ring Oil 0.5 O/S
OPT -
73AE-00021-0 Piston PinPiston Pin
-
83H6-00024-0 Clip, Piston PinClip, Piston Pin
-
93H6-00040-0 Conncting Rod Ass'yConncting Rod Ass'y
-
103H6-00059-0 Bolt, Connecting RodBolt, Connecting Rod
-
11338-00131-0 Magneto KeyMagneto Key
Все узлы модели:
- Assembly - kits
- Bottom cowl & tiller handle
- Bracket & reverse lock
- Carburetor & fuel pump
- Cylinder & oil pan
- Cylinder head & valve & camshaft
- Drive shaft housing & shift
- Gear case (drive shaft & propeller shaft)
- Integral fuel tank
- Magneto
- Optional parts (1) accessories (remote control)
- Optional parts (2) accessories
- • Piston & crank shaft
- Recoil starter
- Remote control box assy.
- Separate fuel tank
- Top cowl
