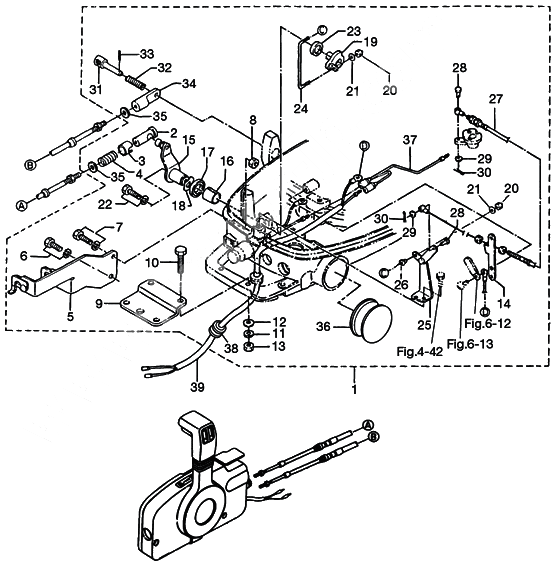

Optional parts (1) accessories (remote control) для Tohatsu MFS4B - 2010 года выпуска`
-
№АртикулНазвание
-
13AS-83880-0 Src fitting parts assySrc fitting parts assy
-
23A1-83722-0 Ball holderBall holder
-
3332-83723-0 Cap ball jointCap ball joint
-
4332-83724-0 Spring ball jointSpring ball joint
-
5369-83820-0 Cable clip ass'yCable clip ass'y
-
6910103-6616 BoltBolt
-
7910103-6625 BoltBolt
-
8930103-0600 NutNut
-
9369-83830-2 Plate, Traring HookPlate, Traring Hook
-
10910103-0830 New partNew part
-
11941303-0800 Spring WasherSpring Washer
-
12940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
13930103-0800 NutNut
-
143H6-83862-1 Bracket, throttleBracket, throttle
-
153H6-83910-1 Throttle lever a ass'yThrottle lever a ass'y
-
16369-67105-0 BushingBushing
-
17338-67147-0 New partNew part
-
18941403-1400 New partNew part
-
193H6-83920-1 Lever,throttle linkLever,throttle link
-
20930403-0300 Nylon NutNylon Nut
-
21940103-0300 WasherWasher
-
22910153-5635 BoltBolt
-
23369-83888-0 Collar throttle wire leverCollar throttle wire lever
-
243H6-83825-2 Throttle link rodThrottle link rod
-
253H6-83867-0 Throttle link ass'yThrottle link ass'y
-
263H6-63627-0 Rod busshingRod busshing
-
273H6-83863-1 Throttle WireThrottle Wire
-
283H6-63626-0 Pin,throttle wirePin,throttle wire
-
29940103-0400 WasherWasher
-
30951503-1210 Split PinSplit Pin
-
31332-83728-0 Lock PinLock Pin
-
32332-83729-0 Spring WasherSpring Washer
-
33951403-0212 Spring WasherSpring Washer
-
34369-83715-1 Sleeve B GuideSleeve B Guide
-
35332-83725-0 WasherWasher
-
363H6-67161-0 Grommet. 43-23Grommet. 43-23
-
373AS-83883-0 Separate CordSeparate Cord
-
38345-66226-0 Grommet, 17-3Grommet, 17-3
-
39369-83846-0 R.c.stop cord(2.0m)R.c.stop cord(2.0m)
-
39369-83848-0 R.c. stop cord 3.2mR.c. stop cord 3.2m
-
39369-83853-0 R.c. stop cord 3.9mR.c. stop cord 3.9m
-
39369-83858-0 R.c. Stop Cord 5.9mR.c. Stop Cord 5.9m
Все узлы модели:
- Assembly - kits
- Bottom cowl & tiller handle
- Bracket & reverse lock
- Carburetor & fuel pump
- Cylinder & oil pan
- Cylinder head & valve & camshaft
- Drive shaft housing & shift
- Gear case (drive shaft & propeller shaft)
- Integral fuel tank
- Magneto
- • Optional parts (1) accessories (remote control)
- Optional parts (2) accessories
- Piston & crank shaft
- Recoil starter
- Remote control box assy.
- Separate fuel tank
- Top cowl
