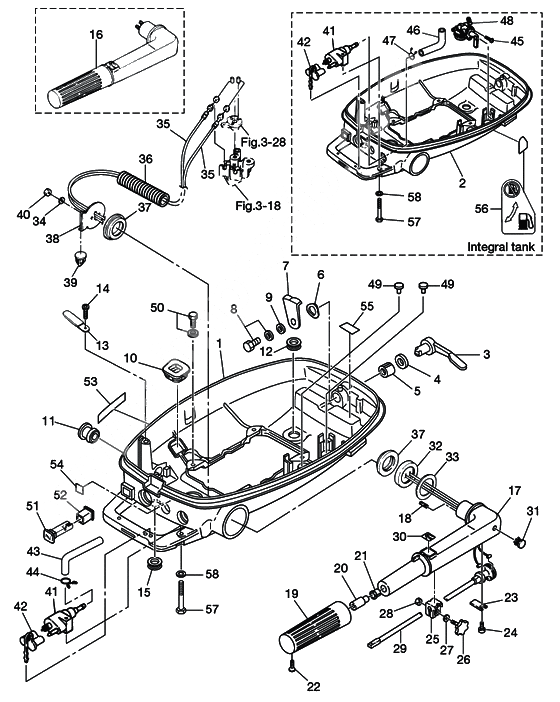

Bottom cowl & tiller handle для Tohatsu MFS4B - 2010 года выпуска`
-
№АртикулНазвание
-
13H6Q67100-2 Lower motor cover separate tank f5/6b (amb)Lower motor cover separate tank f5/6b (amb)
-
23H9Q67100-2 Lower motor cover integral tank f4/5/6b (amb)Lower motor cover integral tank f4/5/6b (amb)
-
3369Q67141-1 Hook lever (amb)Hook lever (amb)
-
4338-67147-0 New partNew part
-
5369-67105-0 BushingBushing
-
6941403-1400 New partNew part
-
73H6-67142-0 Cover, hookCover, hook
-
8910103-6612 BoltBolt
-
93C8-66308-0 New partNew part
-
10369-67188-0 Grommet starter lock rodGrommet starter lock rod
-
11369-67187-0 Grommet throttle leverGrommet throttle lever
-
12338-67163-0 Supporting Rubber Fuel PipeSupporting Rubber Fuel Pipe
-
13309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
14921503-0612 Stud BoltStud Bolt
-
15345-67117-0 New partNew part
-
163ASQ63005-0 Tiller handle sub-assy (amb)Tiller handle sub-assy (amb)
-
173H6Q63011-0 Tiller handle (amb)Tiller handle (amb)
-
183B2-63104-1 Stud BoltStud Bolt
-
19369-63012-1 GripGrip
-
203H6-63048-0 Rubber, Shrottle ShaftRubber, Shrottle Shaft
-
213H6-63510-0 BushingBushing
-
22920803-0518 Stud BoltStud Bolt
-
233B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
249215E3-0612 ScrewScrew
-
921503-0612 ScrewScrew
-
253B2-63035-1 Friction Piece GripFriction Piece Grip
-
263B2-63034-0 Adjust ScrewAdjust Screw
-
27940103-0600 WasherWasher
-
28930103-0600 NutNut
-
293B2-63041-0 Throttle ShaftThrottle Shaft
-
30369-72019-1 Lable throttleLable throttle
-
31350-67154-0 New partNew part
-
323H6-63026-0 Spacer, HandleSpacer, Handle
-
333B2-63108-0 WasherWasher
-
34941303-0600 New partNew part
-
353H6-63600-1 Throttle WireThrottle Wire
-
363H6-06133-0 Protector,wire HarnessProtector,wire Harness
-
373H6-63102-0 Bushing, Steering HandleBushing, Steering Handle
-
383H6-63103-0 Stopper,steering handleStopper,steering handle
-
393H6-67154-0 Anchor clip 6.5Anchor clip 6.5
-
40930103-0600 NutNut
-
41394-70260-0 Fuel conector(enginemale)Fuel conector(enginemale)
-
423H6-70262-0 Propeller Fuel ConectorPropeller Fuel Conector
-
433H6-02203-0 Fuel pipe,4.5l-75Fuel pipe,4.5l-75
-
44338-02215-0 ClipClip
-
45921803-0410 Stud BoltStud Bolt
-
46394-70325-0 Fuel pipe fFuel pipe f
-
47338-02215-0 ClipClip
-
483H9-70311-0 Fuel CockFuel Cock
-
493AS-67161-0 GrommetGrommet
-
509101E3-5616 Bolt & washerBolt & washer
-
513H6-67151-0 Choke RodChoke Rod
-
523H6-67104-0 Bushing choke rodBushing choke rod
-
533H6-67572-0 LABEL, STORAGELABEL, STORAGE
-
543H6-76199-0 Label,oil PressureLabel,oil Pressure
-
553H6-72026-0 Label, Spark PlugLabel, Spark Plug
-
563H9-72024-0 Decal, fuel lever bDecal, fuel lever b
-
57910103-0640 BoltBolt
-
58940103-0600 WasherWasher
