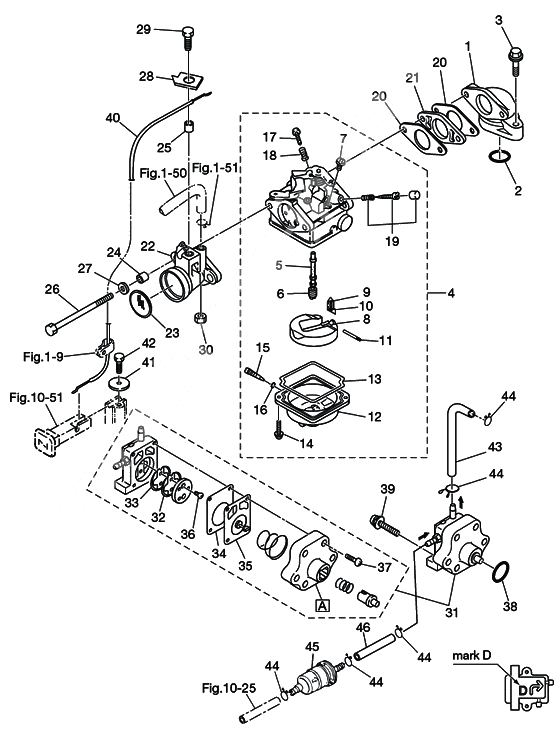

Carburetor & fuel pump для Tohatsu MFS4B - 2010 года выпуска`
-
№АртикулНазвание
-
23H6-02104-0 O-RingO-Ring
-
3910124-5625 Bolt
4PSBolt
4PS -
3910124-5630 Bolt
4PSBolt
4PS -
43AT-03200-0 Carburetor assy mfs/nsf4b
4PS / 3ATACarburetor assy mfs/nsf4b
4PS / 3ATA -
53AT-03252-0 Main nozzle f4b
4PSMain nozzle f4b
4PS -
63H9-03251-0 Main jet #60
4PSMain jet #60
4PS -
63DJ-04458-0 Main jet #58
4PS FOR EU ONLYMain jet #58
4PS FOR EU ONLY -
73R6-03254-0 Pilot Jet #42(High Alt)
4PSPilot Jet #42(High Alt)
4PS -
83H6-03231-0 FloatFloat
-
93H6-03240-0 Float ValveFloat Valve
-
103H6-03244-0 ClipClip
-
113H6-03232-0 Aym Pin, FloatAym Pin, Float
-
123H6-03221-0 Float ChamberFloat Chamber
-
133H6-03222-0 Gasket,float ChamberGasket,float Chamber
-
14922503-6412 Stud BoltStud Bolt
-
153H6-03292-0 Drain ScrewDrain Screw
-
163H6-03293-0 O-ring,drain ScrewO-ring,drain Screw
-
173H6-03265-0 Stop ScrewStop Screw
-
183H6-03267-0 Spring,stop ScrewSpring,stop Screw
-
193AS-03266-0 Pilot screw set
STDPilot screw set
STD -
203H6-02011-0 Gasket, carburetorGasket, carburetor
-
213H6-03952-1 InsulatorInsulator
-
223H6-02411-0 Air SilencerAir Silencer
-
233H6-02603-0 Flam TrapFlam Trap
-
243A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
253H6-76079-1 Collar 6.2-9-7.4Collar 6.2-9-7.4
-
3H6-76079-0 Collar 6.2-9-7.4Collar 6.2-9-7.4
-
269164F1-0685 BoltBolt
-
27940103-0600 WasherWasher
-
283H6-63505-0 Holder, CableHolder, Cable
-
29910103-0616 BoltBolt
-
30930103-0600 NutNut
-
313H6-04000-4 Fuel pump 4/5/6/8/9.8 4-str only
MARK DFuel pump 4/5/6/8/9.8 4-str only
MARK D -
3H6-04000-7 Fuel pump 4/5/6/8/9.8 4-str onlyFuel pump 4/5/6/8/9.8 4-str only
-
323H6-04044-0 Check Valve
BLACKCheck Valve
BLACK -
333H6-04014-1 Check Valve
WHITECheck Valve
WHITE -
343H6-04028-0 O-RingO-Ring
-
353H6-04005-0 DiaphragmDiaphragm
-
36921603-0308 Stud BoltStud Bolt
-
37922503-6418 Stud BoltStud Bolt
-
383H6-07422-0 New partNew part
-
39921503-7630 Stud BoltStud Bolt
-
403H6-67192-0 Wire,choke linkWire,choke link
-
41346-67115-0 WasherWasher
-
42910103-0612 New partNew part
-
433H6-02204-0 Fuel pipe,4.5l-115Fuel pipe,4.5l-115
-
44338-02215-0 ClipClip
-
45369-02230-0 Фильтр топливныйФильтр топливный
-
4698AB-5-0180 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
