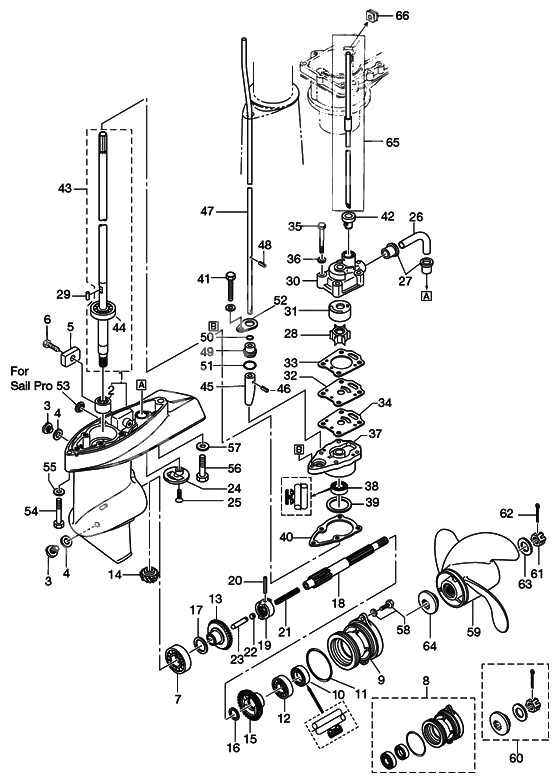

Gear case (drive shaft & propeller shaft) для Tohatsu MFS4B - 2010 года выпуска
-
№АртикулНазвание
-
1369Q60000-3 Gear case (amb)
STDGear case (amb)
STD -
2369-60211-0 Needle BearingNeedle Bearing
-
3332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
4332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
53H6-60218-0 AnodeAnode
-
6910103-0616 BoltBolt
-
79601-0-6004 Ball BearingBall Bearing
-
8369Q87323-1 Propeller shaft housing assy (amb)Propeller shaft housing assy (amb)
-
9369Q60101-1 Propeller shaft housing (amb)Propeller shaft housing (amb)
-
10369-60111-0 Oil SealOil Seal
-
11345-65015-0 O-RingO-Ring
-
129601-0-6002 Ball BearingBall Bearing
-
13369-64010-2 Bevel Gear A Ass'y (with Bushing)Bevel Gear A Ass'y (with Bushing)
-
14369-64020-2 Bevel Gear BBevel Gear B
-
15369-64030-2 Bevel Gear CBevel Gear C
-
16369-64032-0 WasherWasher
-
17369-64014-0 Shim 21-28-0.1
T=0.1Shim 21-28-0.1
T=0.1 -
17369-64015-0 Shim 21-28-0.15
T=0.15Shim 21-28-0.15
T=0.15 -
18369-64211-1 Propeller ShaftPropeller Shaft
-
19301-64215-1 ClutchClutch
-
20301-64217-0 Pin ClutchPin Clutch
-
21393-64221-0 Spring ClutchSpring Clutch
-
22369-64222-0 Spring holder clutchSpring holder clutch
-
23369-64223-0 Push Rod ClutchPush Rod Clutch
-
24369-60206-0 Water StrainerWater Strainer
-
25921803-0620 Stud BoltStud Bolt
-
26369-65035-0 Water Pipe LowerWater Pipe Lower
-
27369-65036-0 Seal Rubber Water Pipe LowerSeal Rubber Water Pipe Lower
-
28369-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
29369-65022-0 Key water pump impellerKey water pump impeller
-
30369-65016-0 Water Pump CaseWater Pump Case
-
31369-65011-0 Liner Water Pump CaseLiner Water Pump Case
-
32369-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
33369-65018-0 Gasket water pump caseGasket water pump case
-
34369-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
359161E3-0645 BoltBolt
-
36940103-0600 WasherWasher
-
37369-65017-1 Pump Case LowerPump Case Lower
-
38369-60223-0 Oil SealOil Seal
-
39369-64081-1 Shim, 26. 5-34. 8-0.1
T=0.1Shim, 26. 5-34. 8-0.1
T=0.1 -
39369-64082-1 Shim, 26. 5-34. 8-0.15
T=0.15Shim, 26. 5-34. 8-0.15
T=0.15 -
40369-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
41910103-5625 BoltBolt
-
42369-65014-0 Seal rubber lower water pipeSeal rubber lower water pipe
-
43369-64301-0 Drive Shaft S
FOR TRANSOM SDrive Shaft S
FOR TRANSOM S -
43369-64302-0 Drive shaft l
FOR TRANSOM LDrive shaft l
FOR TRANSOM L -
43369-64303-0 Drive Shaft UL
FOR TRANSOM ULDrive Shaft UL
FOR TRANSOM UL -
449601-0-6300 Ball BearingBall Bearing
-
45369-66011-0 Clutch CamClutch Cam
-
46951407-0310 Spring WasherSpring Washer
-
47369-66012-0 Cam rod s
FOR TRANSOM SCam rod s
FOR TRANSOM S -
47369-66013-0 Cam Rod L
FOR TRANSOM LCam Rod L
FOR TRANSOM L -
47369-66014-1 Cam Rod UL
FOR TRANSOM ULCam Rod UL
FOR TRANSOM UL -
369-66014-2 Cam Rod ULCam Rod UL
-
48951407-0312 Spring WasherSpring Washer
-
49369-66031-0 Bushing Cam RodBushing Cam Rod
-
50369-66021-1 O?????2.5-4.9O?????2.5-4.9
-
51332-66032-0 O?????2.4-15.4O?????2.4-15.4
-
52369-66033-0 Stopper Cam Rod BushingStopper Cam Rod Bushing
-
533DK-61016-0 Grommet
FOR 6PS UL SAIL PROGrommet
FOR 6PS UL SAIL PRO -
549161E3-0645 BoltBolt
-
559401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
569161E3-0835 BoltBolt
-
579401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
589101E3-5616 Bolt & washerBolt & washer
-
59399B64512-1 Prop 4/5/6hp 8.375in dia x 6in pitch (elephant ear)
FOR SAIL PRO L ULProp 4/5/6hp 8.375in dia x 6in pitch (elephant ear)
FOR SAIL PRO L UL -
593R1B64514-0 Prop 4/5/6hp (7.7 dia. x 7 pitch)
STD:4PS S LProp 4/5/6hp (7.7 dia. x 7 pitch)
STD:4PS S L -
3R1B64514-1 Prop 4/5/6hp (7.7 dia. x 7 pitch)Prop 4/5/6hp (7.7 dia. x 7 pitch)
-
593R1B64516-1 Prop 4/5/6hp (7.7 dia. x 8 pitch)
STD:5/6PS S LProp 4/5/6hp (7.7 dia. x 8 pitch)
STD:5/6PS S L -
59369B64518-1 Prop 4/5/6hp (7.9 dia. x 9 pitch)
OPTProp 4/5/6hp (7.9 dia. x 9 pitch)
OPT -
603H6-87326-0 Propeller Hardwear KitPropeller Hardwear Kit
-
61369-64121-0 Nut PropellerNut Propeller
-
62951503-0318 New partNew part
-
63369-64124-0 WasherWasher
-
643AS-64230-0 Thrust holder propellerThrust holder propeller
-
65369-65100-0 Water pipe s
FOR TRANSOM SWater pipe s
FOR TRANSOM S -
65369-65110-0 Water Pipe L
FOR TRANSOM LWater Pipe L
FOR TRANSOM L -
65369-65120-0 Water Pipe UL
FOR TRANSOM ULWater Pipe UL
FOR TRANSOM UL -
66369-65195-0 Grommet, Water Pipe UpperGrommet, Water Pipe Upper
