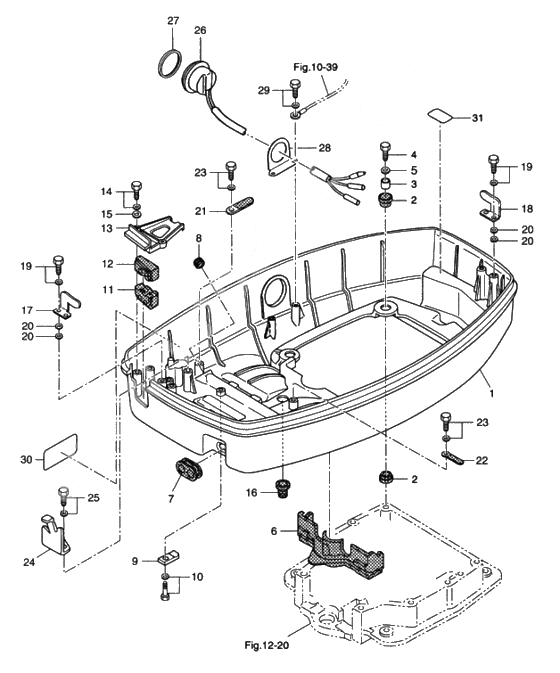

Motor cover lower для Tohatsu M115A2 - 2003 года выпуска`
-
№АртикулНазвание
-
13C7S67100-1 Lower motor cover
140A2 #13832~ / 120A2 # 22717~Lower motor cover
140A2 #13832~ / 120A2 # 22717~ -
2345-67113-0 Mount RubberMount Rubber
-
33C7-67114-0 Spacer 8.4-12-17Spacer 8.4-12-17
-
4910113-0835 BoltBolt
-
53B7-63730-0 WasherWasher
-
63C7-67164-0 Grommet A Lower CoverGrommet A Lower Cover
-
73C7-67160-0 Grommet oil pipeGrommet oil pipe
-
83C7-77156-0 GrommetGrommet
-
93C7-72577-0 ClampClamp
-
10910113-5616 BoltBolt
-
113C7-76116-0 Grommet CordGrommet Cord
-
123C7-83732-0 Grommet Remote Control CableGrommet Remote Control Cable
-
133C7S76118-0 ClampClamp
-
14910103-6625 BoltBolt
-
15940113-0600 WasherWasher
-
16345-66226-0 Grommet, 17-3Grommet, 17-3
-
17353-67512-0 Cover stay(front)Cover stay(front)
-
18353-67513-0 Cover stay(rear)Cover stay(rear)
-
19910103-6618 BoltBolt
-
20940113-0600 WasherWasher
-
21353-06972-0 ClampClamp
-
22309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
23910103-6612 BoltBolt
-
243B7-83720-0 Cable ClipCable Clip
-
25910103-6616 BoltBolt
-
263E0-72615-0 Switch b ass'y p-t/t
140A2 #13832~ / 120A2 # 22717~Switch b ass'y p-t/t
140A2 #13832~ / 120A2 # 22717~ -
273F3-72616-1 Gasket Ptt Switch Ass'y
140A2 #13832~ / 120A2 # 22717~Gasket Ptt Switch Ass'y
140A2 #13832~ / 120A2 # 22717~ -
283F3-72617-1 Bracket,PTT Switch Ass'y
140A2 #13832~ / 120A2 # 22717~Bracket,PTT Switch Ass'y
140A2 #13832~ / 120A2 # 22717~ -
29910103-6614 Bolt
140A2 #13832~ / 120A2 # 22717~Bolt
140A2 #13832~ / 120A2 # 22717~ -
303C7-72030-0 Label, InterfernceLabel, Interfernce
