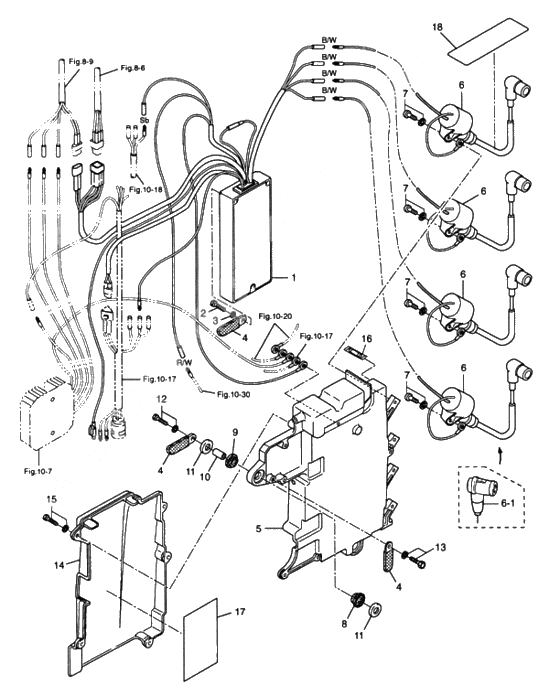

Electric parts (c.d. unit) для Tohatsu M115A2 - 2003 года выпуска
-
№АртикулНазвание
-
13C7-06160-1 C.D. Unit
140A2 # 12195~ / 120A2 # 21756~C.D. Unit
140A2 # 12195~ / 120A2 # 21756~ -
2910403-0540 BoltBolt
-
3940103-0500 WasherWasher
-
4309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
63C7-06040-0 Ignition CoilIgnition Coil
-
6-13C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
7910103-5620 Bolt
OR 910113-5620Bolt
OR 910113-5620 -
83B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
9346-67113-0 Mount RubberMount Rubber
-
10346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
11346-67115-0 WasherWasher
-
12910103-6630 BoltBolt
-
13910103-6612 BoltBolt
-
143C7-06902-2 Cover electric bracket
140A2 # 12174~ / 120A2 # 21739~Cover electric bracket
140A2 # 12174~ / 120A2 # 21739~ -
15910113-5620 BoltBolt
-
16353-76213-0 Fuse(20ah)
20AFuse(20ah)
20A -
183C8-72181-0 Caution labelCaution label
