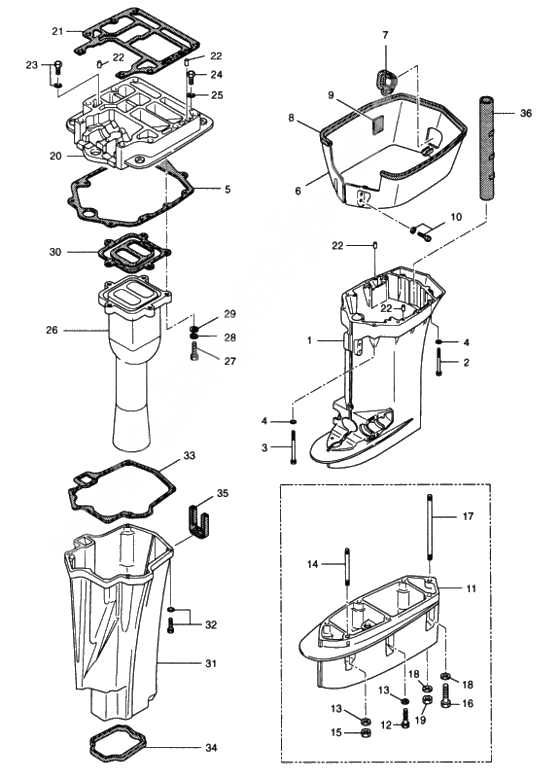

Drive shaft housing для Tohatsu M115A2 - 2003 года выпуска
-
№АртикулНазвание
-
13C7S61030-0 Drive shaft housing lDrive shaft housing l
-
23C7-61017-1 Bolt,10-107Bolt,10-107
-
33C7-61018-1 Bolt,10-120Bolt,10-120
-
4940213-1000 WasherWasher
-
53C7-61012-0 Gasket drive shaft housingGasket drive shaft housing
-
63C7S61210-1 Splash panSplash pan
-
73C7-61212-0 Grommet,splash panGrommet,splash pan
-
83E0-61213-0 Seal Rubber Splash PanSeal Rubber Splash Pan
-
93C7-61216-0 Set rubber,splash panSet rubber,splash pan
-
10910113-5612 BoltBolt
-
113B7S61110-0 Extension housing ul
FOR TRANSOM ULExtension housing ul
FOR TRANSOM UL -
12916189-0835 Bolt 8-35
FOR TRANSOM ULBolt 8-35
FOR TRANSOM UL -
13940113-0800 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL -
14915313-0825 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL -
15930113-0800 Nut
FOR TRANSOM ULNut
FOR TRANSOM UL -
163B7-60001-2 Bolt, 10-40
FOR TRANSOM ULBolt, 10-40
FOR TRANSOM UL -
173B7-61112-0 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL -
18940213-1000 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL -
193B7-61114-0 Nut
FOR TRANSOM ULNut
FOR TRANSOM UL -
203C7S01301-0 Engine baseEngine base
-
213C7-01303-0 Gasket, engine baseGasket, engine base
-
22345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
23910113-5635 BoltBolt
-
243C7-01312-0 Bolt, 8-50Bolt, 8-50
-
25940213-0800 WasherWasher
-
263C7-02311-0 Exhaust PipeExhaust Pipe
-
27910114-0835 BoltBolt
-
28941303-0800 Spring WasherSpring Washer
-
29940213-0800 WasherWasher
-
303C7-02312-0 Gasket, Exhaust PipeGasket, Exhaust Pipe
-
313B7-61180-0 Exhaust HousingExhaust Housing
-
32910113-5830 BoltBolt
-
333B7-61181-0 New partNew part
-
343B7-61182-0 Grommet, exhaust housingGrommet, exhaust housing
-
353B7-61207-0 Grommet, Idle PortGrommet, Idle Port
-
363B7-61186-0 Reverse Gas PassageReverse Gas Passage
