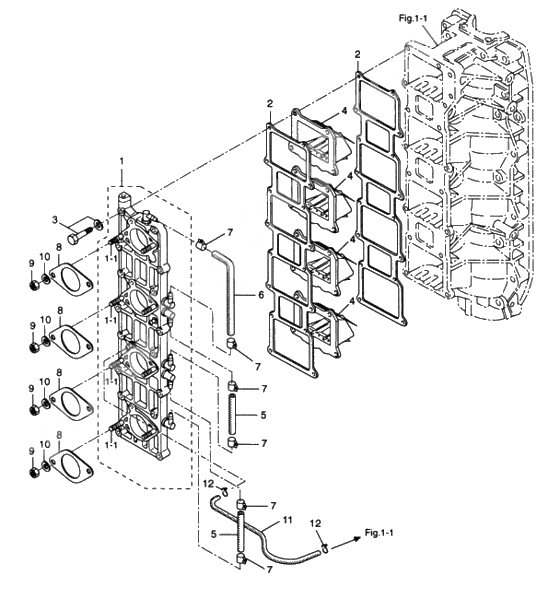

Inlet - reed valve для Tohatsu M115A2 - 2003 года выпуска
-
№АртикулНазвание
-
13C7B02010-0 Inlet manifold ass'yInlet manifold ass'y
-
1-1915321-0618 Stud BoltStud Bolt
-
23C7-02104-0 Gasket, inlet manifoldGasket, inlet manifold
-
43A3-02100-0 Reed Valve Ass'yReed Valve Ass'y
-
698AB-7-0180 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
7345-70114-0 ClipClip
-
83C7-02011-0 Gasket, carburetorGasket, carburetor
-
9930113-0600 NutNut
-
10941303-0600 New partNew part
-
119807-3-0470 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
12338-01133-0 ClipClip
