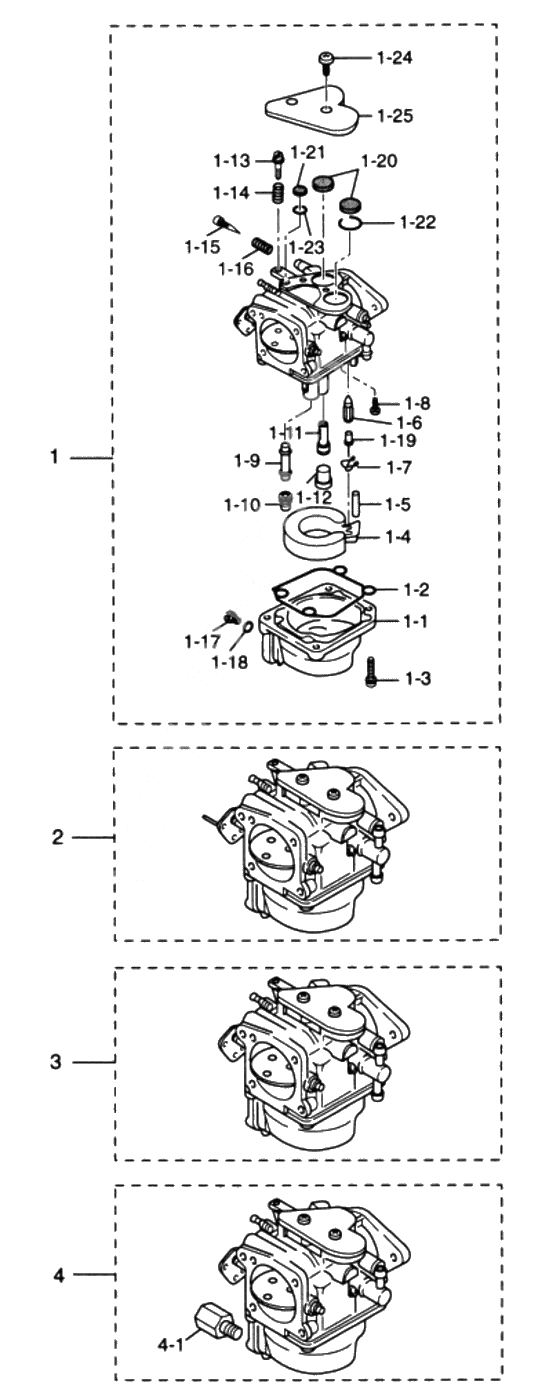

Carburetor для Tohatsu M115A2 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3E0-03200-1 Carburetor upper ass'y
    120A2 #21577~
    Carburetor upper ass'y
    120A2 #21577~
  • 1-1
    353-03221-0 Float Chamber
    X 4 UPPER SECOND THIRD LOWER
    Float Chamber
    X 4 UPPER SECOND THIRD LOWER
  • 1-10
    3C7-03251-0 Жиклер главный
    X 4
    Жиклер главный
    X 4
  • 1-11
    3C7-03255-0 Slow jet(#75)
    X 4
    Slow jet(#75)
    X 4
  • 1-12
    346-03256-0 Rubber cap
    X 4
    Rubber cap
    X 4
  • 1-13
    346-03265-0 Stop Screw
    CARBURETOR UPPER
    Stop Screw
    CARBURETOR UPPER
  • 1-14
    346-03267-0 Spring a
    CARBURETOR UPPER
    Spring a
    CARBURETOR UPPER
  • 1-15
    346-03266-0 Adjust Screw
    X 4
    Adjust Screw
    X 4
  • 1-16
    353-03268-0 Spring B
    X 4
    Spring B
    X 4
  • 1-17
    345-03292-0 Drain Screw
    X 3 UPPER SECOND THIRD
    Drain Screw
    X 3 UPPER SECOND THIRD
  • 1-18
    336-03293-0 O-Ring
    X 4
    O-Ring
    X 4
  • 1-19
    334-03242-0 Игольчатый клапан
    X 4
    Игольчатый клапан
    X 4
  • 1-2
    346-03222-0 O-ring, float
    X 4
    O-ring, float
    X 4
  • 1-20
    3C7-03182-0 Gasket a, carburetor cover
    X 4
    Gasket a, carburetor cover
    X 4
  • 1-21
    3C7-03183-0 Gasket b, carburetor cover
    X 4
    Gasket b, carburetor cover
    X 4
  • 1-22
    3C7-03184-0 Plate a, cover gasket
    X 4
    Plate a, cover gasket
    X 4
  • 1-23
    3C7-03185-0 Plate b, cover gasket
    X 4
    Plate b, cover gasket
    X 4
  • 1-24
    3C7-03186-0 Stud Bolt
    X 4
    Stud Bolt
    X 4
  • 1-3
    922503-6414 Stud Bolt
    X 4
    Stud Bolt
    X 4
  • 1-4
    346-03231-0 Float
    X 4
    Float
    X 4
  • 1-5
    346-03232-0 Arm Pin Float
    X 4
    Arm Pin Float
    X 4
  • 1-6
    3B7-03240-0 Float Valve
    X 4
    Float Valve
    X 4
  • 1-7
    344-03244-0 Clip
    X 4
    Clip
    X 4
  • 1-8
    3F3-03234-0 Screw arm pin
    X 4
    Screw arm pin
    X 4
  • 1-9
    3C7-03252-0 Main Nozzle
    X 4
    Main Nozzle
    X 4
  • 2
    3C7-03204-1 Carburetor second ass'y
    140A2 # 11885~ / 120A2 # 21577~
    Carburetor second ass'y
    140A2 # 11885~ / 120A2 # 21577~
  • 3
    3C7-03205-1 Carburetor third ass'y
    Carburetor third ass'y
  • 4
    3C7-03210-1 Carburetor lower ass'y
    Carburetor lower ass'y
  • 4-1
    3C7-03292-0 Drain screw(lower)
    CARBURETOR LOWER
    Drain screw(lower)
    CARBURETOR LOWER
