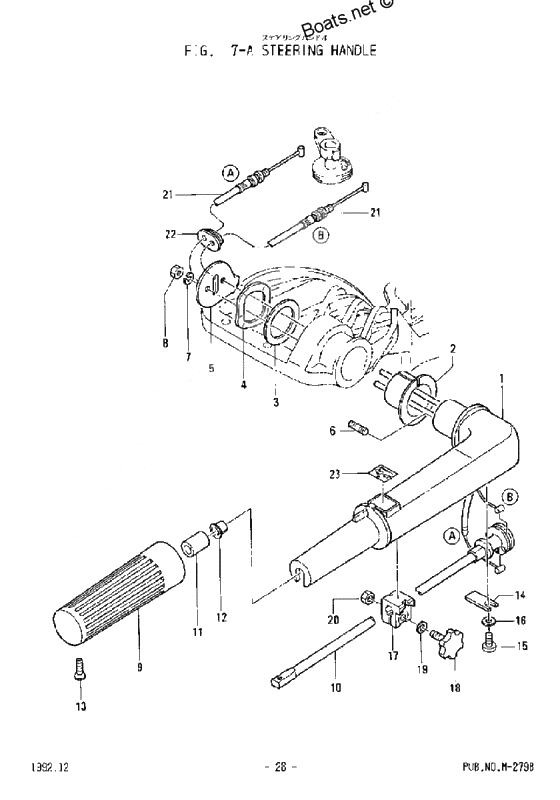

Steering handle для Tohatsu M8B - 2002 года выпуска
-
№АртикулНазвание
-
13B2-63011-0 Steering handle
Blue, -52085Steering handle
Blue, -52085 -
1NB2-63011-0 Steering handle
Gray, Not Interchangeable, 52086-Steering handle
Gray, Not Interchangeable, 52086- -
23B2-63102-0 Bushing handleBushing handle
-
33B2-63108-0 WasherWasher
-
43B2-63109-0 WasherWasher
-
53B2-63103-0 Stopper steering handleStopper steering handle
-
63B2-63104-0 Stud BoltStud Bolt
-
7941303-0600 New partNew part
-
8930103-0600 NutNut
-
9350-63012-0 GripGrip
-
103B2-63041-0 Throttle ShaftThrottle Shaft
-
11345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
12350-63046-0 BushingBushing
-
13920-83051-8 ScrewScrew
-
920803-0518 ScrewScrew
-
143B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
15910103-0612 New partNew part
-
16940-13060-0 WasherWasher
-
173B2-63035-0 Friction piece, gripFriction piece, grip
-
183B2-63034-0 Adjust ScrewAdjust Screw
-
213B2-63600-1 Throttle WireThrottle Wire
-
223B2-63621-0 Grommet throttle wireGrommet throttle wire
-
23369-72019-0 Label, throttleLabel, throttle
