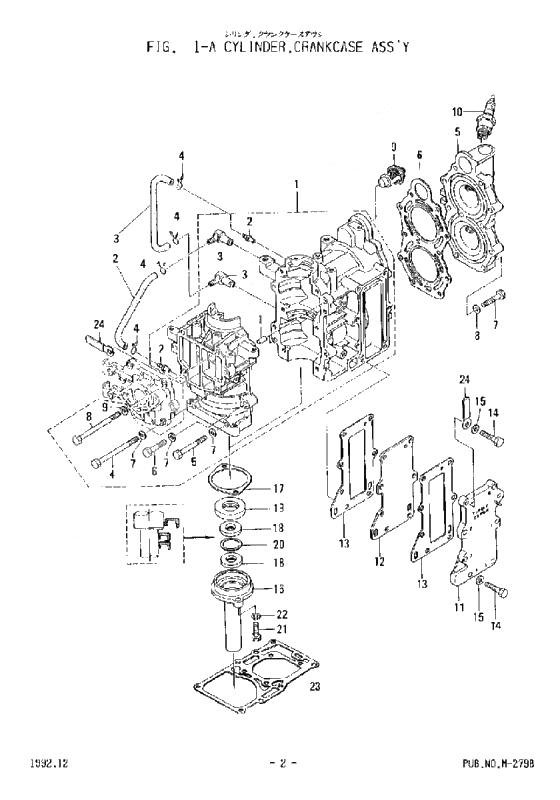

Cylinder - crank case assy для Tohatsu M8B - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3B2-01100-0 Cylinder & crankcase assy
    -40400
    Cylinder & crankcase assy
    -40400
  • 1
    3B2-01100-1 Cylinder & crankcase assy
    Blue, Only New Parts are Interchangeable with Older Parts, 40401-52085
    Cylinder & crankcase assy
    Blue, Only New Parts are Interchangeable with Older Parts, 40401-52085
  • 1
    345-01111-0 Dowel Pin 6-12
    Dowel Pin 6-12
  • 2
    9807-3-0120 Lubrication pipe
    D3-D7-120MM
    Lubrication pipe
    D3-D7-120MM
  • 2
    338-01131-1 Золотник
    Not for Sale
    Золотник
    Not for Sale
  • 3
    9807-3-0230 Lubrication pipe
    D3-D7-230MM
    Lubrication pipe
    D3-D7-230MM
  • 3
    348-01160-0 Check valve nipple assy
    Not for Sale
    Check valve nipple assy
    Not for Sale
  • 4
    916-14067-5 Bolt
    Bolt
  • 4
    338-01133-0 Clip
    Clip
  • 5
    916-14065-0 Bolt
    Bolt
  • 5
    3B2-01001-0 Cylinder head
    -40400
    Cylinder head
    -40400
  • 5
    3B2-01001-1 Cylinder head
    Blue, Only New Parts are Interchangeable with Older Parts, 40401-52085
    Cylinder head
    Blue, Only New Parts are Interchangeable with Older Parts, 40401-52085
  • 6
    916-14063-0 Bolt, cylinder head
    Bolt, cylinder head
  • 6
    3B2-01005-0 New part
    New part
  • 3B2-01005-1 New part
    New part
  • 7
    940-11060-0 Washer
    Washer
  • 8
    910124-0880 Bolt
    Bolt
  • 9
    350-01030-0 Thermostat
    -36350
    Thermostat
    -36350
  • 9
    350-01030-1 Thermostat
    Interchangeable with Older and Newer Parts, 36351-
    Thermostat
    Interchangeable with Older and Newer Parts, 36351-
  • 9
    940-11080-0 Washer
    Washer
  • 10
    9701-0-1010 Spark plug
    NGK BP7HS-10
    Spark plug
    NGK BP7HS-10
  • 10
    9701-0-1014 Spark plug (bpr7hs-10)
    BPR7HS-10 (for Canada)
    Spark plug (bpr7hs-10)
    BPR7HS-10 (for Canada)
  • 11
    3B2-02301-0 Exhaust cover, outer
    Blue, -52085
    Exhaust cover, outer
    Blue, -52085
  • 11
    3B2B02300-0 Exhaust cover outer
    Gray, Not Interchangeable, 52086-
    Exhaust cover outer
    Gray, Not Interchangeable, 52086-
  • 12
    3B2B02302-0 Exhaust Cover Inner
    Exhaust Cover Inner
  • 3B2-02302-0 Exhaust Cover Inner
    Exhaust Cover Inner
  • 13
    3B2-02305-0 Gasket exhaust cover
    Gasket exhaust cover
  • 14
    910-14062-5 Bolt
    Bolt
  • 16
    3B2-01210-0 Head crank case
    Head crank case
  • 17
    3B2-01214-0 Gasket Crank Case Head
    Gasket Crank Case Head
  • 18
    3B2-01215-0 Oil seal 12-28-5
    Oil seal 12-28-5
  • 19
    3B2-00122-0 Oil seal 20-40-7
    Oil seal 20-40-7
  • 20
    3B2-01217-0 Spacer 22-27.5-1
    Spacer 22-27.5-1
  • 21
    910103-0620 Bolt
    Bolt
  • 22
    941303-0600 New part
    New part
  • 23
    3B2-01303-0 New part
    New part
  • 3B2-01303-2 New part
    New part
  • 24
    309-06972-0 Clamp,6.5-47.5P
    Clamp,6.5-47.5P
