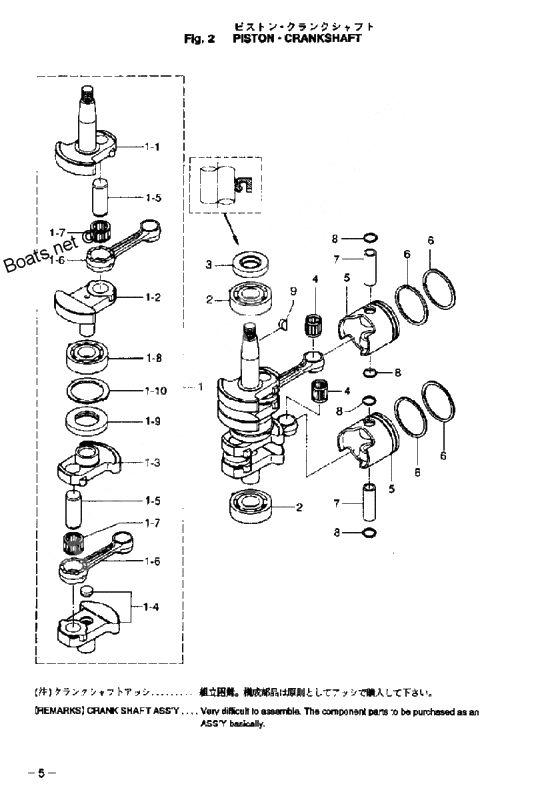

Piston & crank shaft для Tohatsu M8B - 2002 года выпуска
-
№АртикулНазвание
-
13B2-00030-0 Crankshaft assyCrankshaft assy
-
3B2-00069-0 Crankshaft assyCrankshaft assy
-
13B2B02010-0 Inlet ManifoldInlet Manifold
-
1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
13B2B01100-1 Cylinder & crankcase assy
8B#40401-Cylinder & crankcase assy
8B#40401- -
1-13B2-00031-0 Вал коленчатыйВал коленчатый
-
1-10369-00115-0 Retainer ball bearingRetainer ball bearing
-
1-23B2-00032-0 Crankshaft bCrankshaft b
-
1-33B2-00033-0 Кольцо стопорноеКольцо стопорное
-
1-43B2-00034-0 Crankshaft dCrankshaft d
-
1-53B2-00061-0 Crank pinCrank pin
-
1-63B2-00040-0 Connecting RodConnecting Rod
-
1-73B2-00043-0 Needle BearingNeedle Bearing
-
1-89603-3-6204 Ball BearingBall Bearing
-
1-93B2-00051-0 Oil seal 25-47-7Oil seal 25-47-7
-
2338-01131-1 ЗолотникЗолотник
-
3101-00121-0 Oil seal,20-35-7Oil seal,20-35-7
-
33B2-01160-0 Check valve nipple assyCheck valve nipple assy
-
4338-00042-0 Needle BearingNeedle Bearing
-
4338-01133-0 ClipClip
-
4916129-0675 BoltBolt
-
53B2-00001-0 Piston (std)Piston (std)
-
53B2-00004-0 Piston (0.5mm o/s)
OPTPiston (0.5mm o/s)
OPT -
53B2-00061-0 Crank pinCrank pin
-
53B2B01001-1 Головка цилиндров
8B #40401-Головка цилиндров
8B #40401- -
5916129-0650 BoltBolt
-
63B2-00011-0 Кольцо поршняКольцо поршня
-
63B2-00014-0 Кольцо поршняКольцо поршня
-
63B2-00040-0 Connecting RodConnecting Rod
-
7940121-0600 WasherWasher
-
73B2-00021-0 Палец поршняПалец поршня
-
73B2-00043-0 Needle BearingNeedle Bearing
-
8910124-0880 BoltBolt
-
8350-00024-0 ClipClip
-
89603-3-6204 Ball BearingBall Bearing
-
8350-00024-1 Clip piston pinClip piston pin
-
93B2-00051-0 Oil seal 25-47-7Oil seal 25-47-7
-
9338-00131-0 Magneto KeyMagneto Key
-
9940121-0800 WasherWasher
-
9350-01030-1 ThermostatThermostat
-
10369-00115-0 Retainer ball bearingRetainer ball bearing
-
113B2B02300-0 Exhaust cover outerExhaust cover outer
-
123B2B02302-0 Exhaust Cover InnerExhaust Cover Inner
-
3B2-02302-0 Exhaust Cover InnerExhaust Cover Inner
-
133B2-02305-0 Gasket exhaust coverGasket exhaust cover
-
14910124-0625 BoltBolt
-
163B2-01210-0 Head crank caseHead crank case
-
173B2-01214-0 Gasket Crank Case HeadGasket Crank Case Head
-
183B2-01215-0 Oil seal 12-28-5Oil seal 12-28-5
-
193B2-00122-0 Oil seal 20-40-7Oil seal 20-40-7
-
203B2-01217-0 Spacer 22-27.5-1Spacer 22-27.5-1
-
21910103-6620 BoltBolt
-
223B2-01303-0 New partNew part
-
3B2-01303-2 New partNew part
-
23309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
