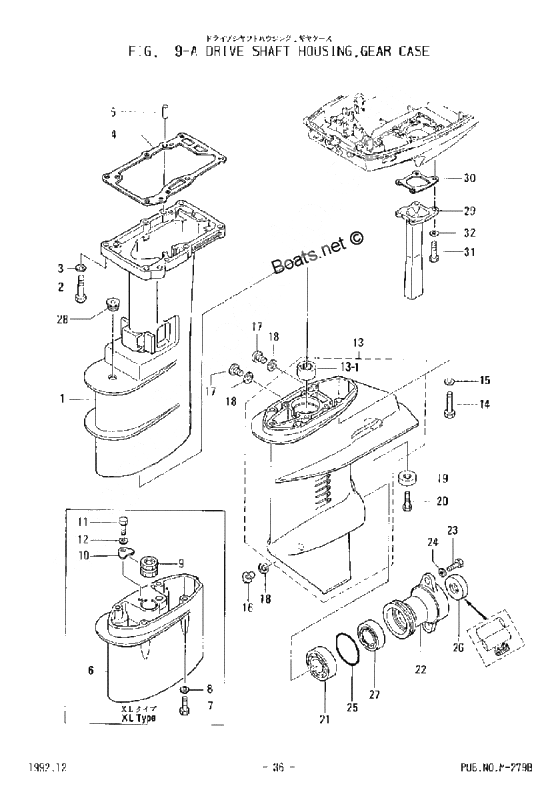

Drive shaft housing, gear case для Tohatsu M8B - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3B2-61020-0 Drive shaft housing s
    Blue, -52085
    Drive shaft housing s
    Blue, -52085
  • 1
    3B2-61030-0 Drive shaft housing l
    Blue, -52085
    Drive shaft housing l
    Blue, -52085
  • 1
    3B2S61030-0 Drive shaft housing l
    Gray, Not Interchangeable, 52086-
    Drive shaft housing l
    Gray, Not Interchangeable, 52086-
  • 1
    3B2-60211-0 Needle bearing 15-21-16
    Needle bearing 15-21-16
  • 2
    910-14063-5 Bolt
    Bolt
  • 3
    940-13060-0 Washer
    Washer
  • 4
    3B2-61012-0 Gasket,Drive Shaft Housing
    Gasket,Drive Shaft Housing
  • 5
    3B2-01111-0 Стопор
    Стопор
  • 6
    3B2-61110-0 Extension housing ul
    XL Type, Blue, -52085
    Extension housing ul
    XL Type, Blue, -52085
  • 6
    3B2S61110-0 Extension housing ul
    XL Type, Gray, Not Interchangeable, 52086-
    Extension housing ul
    XL Type, Gray, Not Interchangeable, 52086-
  • 3B2S61110-2 Extension housing ul
    Extension housing ul
  • 9
    3B2-60003-0 Bushing Drive Shaft Housing
    XL Type
    Bushing Drive Shaft Housing
    XL Type
  • 10
    353-66024-0 Stopper
    XL Type
    Stopper
    XL Type
  • 11
    910121-0612 Bolt
    XL Type
    Bolt
    XL Type
  • 12
    941303-0600 New part
    XL Type
    New part
    XL Type
  • 13
    3B2-60000-0 Gear case ass'y
    Blue, -52085
    Gear case ass'y
    Blue, -52085
  • 13
    3B2S60000-0 Gear case assy
    Gray, Not Interchangeable, 52086-
    Gear case assy
    Gray, Not Interchangeable, 52086-
  • 3AAS60000-0 Gear case assy
    Gear case assy
  • 14
    910-13063-5 Bolt
    Bolt
  • 16
    332-60005-0 Oil plug
    Oil plug
  • 18
    332-60006-0 Gasket (8.1x15.1)
    Gasket (8.1x15.1)
  • 19
    337-60218-1 Anode
    Anode
  • 20
    910103-0616 Bolt
    Bolt
  • 21
    9601-0-6204 Ball Bearing
    Ball Bearing
  • 22
    3B2-60101-0 Housing, Propeller Shaft
    Blue, -52085
    Housing, Propeller Shaft
    Blue, -52085
  • 22
    3B2S60101-0 Housing, Propeller Shaft
    Gray, Not Interchangeable, 52086-
    Housing, Propeller Shaft
    Gray, Not Interchangeable, 52086-
  • 23
    910103-0620 Bolt
    Bolt
  • 25
    345-65015-0 O-Ring
    O-Ring
  • 26
    369-60111-0 Oil Seal
    Oil Seal
  • 27
    9601-0-6004 Ball Bearing
    Ball Bearing
  • 28
    369-66043-0 Grommet, cam rod
    Grommet, cam rod
  • 29
    3B2-02311-0 Exhaust Pipe
    Exhaust Pipe
  • 30
    3B2-02312-0 Gasket exhaust pipe
    Gasket exhaust pipe
