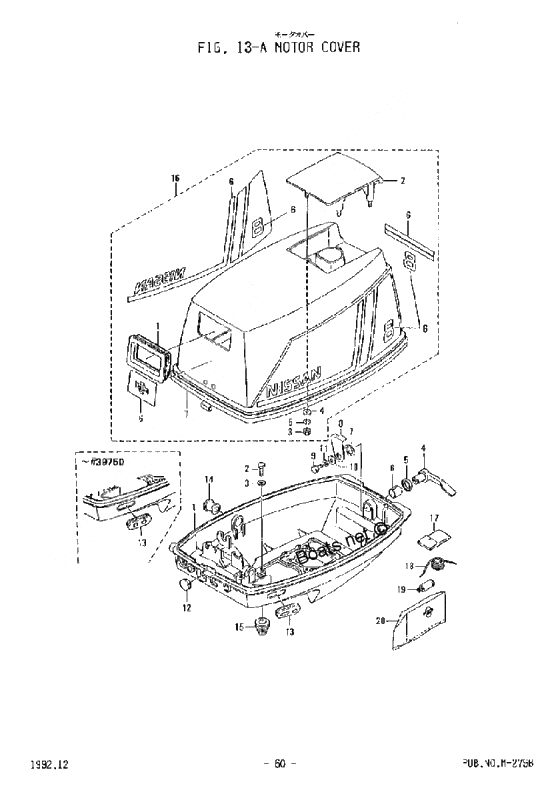

Motor cover для Tohatsu M8B - 2002 года выпуска
-
№АртикулНазвание
-
13B2-67100-0 Motor cover lower
-36550Motor cover lower
-36550 -
13B2-67100-1 Motor cover lower
Blue, Not Interchangeable, 36551-52085Motor cover lower
Blue, Not Interchangeable, 36551-52085 -
13B2-67503-0 Seal rubber staterSeal rubber stater
-
13B2S67100-1 Motor cover lower
Gray, Not Interchangeable, 52086-Motor cover lower
Gray, Not Interchangeable, 52086- -
23B2-67521-0 Tilt handleTilt handle
-
2910114-0620 BoltBolt
-
3930103-0600 NutNut
-
3940-13060-0 WasherWasher
-
3940103-0600 WasherWasher
-
4369S67141-1 Hook lever
Gray, Not Interchangeable, 52086-Hook lever
Gray, Not Interchangeable, 52086- -
4369-67141-0 Hook lever
Blue, -52085Hook lever
Blue, -52085 -
5338-67147-0 New part
тИЕ13.8 - тИЕ22 - 3.7mmNew part
тИЕ13.8 - тИЕ22 - 3.7mm -
6369-67105-0 BushingBushing
-
7941403-1400 New partNew part
-
7941-43140-0 Wave WasherWave Washer
-
73B2-67501-0 Seal rubber, motor cover assySeal rubber, motor cover assy
-
8369-67142-0 Cover HookCover Hook
-
9910103-6612 BoltBolt
-
9910121-0612 BoltBolt
-
10332-66308-0 Washer, fuel tankWasher, fuel tank
-
103C8-66308-0 New partNew part
-
113C8-67146-0 WasherWasher
-
11941303-0600 New partNew part
-
12345-67117-0 New partNew part
-
13353-67162-0 Grommet, Bater Cord
8B #39751-Grommet, Bater Cord
8B #39751- -
13336-67162-1 Grommet, Battery Cord
-39750Grommet, Battery Cord
-39750 -
143B2-67187-0 Grommet Throttle Shaft
for MF/EF TypeGrommet Throttle Shaft
for MF/EF Type -
15345-66226-0 Grommet, 17-3Grommet, 17-3
-
163B3-67500-0 Motor cover upper assy
Blue, -52085Motor cover upper assy
Blue, -52085 -
16NB3-67500-0 Motor cover upper assy
Gray, Not Interchangeable, 52086-Motor cover upper assy
Gray, Not Interchangeable, 52086- -
163B2S67500-0 Motor cover upper assy
UniqueMotor cover upper assy
Unique -
16-13B2-67503-0 Seal rubber staterSeal rubber stater
-
16-23B2-67521-0 Tilt handleTilt handle
-
16-3930103-0600 NutNut
-
16-5941303-0600 New partNew part
-
16-63B2-67501-0 Seal rubber, motor cover assySeal rubber, motor cover assy
-
16-73B2S87801-0 Decal set for m8b
, UniqueDecal set for m8b
, Unique -
17332-72100-0 Tool assyTool assy
-
17369-72025-0 Label,spark plugLabel,spark plug
-
18312-72201-0 Safety RopeSafety Rope
-
19336-60007-0 New partNew part
