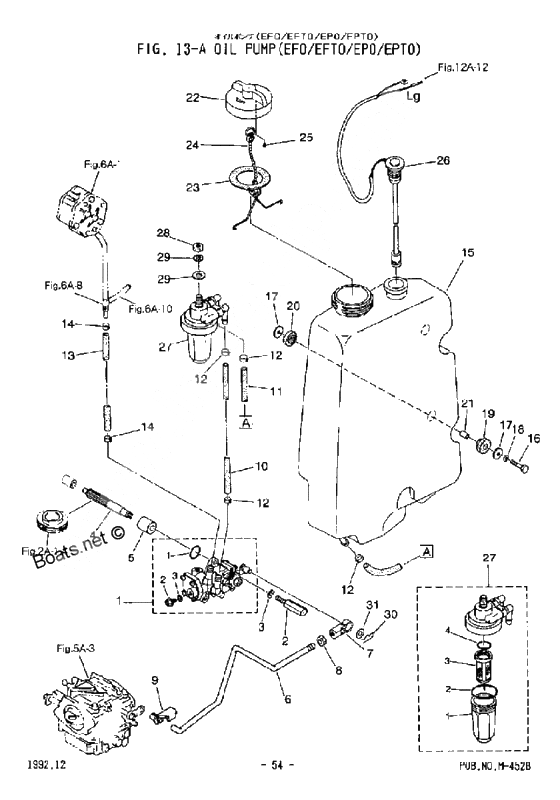

Oil pump (efo-efto-epo-epto) для Tohatsu M70B - 2002 года выпуска
-
№АртикулНазвание
-
0099AA-6-0150 Oil pipe (1 ea.=1.5 meter/59.05 inches)
NS60B,NS70BOil pipe (1 ea.=1.5 meter/59.05 inches)
NS60B,NS70B -
99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)Oil pipe (1 ea.=1.5 meter/59.05 inches)
-
003F3-71020-0 Oil Level Sensor
NS60B,NS70BOil Level Sensor
NS60B,NS70B -
003B7-09065-0 Driven gear, oil pump
NS60B,NS70BDriven gear, oil pump
NS60B,NS70B -
003B7-06920-0 Mount Rubber, 8.5-14-2.5
NS60B,NS70BMount Rubber, 8.5-14-2.5
NS60B,NS70B -
00940-13080-0 Washer
NS60B,NS70BWasher
NS60B,NS70B -
003F3-09000-1 Oil Pump Ass'y
NS60B,NS70BOil Pump Ass'y
NS60B,NS70B -
003B7-09054-0 Clip @ 9.5
NS60B,NS70BClip @ 9.5
NS60B,NS70B -
3AB-35143-0 Clip @ 9.5Clip @ 9.5
-
003C7-71030-0 Filter Ass'y
NS60B,NS70BFilter Ass'y
NS60B,NS70B -
003B7-09069-0 Bushing
NS60B,NS70BBushing
NS60B,NS70B -
00346-67114-0 Spacer 6.2-9-15.7
NS60B,NS70BSpacer 6.2-9-15.7
NS60B,NS70B -
00951-63050-0 R-pin, d=5
NS60B,NS70BR-pin, d=5
NS60B,NS70B -
0099AA-4-0085 Oil pipe c
NS60B,NS70BOil pipe c
NS60B,NS70B -
003F3-09053-1 Link rod oil pump
NS60B,NS70BLink rod oil pump
NS60B,NS70B -
003C8-71015-0 Cap Oil Tank
NS60B,NS70BCap Oil Tank
NS60B,NS70B -
003B7-05245-0 Washer
NS60B,NS70BWasher
NS60B,NS70B -
003C7-09056-0 Clip 8.5
NS60B,NS70BClip 8.5
NS60B,NS70B -
003B7-05243-0 New part
NS60B,NS70BNew part
NS60B,NS70B -
003C8-71016-0 Gasket 36-52-2
NS60B,NS70BGasket 36-52-2
NS60B,NS70B -
003F3-71010-0 Oil Tank
NS60B,NS70BOil Tank
NS60B,NS70B -
003B7-63733-0 Rod Snap, 5-3
NS60B,NS70BRod Snap, 5-3
NS60B,NS70B -
003C8-71017-0 Hook Tank Cap
NS60B,NS70BHook Tank Cap
NS60B,NS70B -
003C8-09050-1 Bolt oil pump
NS60B,NS70BBolt oil pump
NS60B,NS70B -
00346-67115-0 Washer
NS60B,NS70BWasher
NS60B,NS70B -
0099AA-6-0450 Oil pipe (1 ea.=1.5 meter/59.05 inches)
NS60B,NS70BOil pipe (1 ea.=1.5 meter/59.05 inches)
NS60B,NS70B -
99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)Oil pipe (1 ea.=1.5 meter/59.05 inches)
-
003C8-71018-0 Check Valve Oil Tank
NS60B,NS70BCheck Valve Oil Tank
NS60B,NS70B -
00941303-0600 New part
NS60B,NS70BNew part
NS60B,NS70B -
00346-67113-0 Mount Rubber
NS60B,NS70BMount Rubber
NS60B,NS70B -
00930-16080-0 Nut
NS60B,NS70BNut
NS60B,NS70B -
013B7-09002-0 O-Ring
NS60B,NS70BO-Ring
NS60B,NS70B -
013B7-02237-0 Cup
NS60B,NS70BCup
NS60B,NS70B -
023B7-09004-0 Bolt, Air Vent
NS60B,NS70BBolt, Air Vent
NS60B,NS70B -
023B7-02235-0 O-Ring A
NS60B,NS70BO-Ring A
NS60B,NS70B -
033B7-09006-0 Washer
NS60B,NS70BWasher
NS60B,NS70B -
033C7-71033-0 Filter
NS60B,NS70BFilter
NS60B,NS70B -
043B7-02236-0 O???? b
NS60B,NS70BO???? b
NS60B,NS70B
