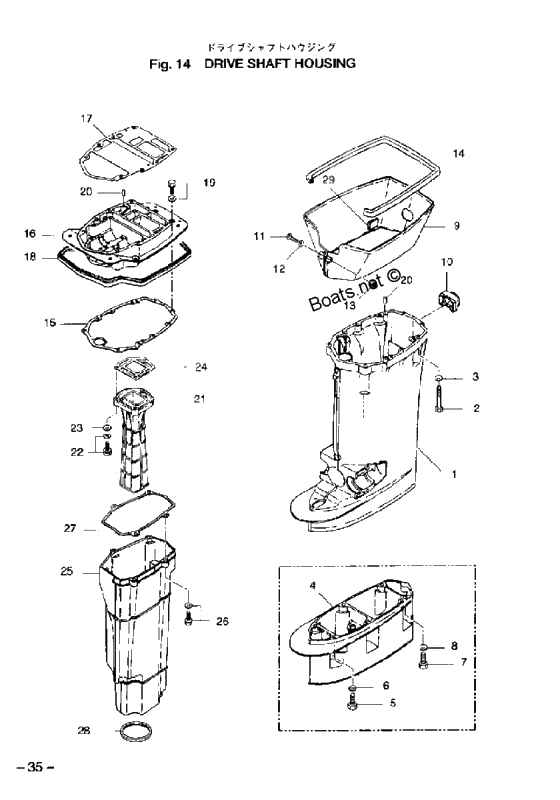

Drive shaft housing для Tohatsu M70B - 2002 года выпуска

  • №
    Артикул
    Название
  • 00
    916103-0835 Bolt
    NS60B,NS70B
    Bolt
    NS60B,NS70B
  • 00
    940-13080-0 Washer
    NS60B,NS70B
    Washer
    NS60B,NS70B
  • 00
    3F3-01303-0 Gasket, engine base
    NS60B,NS70B
    Gasket, engine base
    NS60B,NS70B
  • 00
    940-13050-0 Washer
    NS60B,NS70B
    Washer
    NS60B,NS70B
  • 00
    941303-0800 Spring Washer
    NS60B,NS70B
    Spring Washer
    NS60B,NS70B
  • 00
    3F3-61110-0 Extension housing lx
    NS60B,NS70B FOR TRANSOM XL-BLUE
    Extension housing lx
    NS60B,NS70B FOR TRANSOM XL-BLUE
  • 00
    3F3-67116-0 Seal Rubber Engine Base
    NS60B,NS70B
    Seal Rubber Engine Base
    NS60B,NS70B
  • 00
    930403-0500 Nylon Nut
    NS60B,NS70B
    Nylon Nut
    NS60B,NS70B
  • 00
    3F3-02312-0 Gasket exhaust pipe
    NS60B,NS70B
    Gasket exhaust pipe
    NS60B,NS70B
  • 00
    353-61113-1 Bolt, gear case
    NS60B,NS70B FOR TRANSOM XL
    Bolt, gear case
    NS60B,NS70B FOR TRANSOM XL
  • 00
    910-13063-5 Bolt
    NS60B,NS70B
    Bolt
    NS60B,NS70B
  • 00
    3F3-61213-0 Seal Rubber Splash Pan
    NS60B,NS70B
    Seal Rubber Splash Pan
    NS60B,NS70B
  • 00
    3F3-61180-0 Exhaust Housing
    NS60B,NS70B
    Exhaust Housing
    NS60B,NS70B
  • 00
    3B7-60001-1 New part
    NS60B,NS70B FOR TRANSOM XL
    New part
    NS60B,NS70B FOR TRANSOM XL
  • 00
    940-13060-0 Washer
    NS60B,NS70B
    Washer
    NS60B,NS70B
  • 00
    3F3-61012-0 Gasket drive shaft housing
    NS60B,NS70B
    Gasket drive shaft housing
    NS60B,NS70B
  • 00
    3F3-61181-0 Gasket exhaust housing
    NS60B,NS70B
    Gasket exhaust housing
    NS60B,NS70B
  • 00
    3F3-61210-0 Splash pan
    NS60B,NS70B-BLUE
    Splash pan
    NS60B,NS70B-BLUE
  • 00
    345-01111-0 Dowel Pin 6-12
    NS60B,NS70B
    Dowel Pin 6-12
    NS60B,NS70B
  • 00
    3F3-61192-0 Drive shaft housing l
    NS60B,NS70B-BLUE
    Drive shaft housing l
    NS60B,NS70B-BLUE
  • 00
    3F3-01301-0 Engine base
    NS60B,NS70B-BLUE
    Engine base
    NS60B,NS70B-BLUE
  • 00
    3F3-61182-0 Grommet exhaust housing
    NS60B,NS70B
    Grommet exhaust housing
    NS60B,NS70B
  • 00
    3F3S61210-0 Splash pan
    NS60B,NS70B-GRAY
    Splash pan
    NS60B,NS70B-GRAY
  • 00
    3F3-02311-0 Exhaust Pipe
    NS60B,NS70B
    Exhaust Pipe
    NS60B,NS70B
  • 00
    3A3-61017-1 Bolt
    NS60B,NS70B
    Bolt
    NS60B,NS70B
  • 00
    3F3S01301-0 Engine base
    NS60B,NS70B-GRAY
    Engine base
    NS60B,NS70B-GRAY
  • 00
    3C7-61216-0 Set rubber,splash pan
    NS60B,NS70B
    Set rubber,splash pan
    NS60B,NS70B
  • 00
    3F3-61212-0 Grommet Splash Pan
    NS60B,NS70B
    Grommet Splash Pan
    NS60B,NS70B
  • 2
    3A3-61017-2 Bolt 8-100
    Bolt 8-100
  • 3
    940203-0800 Washer
    Washer
  • 7
    3B7-60001-2 Bolt, 10-40
    FOR TRANSOM XL
    Bolt, 10-40
    FOR TRANSOM XL
  • 9
    3F3S61210-0 Splash pan
    Splash pan
  • 10
    3F3-61212-0 Grommet Splash Pan
    Grommet Splash Pan
  • 12
    940103-0500 Washer
    Washer
  • 13
    930403-0500 Nylon Nut
    Nylon Nut
  • 15
    3F3-61012-0 Gasket drive shaft housing
    Gasket drive shaft housing
  • 16
    3F3S01301-0 Engine base
    Engine base
  • 17
    3F3-01303-1 Gasket engine base
    Gasket engine base
  • 18
    3F3-67116-0 Seal Rubber Engine Base
    Seal Rubber Engine Base
  • 19
    910103-5630 Bolt
    Bolt
  • 20
    345-01111-0 Dowel Pin 6-12
    Dowel Pin 6-12
  • 21
    3F3-02311-0 Exhaust Pipe
    Exhaust Pipe
  • 22
    910103-6835 Bolt
    Bolt
  • 23
    940103-0800 Washer -> 940113-0800
    Washer -> 940113-0800
  • 24
    3F3-02312-0 Gasket exhaust pipe
    Gasket exhaust pipe
  • 25
    3F3-61180-0 Exhaust Housing
    Exhaust Housing
  • 27
    3F3-61181-0 Gasket exhaust housing
    Gasket exhaust housing
  • 28
    3F3-61182-0 Grommet exhaust housing
    Grommet exhaust housing
  • 49
    3C7-61216-0 Set rubber,splash pan
    Set rubber,splash pan
